• Model NO.：JT-102SY
• Trademark：TOP
• Origin：Zhejiang, China (Mainland)
• HS Code：9031809090
• Production Capacity：1000 Set,Sets Per Month

Basic Info.

Model NO. JT-102SY Trademark TOP Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 1000 Set/Sets Per Month

Product Description

Product Manual

1. Testing scope requirements: livestock and poultry, eggs, aquatic products, feed
2. Test item requirements: antibiotics, hormones, and other drug residues
3. Testing method requirements: immune colloidal gold method
4. Detection signal processing method requirements: high-definition CCD image scanning technology
5. Test item curve increase and decrease requirements: able to add and delete standard curves of different test items and curve import function
6. Detection function: automatically analyze valid cards and invalid cards
7. Judgment function: qualitative and quantitative data judgment
8. Instrument structure requirements: engineering plastic shell, portable design
9. Instrument display requirements: 8-inch or above color touch screen
10. Hardware requirements: Intel chip, quad-core or above processor, no less than 2G memory, graphics card, no less than 32G storage capacity.
11. Operating system requirements: windows8 or above operating system, with office software
12. Input function: intelligent Chinese and English input, handwriting input function. With video learning function.
13. Detection speed: fast detection, the detection process is completed within 20-40 minutes, and the detection result and content are automatically judged.
14. Data storage: With a large-capacity data storage function, it can save inspection images and results. With a 32G storage capacity, it can save more than 100,000 data.
15. Data processing function: The instrument has data reading, processing, exporting, and transmitting functions. Automatically save test results and colloidal gold images, and test records can be imported into U disk.
16. Communication networking requirements: with wired and wireless WiFi, Bluetooth, 3G/4G wireless network communication functions, wireless Internet access, data network transmission, and automatic data connection to the food safety supervision platform can be realized.
17. Printing function: The instrument has an automatic printer function to realize the printing of test report data.
18. Measuring speed: <0.5s
19. Detection output: color detection, CT ratio detection, T-line detection, C-line detection, concentration display.
20. Test items: Salbutamol, ractopamine, phenylethanolamine A, furazolidone, nitrofurantoin, nitrofurazone, furantoin, malachite green, chloramphenicol, fluoroquinolone, tetracycline, florfenicol, pentachloro Sodium phenate, sulfa, oxytetracycline, enrofloxacin, ofloxacin, norfloxacin, cephalexin, lactams, nitroimidazole (metronidazole), gentamicin, streptomycin, Trimethoprim, Olaquindox, Erythromycin, Penicillin, Quinoethanol Metabolites, Lincomycin, Neomycin, Kanamycin, Tylosin, Tilmicosin, Thiamphenicol, Melamine, etc.
21. Communication interface: USB, wireless communication: wifi and Bluetooth
22. Power consumption: less than 10W, standby time is not less than 24 hours
23. Power supply: 220V, built-in lithium battery power supply



Configuration


Serial number	Item name	Quantity

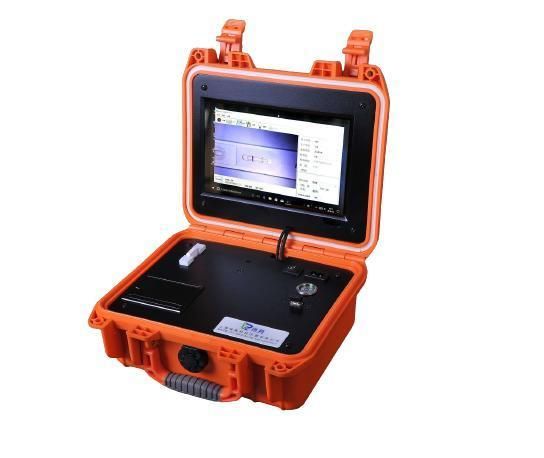

1	JT-102SY Veterinary Drug Residue Detector	1 set
2	Centrifuge 50mlX6	1 set
3	Concentrator	1 set
4	Sample crusher	1 set
5	Timer	1 piece
6	Mixer	1 set
7	Constant temperature water bath	1 set
8	1000~5000μL pipette	1 piece
9	20~200μL pipette	1 piece
10	1000~5000μL pipette tips	10 pieces
11	200μL pipette tip	50 pieces
12	15ml centrifuge tube	10 pieces
13	50ml centrifuge tube	10 pieces
14	15ml centrifuge tube rack	1 piece
15	50ml centrifuge tube rack	1 piece
16	Electronic balance	1 set
17	Manual	1 copy
18	Furazolidone Test Card	10 pieces
19	Chloramphenicol Test Card	10 pieces
20	Fluoroquinolone Test Card	10 pieces
21	Sulfa Test Card	10 pieces
22	Tetracycline Test Card	10 pieces
23	Ractopa test card	10 pieces
