• Model NO.：JT-102M
• Trademark：TOP
• Origin：Zhejiang, China (Mainland)
• HS Code：9031809090
• Production Capacity：1000 Set,Sets Per Month

Basic Info.

Model NO. JT-102M Trademark TOP Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 1000 Set/Sets Per Month

Product Description

Product Manual

1. Testing scope requirements: grain, edible oil, condiments, feed
2. Test item requirements: aflatoxin B1, zearalenone, vomiting toxin, fumonisin, T2 toxin, aflatoxin M1
3. Testing method requirements: immune colloidal gold method
4. Detection signal processing method requirements: high-definition CCD image scanning technology
5. Test item curve increase and decrease requirements: able to add and delete standard curves of different test items and curve import function
6. Detection function: automatically analyze valid cards and invalid cards
7. Judgment function: qualitative and quantitative data judgment
8. Instrument structure requirements: engineering plastic shell, portable design
9. Instrument display requirements: 8-inch or above color touch screen
10. Hardware requirements: Intel chip, quad-core or above processor, no less than 2G memory, graphics card, no less than 32G storage capacity.
11. Operating system requirements: windows8 or above operating system, with office software
12. Input function: intelligent Chinese and English input, handwriting input function. With video learning function.
13. Detection speed: fast detection, the detection process is completed within 20-40 minutes, and the detection result and content are automatically judged.
14. Data storage: With a large-capacity data storage function, it can save inspection images and results. With a 32G storage capacity, it can save more than 100,000 data.
15. Data processing function: The instrument has data reading, processing, exporting, and transmitting functions. Automatically save test results and colloidal gold images, and test records can be imported into U disk.
16. Communication networking requirements: with wired and wireless WiFi, Bluetooth, 3G/4G wireless network communication functions, wireless Internet access, data network transmission, and automatic data connection to the food safety supervision platform can be realized.
17. Printing function: The instrument has an automatic printer function to realize the printing of test report data.
18. Measuring speed: <0.5s
19. Detection output: color detection, CT ratio detection, T-line detection, C-line detection, concentration display.
20. Detection limit: Aflatoxin B1: 5ppb; Aflatoxin M1: 0.5ppb; Ochratoxin A: 5ppb; Fumonisin B1: 200ppb; Vomitin: 1000ppb; T2 toxin 50ppb; Zearalenone: 50ppb
21. Communication interface: USB, wireless communication: wifi and Bluetooth
22. Power consumption: less than 10W, standby time is not less than 24 hours
23. Power supply: 220V, built-in lithium battery power supply


Configuration


Serial number	Item name	Quantity

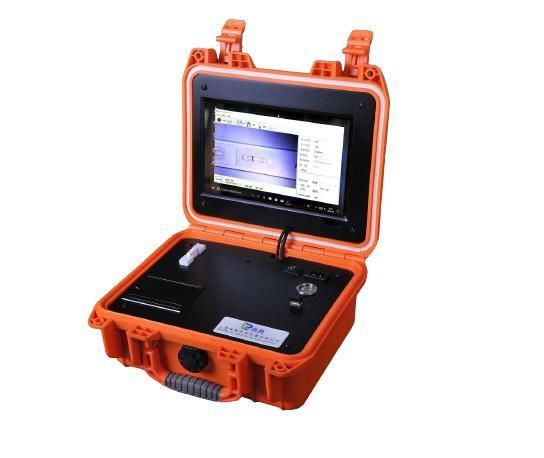

1	JT-102M Mycotoxin Rapid Detector	1 set
2	Bluetooth mouse	1 piece
3	USB data cable	1 piece
4	Timer	1 piece
5	Sample crusher	1 set
6	Mixer	1 set
7	Centrifuge (mini)	1 set
8	Electronic balance	1 set
9	1000~5000μL pipette	1 piece
10	50~250μL pipette	1 piece
11	Aflatoxin B1 Test Card	20 tablets
12	Vomiting Toxin Test Card	20 tablets
13	Manual	1 copy
