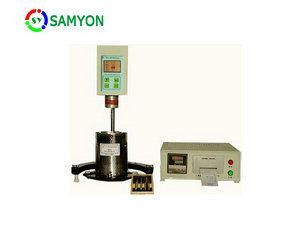

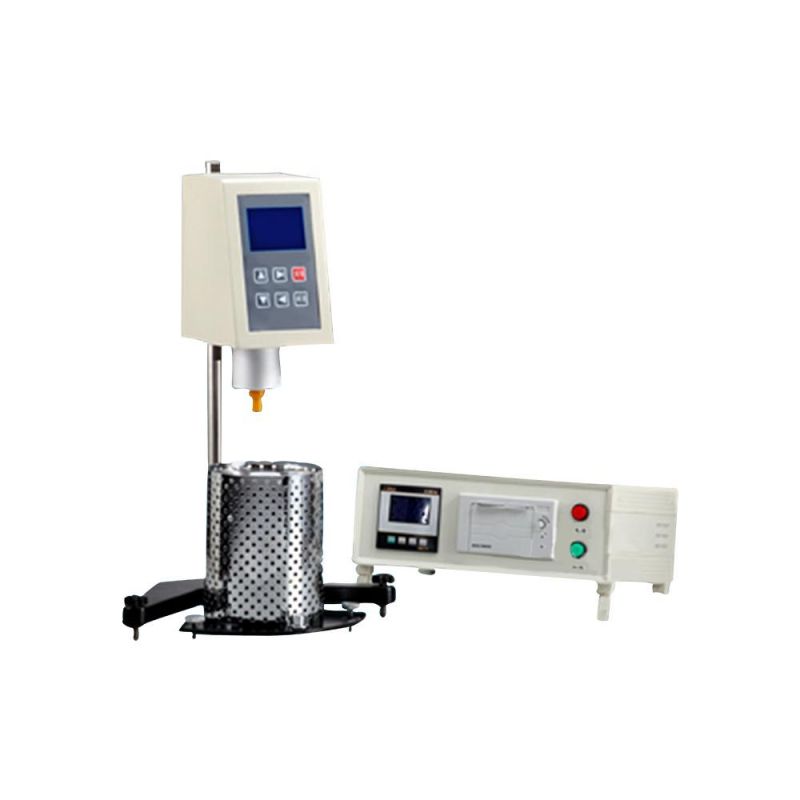

Ndj-1d Laboratory Instrument Brookfield Viscometer
Beijing Samyon Instruments Co., Ltd.- Measurement Range：10 MPa.S~2×106 MPa.S
- Measuring Accuracy：+,-2% (F.S)
- Spindles：No.21. 27. 28 and 29 Spindles
- Rotation Speed：0.5, 1, 2, 5, 10, 20, 50 Rpm
- Temperature Control Range：45 Oc~200 Oc
- Temperature Control Accuracy：+,-0.1 Oc
Base Info
- Model NO.：NDJ-1D
- Transport Package：Carton Case
- Specification：SGS
- Trademark：SAMYON
- Origin：Cn
- HS Code：903180
- Production Capacity：100sets Per Month
Description
1. Measurement range: 100 mPa·s~2×106mPa·s (If use the N0.30 spindle, the measurement range can be extended to 4×106mPa·s);
2. Spindle: No.21. 27. 28 and 29 spindles (The No.30 spindle is optional).
3. Speed: 0.5, 1, 2, 5, 10, 20, 50 RPM
4. Measurement error: ±2% (F·S).If use the No.30 spindle, it will be ±3% (F·S).
5. Temperature control range: 45ºC~200ºC;
6. Temperature control accuracy: ±0.1ºC;
7. Cubage of sample cylinder: 20 ml;
8. Power supply: AC 220 V±10%,50Hz;
9. Ambient temperature: 5ºC~35ºC (If it is near the controlling temperature, please use a air conditioner to make sure that the ambient temperature is about 5 ºC lower than the controlling temperature of heater.
10. Relative humidity: ≤80%
