• Model NO.：BKN-984
• Frequency：50±1HZ
• Performance：Semi-automatic
• Function：Storage, Cleared
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Customized
• Product Name：Kjeldahl Nitrogen Analyzer
• Packing Size：655*528*880mm
• Gross Weight：45kg
• External Size：400*385*735mm
• Power Consumption：2000W
• Water Consumption：1.5L,Min
• Ambient Temperature：5~40ºC
• Ambient Humidity：80%
• Measure Range：0.1mg~200mg
• Analysis Time：5~10min
• Recovery Ratio：≥99.5%
• Transport Package：Wooden Case or Carton Package
• Specification：400*385*735mm
• Trademark：BIOBASE
• Origin：China
• Production Capacity：10000 Unit,Units Per Year

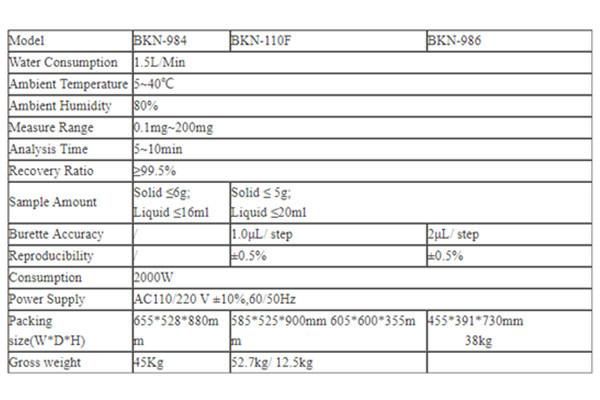

Model

BKN-984

Power Supply

220 V AC ±10%, 50Hz

Power Consumption

2000W

Water Consumption

1.5L/Min

Ambient Temperature

5 - 40ºC

Ambient Humidity

80%

Net Weight

30kg

Dimension

400*385*735mm

Measure Range

0.1mg - 200mg

Analysis Time

5 - 10min

Recovery

≥99.5%

Samples Available

Solid ≤6g;

Liquid ≤16ml

Features for BKN-984 Analysis Instrument Kjeldahl Auto Analyzer

1. 4.3 inch LCD display.

2. Manual/automatic mode can be switched freely.

3. Automatic accurate distribute alkali and boric acid solution.

4. Automatic fault detection function, audio and visual alarm system.

5. Tubes and pipes automatic emptying.

6. Multi-protection function, such as safety door, tube position protection, cooling water testing protection, etc.

Features for BKN-110F and BKN-986

1. Large LCD touch screen.

2. Colorimetric titration device.

3. Sample method can be edited and stored.

4. Automatic distillation, titration, calculation, printing, drain and cleaning function.

5. Dual distillation mode, can adjust the sequence of solution adding.

6. Standard built-in printer, optional USB and RS-485 interface for BKN-110F Model.

Optional Accessories:

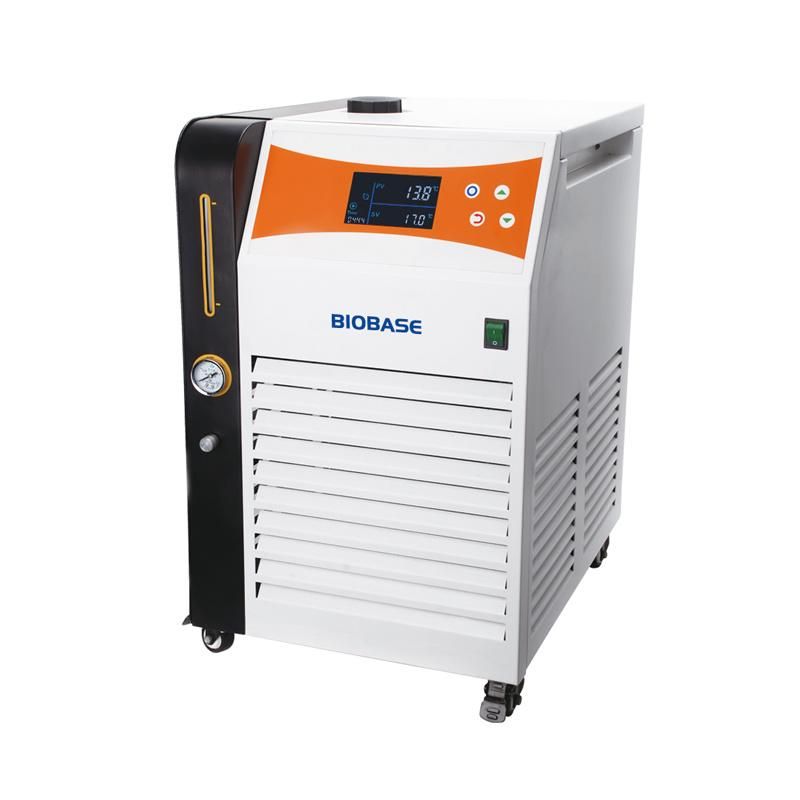

Circular Chiller

Circular Chiller

Temperature range: 5.0 - 40ºC;

Temperature accuracy: ±0.3ºC;

Pump pressure: 0 - 1.5bar, adjustable;

water flow: 20L/min;

Dimension: 500*400*644mm.

Standard accessories:

Digestion tube

280ml

Digestion tube

300ml

Alkali tank

3000ml

Receiver solution tank

3000ml

Water tank

3000ml

Alkali tank

6000ml

Receiver solution tank

6000ml

Water tank

6000ml

Printing paper

L57xΦ33

BIOBASE, Founded in 1999 and been through high and stable development for 20 years.

Main Products: Biological Safety Cabinet, Fume Hood, Laminar Flow Clean Bench, Refrigerator, Incubator, Autoclave, Centrifuge etc.

Overseas Office: USA Branch Office, Indian Branch Office, Dubai Branch Office.




NCF & ISO & CE & EN & MET

    Wooden package are commonly used. Let us know if you have special packaging requirements. We will make sure safe arrival and receipt of your goods.
