• Model NO.：ZDYG-3088
• Overall Dimension：146*146*150mm
• Dimension of The Hole：138*138mm
• Power Supply：220V+,-22V, 50Hz+,-1Hz
• Accuracy：+,-1%
• Installation：Wall Hanging, Flushbonading Type
• Communication Interface：RS485(Optional)
• Transport Package：Carton Box
• Trademark：BOQU
• Origin：China
• HS Code：9027809900
• Production Capacity：500,M

Basic Info.

Model NO. ZDYG-3088 Overall Dimension 146*146*150mm Dimension of The Hole 138*138mm Power Supply 220V+/-22V, 50Hz+/-1Hz Accuracy +/-1% Installation Wall Hanging/ Flushbonading Type Communication Interface RS485(Optional) Transport Package Carton Box Trademark BOQU Origin China HS Code 9027809900 Production Capacity 500/M

Product Description

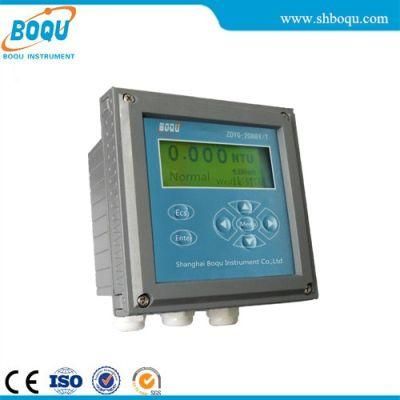

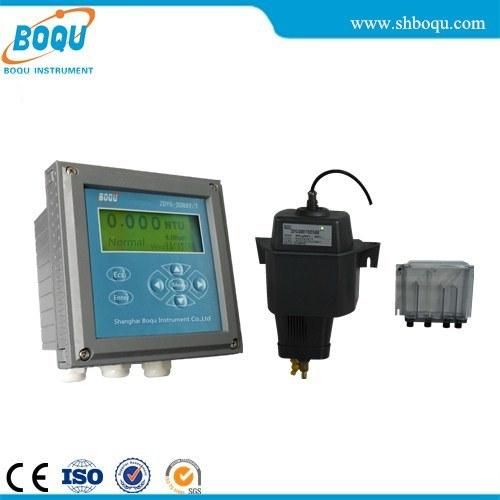

                               ZDYG-3088 Industrial Online Turbidity Sensor

ZDYG-3088 Industrial Online Turbidity Meter is used for online measurement of the scattering level

of the light generated by the insoluble particulate matters suspended in the non-transparent liquid,

and it can quantitatively characterize the content of the suspended particulate matters. It can be widely

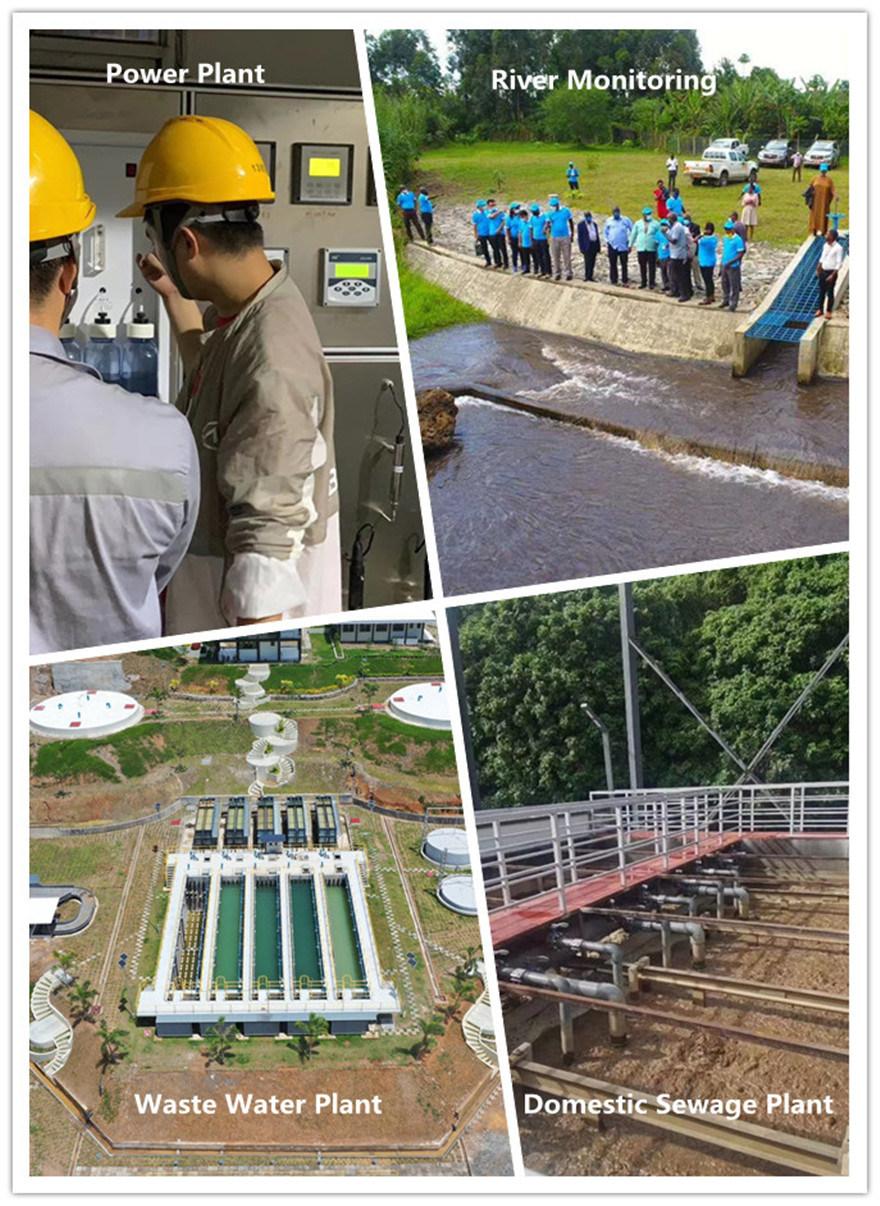

used for the field on-line turbidity measurement in power plants, pure water plants, tap water plants,

sewage treatment plants, beverage plants, environmental protection departments, industrial water, liquor

industry, pharmaceutical industry, epidemic prevention departments, hospitals and other departments.



Technical Indexes:

1.Measuring range: 0~20.00, 0~200.00,0~2000,

2.Accuracy: <FS (full scale) ± 5%

3. Reproducibility: <FS ± 1%

4. Resolution: 0.001NTU/0.01NTU/0.1NTU

5.Hourly drift: <0.1NTU

6. Sampling volume: 200ml continuous

7.Applicable temperature: 0~40 ºC

8. Relative humidity: <70% RH

9. Supply voltage: 200~240V 50HZ,DC24V(optional)

10. Power consumption: <25W

11. Weight: 12kg


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: We can offer the sample, it is extra

Q: What is your terms of payment ?
A: 100% T/T in advance ,balance before shippment.
