• Model NO.：YT-SF110
• Trademark：YANTE
• Origin：Hangzhou
• HS Code：9027809900

Basic Info.

Model NO. YT-SF110 Trademark YANTE Origin Hangzhou HS Code 9027809900

Product Description

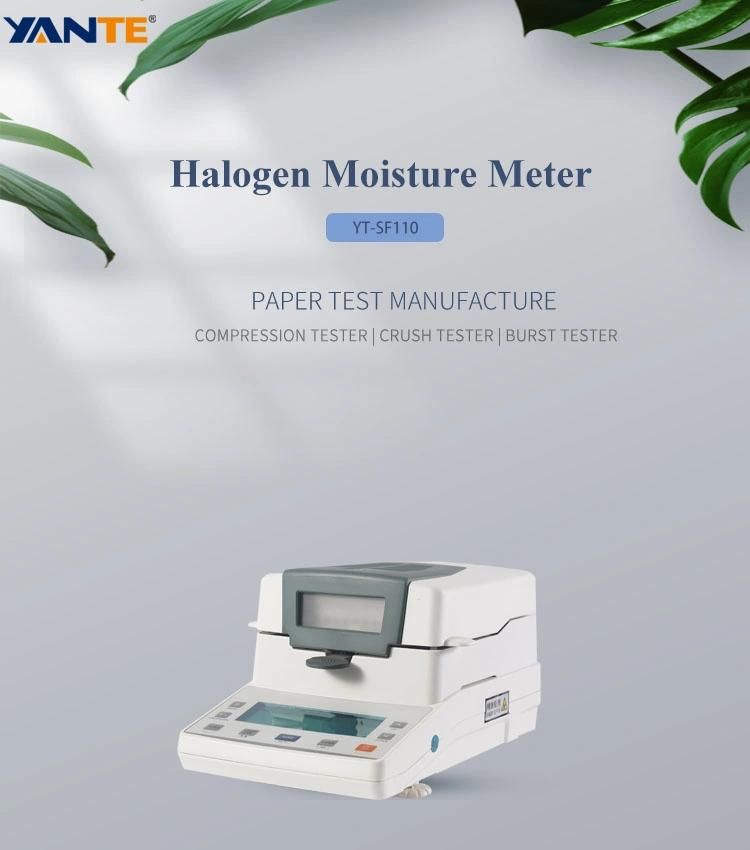

Fast moisture tester is newly researched and developed by our company, adopting the highly effective drying device qualified circular halogen lamp, can be used to dry the samples evenly. The water in the sample is dried constantly. At the whole test, this tester can display the testing result at the real time: sample weight, water constant, testing time, heating temperature etc. Normally one test can be done within several minutes.

Application Range

Paper. paper board. Corrugated cardboard, Corrugated Package.

Technical Parameters

2.1 Moisture testing range: 0.01%-100%
2.2 Max. weighing capacity: 110g
2.3 Weighing accuracy: 0.005g
2.4 Resolution of moisture display: 0.01%
2.5 Heating temperature: 40-200degree
2.6 Display: Moisture, testing time, temperature, weight
2.7 LCD screen
2.8 Weighing sensor: made in Germany, high accuracy
2.9 Power supply: 220v±10% 50HZ
2.10 Weight plate: diameter 90mm
2.11 Working environment temperature: 5-35degree is the best
2.12 Outer dimension: 380*200*180mm
2.13 Net weight: 5.8kg.

Product Features

Smart light: FDG1, weighing about 200 grams, length 160mm, small and easy to carry, suitable for field use.
Non-destructive testing: FDG1 abolished an acupuncture treatment, just to gently probe the surface of contact paper that can show the moisture content of paper, and will not damage the paper.
Intuitive and convenient: FDG1 and directly to the rapid determination of the figures.
Simple and quick: FDG1 set up the types of amendments to ensure that equipment for all types of paper and accurate determination of moisture content.
Advanced Japanese sensor,
Wide measurement, portable, high accuracy,
 High frequency electromagnetic induction type.
