• Model NO.：TP-2B
• Trademark：TOP
• Origin：Chongqing, China
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. TP-2B Trademark TOP Origin Chongqing, China Production Capacity 200 Sets/Month

Product Description

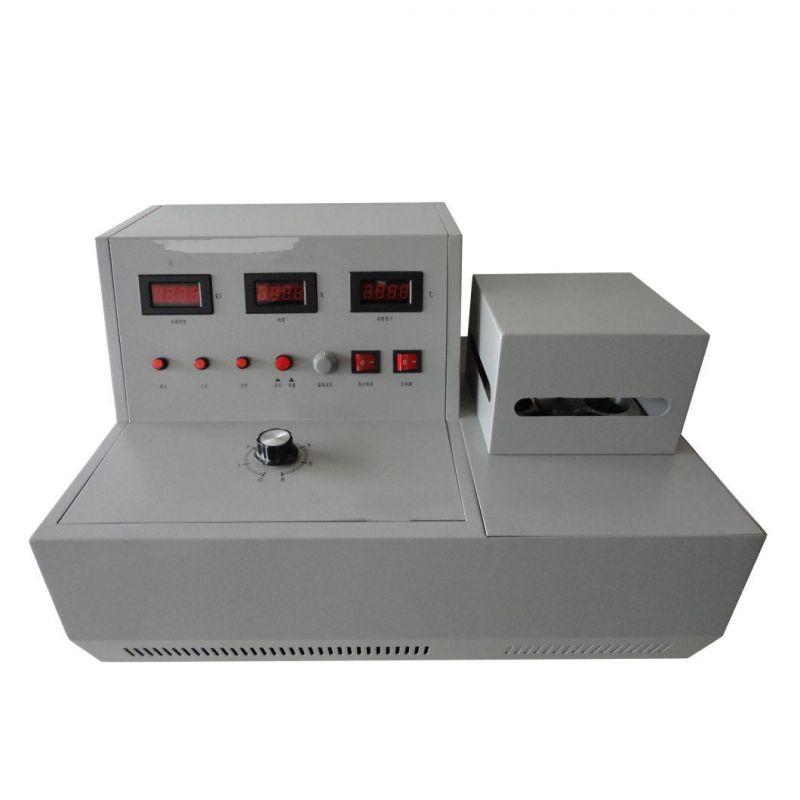

TP-2B Oil Demulsifier and electric dehydration performance tester

Uses:

Demulsifier plays an important role in the refinery process of refinery. The effect of demulsification is directly related to the desalting (dehydration) effect, and the same demulsifier is used for crude oil of different nature, and the demulsification effect is also different. In addition, the nature of the crude oil supplied to the refinery is also constantly changing. In order to ensure the stability of the desalination (dehydration) effect, it is necessary to continuously adjust the measurement of the demulsifier and even change the variety of the demulsifier. Therefore, the selection of the demulsifier is an indispensable means of the refinery process.

At present, each refinery adopts the thermochemical selection method to screen the demulsifier, and the slow speed and the electric desalination production process have a large gap, and the selection results cannot meet the production needs.

The instrument is based on electrochemical methods and supplemented by thermochemical methods. The appropriate amount of crude oil is first heated and then the demulsifier is selected under the action of an electric field.It is similar to the actual working conditions of electric desalination. The results of the selection are more accurate and reliable than the thermochemical method.The results of the selection are more accurate and reliable than the thermochemical method. Six kinds of demulsifiers can be selected at the same time, or six different dosages of the same demulsifier can be selected. The selection speed is fast (about three times that of the thermochemical method), and the power consumption is small, energy consumption is one tenth of the thermochemical method.

The instrument has adjustable voltage and free temperature setting. Easy to operate, fast, compact and small. Easy to carry and suitable for laboratory use. It is an ideal instrument for evaluating demulsifiers.



Technical indicators

1. Input voltage: AC220V~10% 50Hz

2, Output voltage: 0 ~ 6000V continuously adjustable

3, Output AC current: 0 ~ 100mA

4, Heater power: 600W

5, The whole machine power: no more than 1000W

6, Heater temperature automatic control range: between room temperature ~ 180 ° C can be arbitrarily set (more than 95 ° C, please use high temperature metal bottles)

7, Temperature control accuracy ± 1 ° C

8. Warm-up time: When the temperature is preset at 75 °C, the warm-up time is about 15 minutes (the warm-up time varies slightly with the room temperature)

9. Electric field strength adjustment: coarse adjustment output AC voltage Finely adjust the distance between the inner and outer electrodes of the coaxial electrode

10, The instrument uses ambient temperature: 0 ° C ~ +40 ° C

11, Relative humidity: no more than 85%

12. Dimensions: 400 (length) × 284 (width) × 292 (height)

13, Weight: about 20Kg

Our Company:

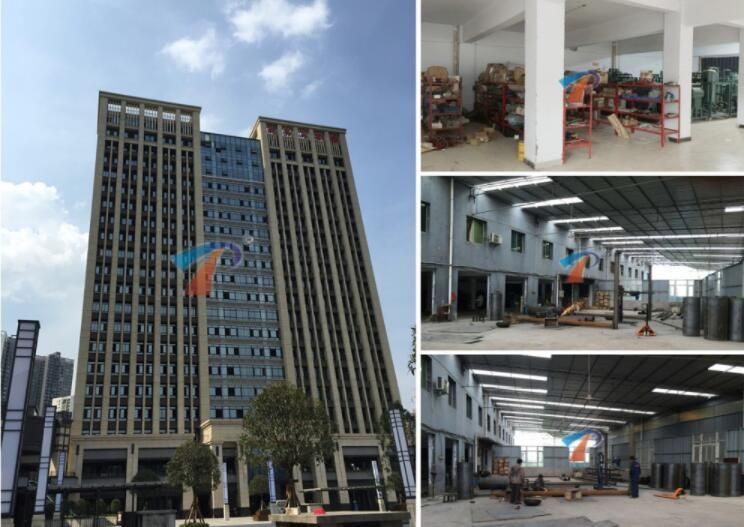

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

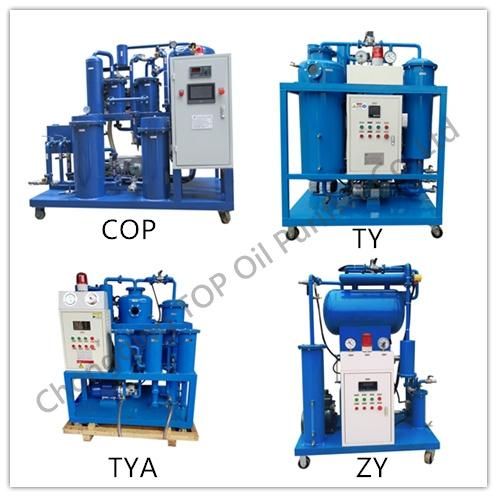

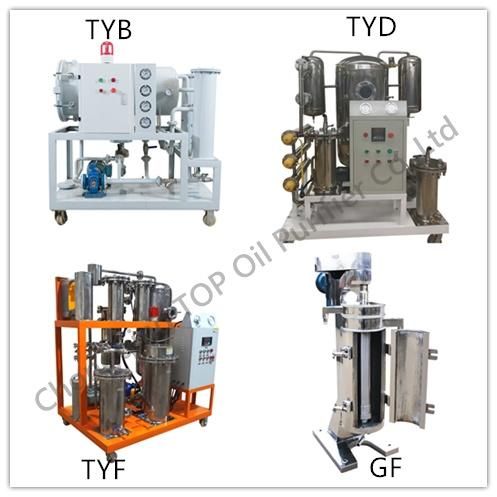

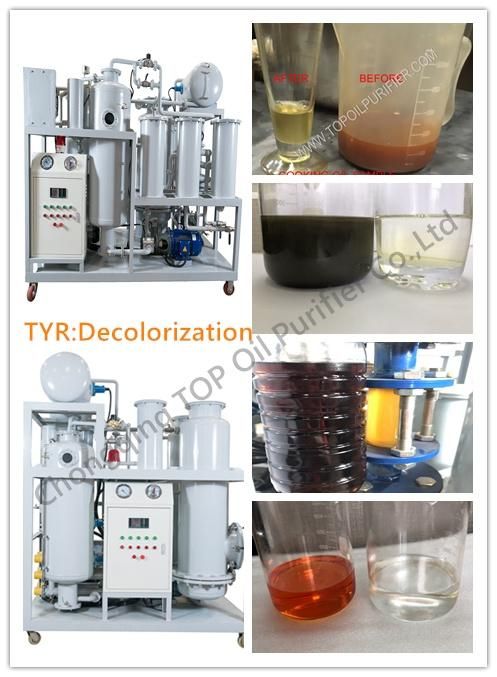

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

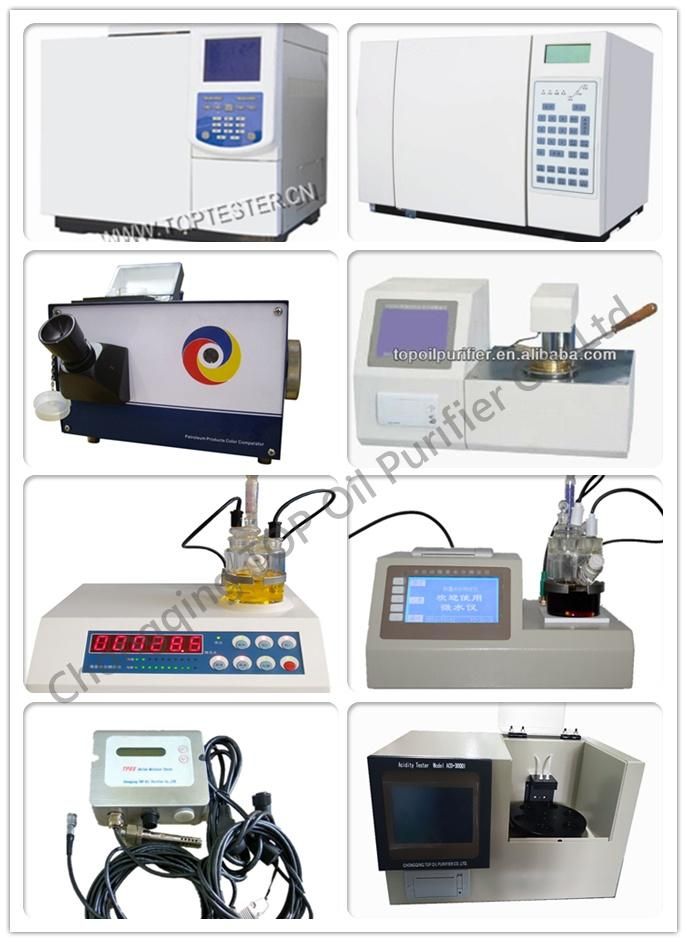

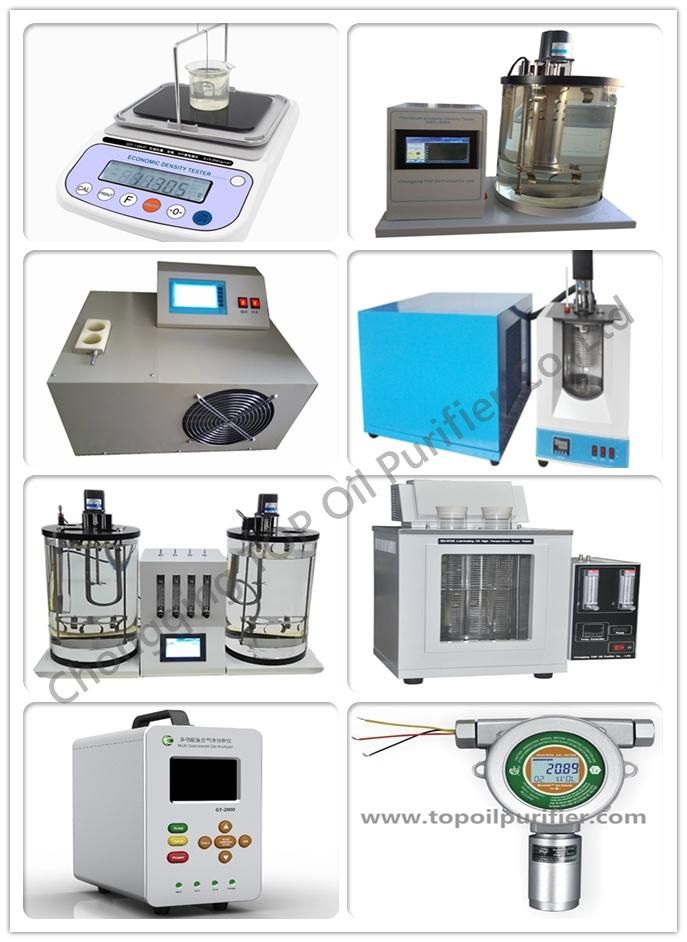

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.



Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
