SPD209/Nh3 Ammonia Gas Leak Alarm Detector/Meter
Shenzhen Bonad Instrument Co., Ltd.- Warranty:1year
- Brand:Bonad
- Customized:Customized
- Portable:Portable
- Certification:CE
- Gas:CO
Base Info
- Model NO.:SPD209
- Type:Electrochemical Gas Analyzer
- Delivery Time:in Stocks
- Product Name:Nh3 Ammonia Gas
- Measured Gas:Nh3
- Measuring Range:0~100ppm
- Operation Humidity:20%~80%
- Resolution:0.1ppm
- Test Result Read Time:<,=Seconds
- Dimension:172L*51W*25h(mm)
- Measurment Error:±5%+1
- Transport Package:Safety Carton Box
- Specification:SPD200
- Trademark:Bonad
- Origin:China
- Production Capacity:1000PCS Per Month
Description
Basic Info.
Model NO. SPD209 Type Electrochemical Gas Analyzer Delivery Time in Stocks Product Name Nh3 Ammonia Gas Measured Gas Nh3 Measuring Range 0~100ppm Operation Humidity 20%~80% Resolution 0.1ppm Test Result Read Time </=Seconds Dimension 172L*51W*25h(mm) Measurment Error ±5%+1 Transport Package Safety Carton Box Specification SPD200 Trademark Bonad Origin China Production Capacity 1000PCS Per MonthProduct Description

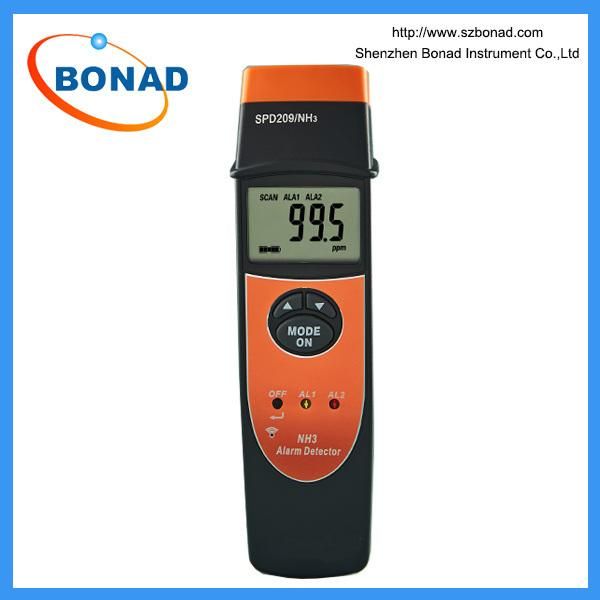

SPD209/NH3 Ammonia gas leak alarm detector/meterIntroduction:
This detector can detect the ammonia concentration from gas in more kinds of environments (volume concentration in ppm). It displays the detected ammonia with volume percentage in current environment.
Product features:
As it uses the imported ammonia sensor, it is very precise and good stability.It uses the intellectualized design and has gotten multiple functions. With backlight display and sound & light alarm, and easy to configureThe embedded temperature compensation can make the meter measure the correct value in the environment temperature of 0~40ºC.As its case is ergonomically designed, it looks handsome, feels good and easy to carry.
Applications:
Ammonia manufacturing workshops Petroleum smelting, petro-chemistry factoriesAmmonia fertilizer manufacturing plants and transportation & storage enterprisesAmmonia detection in special placesAmmonia detection in marketing and storage sitesOther industries and factories that use gas Technical features
Measurement display: 4 digit LCD
Operation temperature:0~40ºC (32~104°F)
Storing temperature: -10~40ºC(14~104°F)
Operation humidity: 20%~80% RH (relative humidity)
Storing humidity: 15%~90%RH (relative humidity)
Pressure limit: A standard atmospheric pressure ±10%
Measurement range: 0~100PPM
Resolution: 0.1PPM
Measurement error: ±5%+1
Outrange display: ----
Alarming method: sound & light alarm
Principle of the sensor: electrochemistry sensor
Durable years of the sensor: ≈1 years (it can be replaced)
Power supply: 3×1.5V AAA alkaline batteries
Battery life: about 100 hours of continuous use (when the backlight is off)
Dimension: 172×51×26 (mm)
Our Advantages :

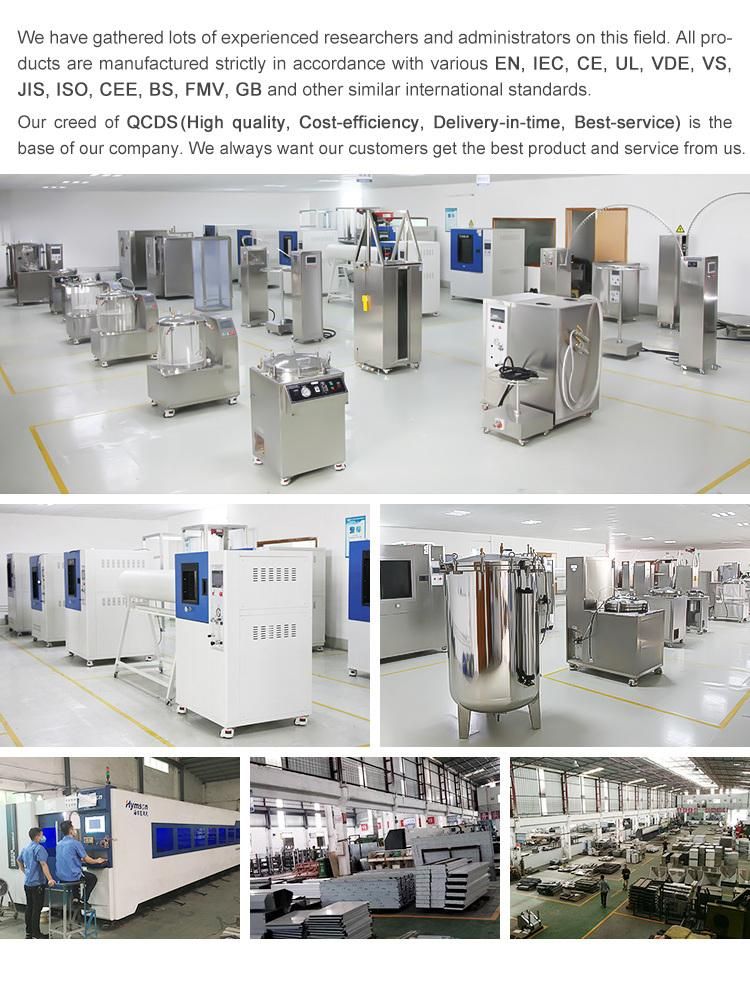

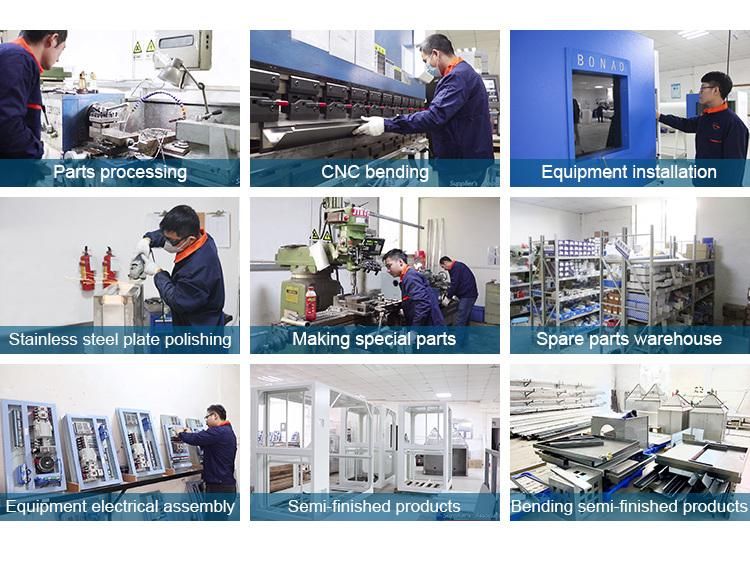

Company Profile :
