ASTM D1816 Fully Automatic Insulating Oil Tester (DYT-2)

Chongqing TOP Oil Purifier Co., Ltd.
  • International Standard：IEC156,Is6792,Bs5874,ASTM D1816,ASTM D877
  • Function：Fully Automatic
  • Weight：26kg
  • Color：Yellow, Black, Blue
  • Power Supply：120V,220V,240V
  • Display：LCD Color Touch

Base Info

  • Model NO.：DYT-2
  • Warranty Period：2 Years
  • Transport Package：Wooden Case
  • Specification：CE, SGS
  • Trademark：TOP
  • Origin：Chongqing, China
  • HS Code：90278099
  • Production Capacity：1000 Sets,Month

Description

(1) AC220V±10% power supply input(2) Output voltage:AC 0V~100KV  (3) Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%(4) Max test times: 9(5) Init wait times:0~999s(6) Stir time: 0~999s(7) Wait time: 0~999s(8) Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV

(9) Temperature measurement:

      Measurement range : 0°C to 70°C, or better

      Temperature resolution : 1°C, or better

      Operating temperature : up to 45°C

(10)Storage:100 groups

(11)7 inch colorful LCD with touch pad(12)Oil test vessel temperature measurement unit



All the selection can be done by touch panel with color LCD.
ASTM D1816 Fully Automatic Insulating Oil Tester (DYT-2)


We are OEM, produce products of different techincal index and brand according to your demands.

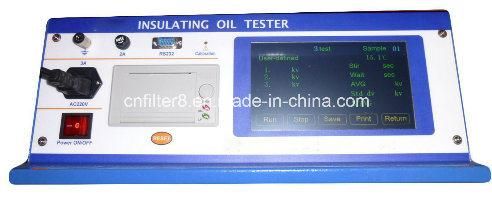

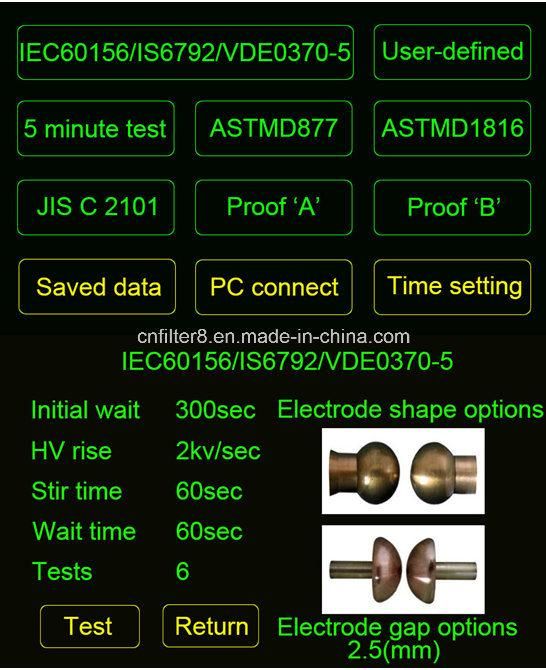

Part of operation pictures:
ASTM D1816 Fully Automatic Insulating Oil Tester (DYT-2)


Packing for delivery
ASTM D1816 Fully Automatic Insulating Oil Tester (DYT-2)
