• Model NO.：GC-MS 3100
• Origin：China

Basic Info.

Model NO. GC-MS 3100 Origin China

Product Description

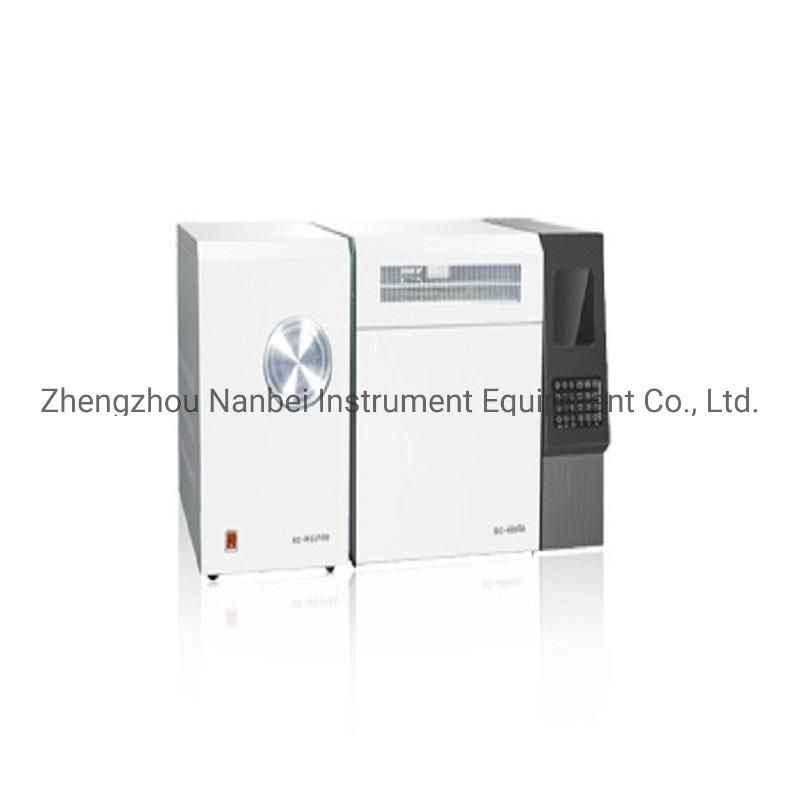

GC-MS3100 Lab using GC-MS Mass spectrometer


l Features an EI electron bombardment ion source with an independent heating system; control range of 120 - 350 ºC (adjustable).

1.Mass range: 1.5 - 1024 amu (0-300, 0-500, 0-800 amu ranges are also available)

2.Detection limit: 1pg octafluoronaphthalene, S/N 100:1

Scan speed: Adjustable, maximum 10,000 amu/sec

l Detector: High energy dynode (HED) electron multiplier

3.Vacuum system:molecular turbo pump,250 L/s

4.GC: The GC-4000A Series with capillary column, split/splitless injection system, and fully automated gas control system

5. Includes mass flow controller

l The GC-MS 3100 can be used in combination with purge and trap, thermal analysis, headspace autosampler and other pre-treatment equipment. High boiling point samples can be analyzed using a direct injection rod.

Picture:

GC-MS 3100, including:

1,Gas Chromatograph:

GC-4000A main machine with Flow Controller and EPC function

Split/ Splitless injector

Column Oven: RT+5ºC up to 400ºC

Column Temp. Accuracy: set value (K) ±0.5%

Temp. Deviation:< 2ºC max.

8-ramp programming heating

Capillary Column: Equity TM-5, 0.25 mm ID, 30M Length, 0.25μm coating thickness

Other columns optional

GC/MS joint for Capillary

 LCD display

2,MS System:

 EI  Ionization Source (Standard), Independent Heating System, Adjustable, between 150 ~ 300ºC, CE marked.

Quadrupole mass filter

Mass Scope: 1.5 ~ 1024 amu

Mass Resolution: >1.5M

Electron Multiplier(0~3KV)

Two scan modes: SCAN and SIM

Vacuum system: Vacuum system (standard): turbo molecular pump 240 L/s; mechanical pump: 2 L/s.

Oil mist filter, Recommended one set for each rotary pump.

3. Data Workstation

Software

Data Board

4-DIP system (optional)

5-SI-AS-1000 Multi-function Gas Chromatography Auto Sample Injector(optional), including

Syringe  specification: 1,5,10,25,50,100,250,500 μl

Sample tray specification: 110 digit sample tray (or 15 digit sample tray)

Times for each line injection: 1-99 times

Time distance for each injection: 0-9999s

Minimum quantity:  0.1 μl

Maximum quantity: 500 μl

Method type: 20

Sampling precision: ±1%

Necessary Accessories

He gas purification filter kit (optional)

Consists of He gas purification filter attachment parts and a He Gas purification filter.

Pressure regulator for He (optional)

He gas purity better than 99.995% is required.

With Purge and Trap and Thermal Desorption, the purity better than 99.9999% is required.

Carrier Gas Supply Pipe 5m.

Standard Sample 5pcs/Set (For EI)

Consumables and Spare Parts

Glass Insert for Split/Splitless Injection

Graphite Ferrule, 0.4 ID for middle-bore capillary

(O.D. 0.25mm or 0.32mm), column joint (10pcs/set)

Graphite Ferrule, 0.8 ID for middle-bore capillary

(O.D. 0.53mm),capillary  column joint (10pcs/set)

silicon Injection septum,

Standard type (20pcs/set)

O-RING for Capillary Insert (5pcs/set)

For low temperature

(Injection port temperature: less than 300 degrees)

 Filter Assy (Split, Purge)

FILAMENT D ASSY

Hamilton Syringe, needle 10.0μl (optional)

FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.

Company Show


Factory Show


Certification

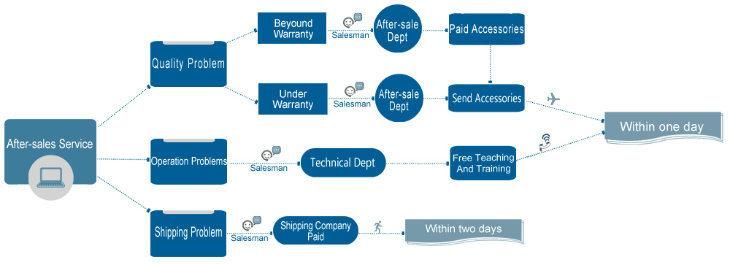

Warranty And After-sale Service
