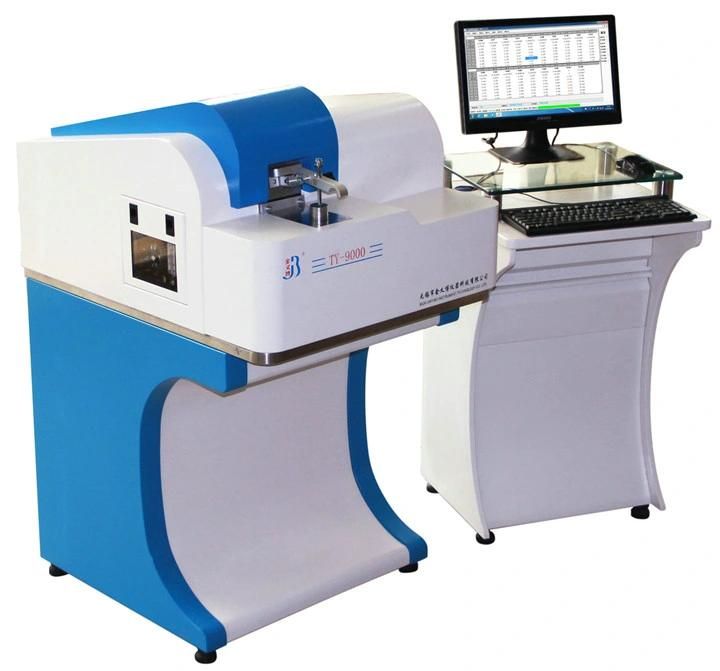

• Model NO.：TY-9000
• Electrode Type：Tungsten Spray Electrode
• Working Temperature：10~30 Degree
• Analysis Matrix：Fe, Al, Cu, Zn, Ni, Mg, Pb etc.
• Grating Focal Length：401mm
• Light Source Type：Digital
• Discharge Current：Max 400A
• Analysis Time：25s
• Analytical Gap：4mm
• Argon Gas Purity Requirement：99.999%
• Transport Package：Wooden Package
• Trademark：wuxi jinyibo
• Origin：Jiangsu Wuxi
• HS Code：9027300000
• Production Capacity：30 Sets,Month

Item Index Optical System Focal Length400nmWavelength range130nm-800nmDetector High resolution CCD Multi detectorsDegree of vacuumAuto control within 6-20 paPixel resolution30pmGrating line2400m1/mmFirst order spectral line dispersion rare1.2nm/mmAverage resolution ratio10pm/pixelFull spectrumLight room temperature is controlled automaticallySpark SourceType Digital arc and spark sourceSpark frequency100-1000HZPlasma current 1-80AIgnition voltage>15000V
Excitation lightOptimization of discharge parameters designHigh energy precombustion technology HEPS
Processor High-speed data synchronization acquisition and processingSpark Stand Electrode Tungsten electrode technologyMake up Thermal deformation self-compensation designArgon flushed with minimal consumption of ArgonSpray discharge electrode technologyAdjustable electrode technologyOthersMeasurable elementsFe,Al,Cu,Ni,Ti,Co,Zn,Sn,Mg,Pb  etcDimension 800mm(L)*700mm*470mm(H)weightAbout 100kgStorage temperature0ºC-45ºCOperating temperature10ºC-30ºC, 23±2ºC is recommendedPower AC220V/50Hz(Customized)Power consumptionExcitation:700W/Stand by:100WArgon quality99.999%, Argon pressure>4MpaArgon consumption 5L/min during spark modeInterface Ethernet data transmission based on DM9000A

Packing & Shipping
