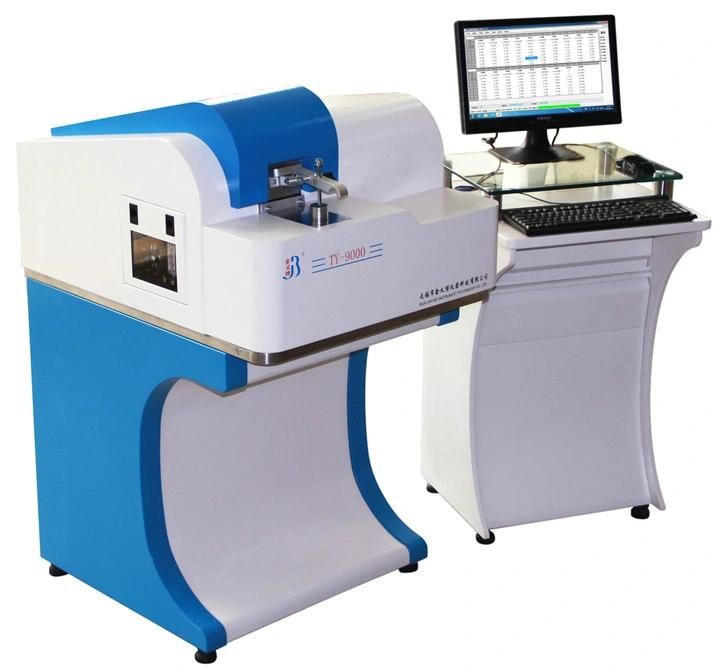

Ty-9000 Full Spectrum Spectrometer for Metallurgical Structure Analysis
Wuxi JinyiBo Instrument Technology Co., Ltd.- Detector：Advanced CCD Detector
- Technological Level：International Standard
- Analytical Method：Full Digital and Spectrum Direct Reading
- CCD Pixel Resolution：6pm
- Grating Lines：3000term,mm
- Light Source Type：All New Adjustable Digital Light Source and Heps
Base Info
- Model NO.：TY-9000
- Excitation Frequency：100-1000Hz
- Vacuum System：Automatic Control and Monitoring Vacuum Software
- Transport Package：Wooden Package
- Trademark：wuxi jinyibo
- Origin：Jiangsu Wuxi
- HS Code：9027300000
- Production Capacity：30 Sets,Month
Description
Item Index Optical System Focal Length 400nm Wavelength range 130nm-800nm Detector High resolution CCD Multi detectors Degree of vacuum Auto control within 6-20 pa Pixel resolution 30pm Grating line 2400m1/mm First order spectral line dispersion rare 1.2nm/mm Average resolution ratio 10pm/pixel Full spectrum Light room temperature is controlled automatically Spark Source Type Digital arc and spark source Spark frequency 100-1000HZ Plasma current 1-80A Ignition voltage >15000V
Excitation lightOptimization of discharge parameters design High energy precombustion technology HEPS
ProcessorHigh-speed data synchronization acquisition and processing Spark Stand Electrode Tungsten electrode technology Make up Thermal deformation self-compensation design Argon flushed with minimal consumption of Argon Spray discharge electrode technology Adjustable electrode technology Others Measurable elements Fe,Al,Cu,Ni,Ti,Co,Zn,Sn,Mg,Pb etc Dimension 800mm(L)*700mm*470mm(H) weight About 100kg Storage temperature 0ºC-45ºC Operating temperature 10ºC-30ºC, 23±2ºC is recommended Power AC220V/50Hz(Customized) Power consumption Excitation:700W/Stand by:100W Argon quality 99.999%, Argon pressure>4Mpa Argon consumption 5L/min during spark mode Interface Ethernet data transmission based on DM9000A
Excitation light
Processor
Packing & Shipping
