• Model NO.：ELE-523
• Environmental Humidity：≤75%
• IP Rating：IP54 Dustproof and Waterproof
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. ELE-523 Environmental Humidity ≤75% IP Rating IP54 Dustproof and Waterproof Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

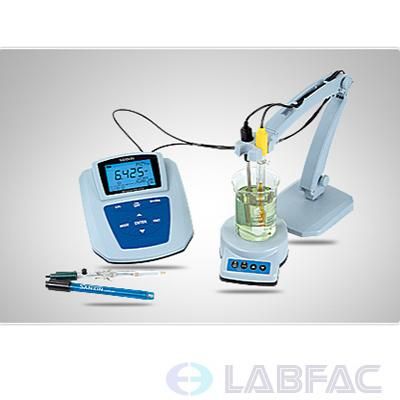

Item: PH/mV/ISE/Conductivity/DO Meter with low voltage display
Model: ELE-523

Introduction:
· Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
· There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
· Automatically recognize 13 kinds of pH buffer solution. User can choose anyone from four series of standard buffer solutions: Europe & USA series, NIST series, CHINA series and Self-defined series
· High purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for electric power and petrochemical industry
· With EH redox potential measuring mode can directly display ORP value which against standard potential of hydrogen electrode.
· There are 10 kinds of common ions can be selected in the ion concentration measuring mode, user also can self-define other ions.
· Can switch 4 kinds of concentration unit: pX, mol/L, mg/L and ppm.
· Meter has the only product serial number.
· Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.

Specifications:

pH	Measuring range Resolution Accuracy Input current Input impendence Stability Temp. compensation range	(-1.999 ~ 19.999) pH 0.1/0.01/0.001 pH Meter: ±0.002 pH, connect meter with electrode: ±0.01pH ≤1×10-12 A ≥3×1012 Ω ±0.002 pH/3h (0 to 100) °C (automatic or manual)
mV	Measuring range(mV/ORP/EH) Resolution Accuracy	-1999.9mV ~ 0 ~ 1999.9mV 0.1mV ±0.03% FS
Ion Concentration	Measuring range Display unit Accuracy Temp. compensation range	0.00 ~ 14.00 pX pX, mol/L, mg/L, ppm Meter: ±0.5 % reading(monovalent), ±1.0 % reading (bivalent) 0 to 60 °C (automatic or manual)
Temperature	Measuring range Resolution Accuracy	-10°C~ 110°C 0.1°C 5~ 60°C range: ±0.4°C other range: ±0.8°C
Other Technical Parameters:	Data storage Storage content   Power Communication connector Size and weight Quality and safety certification	900 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC
Working Condition	Environment temperature Environmental humidity IP rating	5 ~ 35 °C(0.01grade) 15 ~ 30 °C(0.001grade) ≤75% IP54 Dustproof and waterproof

Standard kits:

1. Model ELE-523 pH/ISE meter	1set
2. Model 602 flexible electrode holder	1pc
3. Model 901 intelligent stirrer	1set
4. 201T-M plastic pH/ATC three-in-one combination electrode	1pc
5. 2503-C glass pH combination electrode	1pc
6. MP500 temperature electrode	1pc
7. Model 6213 double salt bridge reference electrode	1pc
8. pH calibration buffer solution (pH4.00, pH6.86, pH9.18/50ml)	1btl/each
9. 9V power adapter (meter use)	1pc
10. 6V power adapter (stirrer use)	1pc
11. B628 stirring bead	3pc
12. RS-232 communication cable	1pc
13. MP523 communication software disk	1pc
14. Operation manual	1unit
15. Brief operation instruction	1unit
