Sq-80 Manual Type Specimen Cutter/Sample Cutting Machine Worked by Handle
Jinan Chenji International Trade Co., Ltd.- After-sales Service：Whole Life
- Sample Type：Solidity
- Processing Method：Cutting
- Warranty：1 Year
- Environment：Normal Pressure and Temperature
- Display：Pointer Display
Base Info
- Model NO.：SQ-80
- Performance：Semi-automatic
- Power Supply：220V
- Certification：CE
- Weight：190kgs
- Customized：Customized
- Working Voltage：380V 50Hz
- Spindle Speed：2800r,Min
- Grinding Wheel Specifications：300×2×32mm
- Motor：Y2-100 L-2 2.2kw
- Dimensions：950×880×1500mm
- Equipment Quality：100kg
- Transport Package：Plywood Box
- Specification：950× 880× 1500mm
- Trademark：OEM ODM
- Origin：China Shandong Others
- HS Code：8460402000
- Production Capacity：2000 Set Per Year
Description
Basic Info.
Model NO. SQ-80 Performance Semi-automatic Power Supply 220V Certification CE Weight 190kgs Customized Customized Working Voltage 380V 50Hz Spindle Speed 2800r/Min Grinding Wheel Specifications 300×2×32mm Motor Y2-100 L-2 2.2kw Dimensions 950×880×1500mm Equipment Quality 100kg Transport Package Plywood Box Specification 950× 880× 1500mm Trademark OEM ODM Origin China Shandong Others HS Code 8460402000 Production Capacity 2000 Set Per YearProduct Description

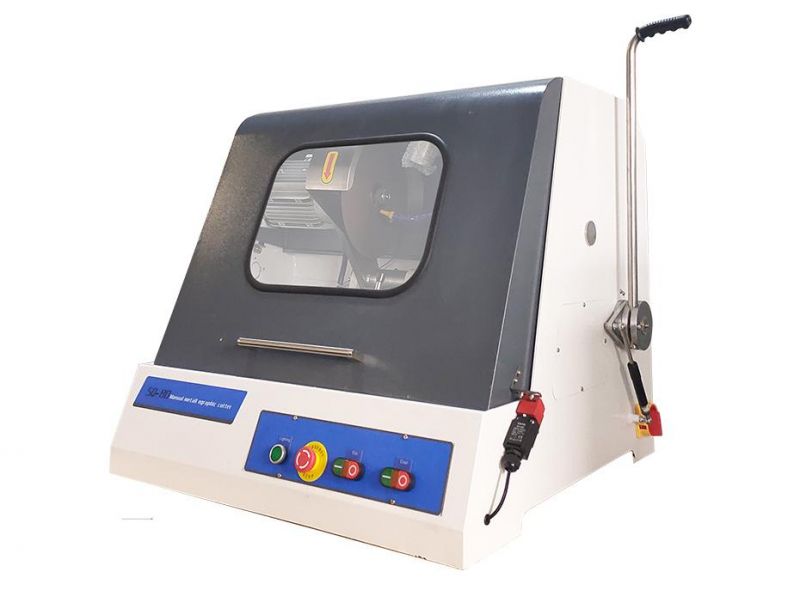

SQ-80 Manual Type Sample/Specimen Cutting Machine that working by hand
Usage of the Cutting Machine
This machine is suitable for cutting samples of various metal and non-metal materials in order to observe the metallographic and petrographic structure of the material. The machine is equipped with a cooling device, and the configured cooling liquid can take away the heat generated during cutting, and avoid the sample from overheating and burning the sample tissue. The machine is easy to use and reliable. It is the equipment for making samples in factories, research institutes and laboratories of universities and colleges.
Technical Data
1. Power supply: three-phase four-wire (380V, 50Hz)
2. Spindle speed: 2800 rpm
3. Grinding wheel specifications: 300×2×32mm
4. Maximum cutting diameter: 80mm
5. Motor: Y2-100 l-2 2.2KW
6. Equipment quality: 100kg
| Packing List | Specification | Unit | Qty | Note |
| Manual sample cutting machine | SQ-80 | Set | 1 | |
| Product Manual | Copy | 1 | ||
| Product certification | Copy | 1 | ||
| Packing List | Copy | 1 | ||
| Wrench | 36 | PCS | 2 | |
| Big throat hoop | φ32-φ44 | PCS | 2 | |
| Small throat hoop | φ16-φ25 | PCS | 2 | |
| Cut slices | 250mm | PC | 1 | |
| Inlet pipe | 2.5m | PC | 1 | |
| Wrench | Hexagon socket m8 | PC | 1 | Optional |
| Long hair brush | PC | 1 | ||
| Aggravate foot | M12 | PCS | 4 | |
| Outlet pipe | 2.5m | PC | 1 | |
| Environmentally Friendly Cooling Lubricant | 2500ml | Bottle | 1 | |
| Cooling water tank | 50 liters | PC | 1 | |
| Water pump | 380v | Set | 1 |
