Portable Digital Water Conductivity TDS Meter
Shanghai Lianhua Industrial Co., Ltd.- After-sales Service:on-Line Support
- Warranty:1 Year
- Display:Digital
- Portable:Portable
- Appliance:Food Analysis, Medical Research, Biochemistry, Water Analysis
- Certification:ISO9001, CE
Base Info
- Model NO.:530P
- Conductivity Range:0.01 to 200.0ms,Cm
- TDS Range:0.00 to 200 Ppt
- Accuracy:0.01
- Resolution:0.001, 0.01, 0.1
- Temperature:0 to 105 Degrees
- Displays:LCD
- Application:Water Tester
- Power:3×1.5V AA Batteries or DC5V Power Adapter
- Transport Package:Carton
- Specification:340*290*80mm
- Trademark:lianhua
- Origin:Shanghai
- HS Code:9031809090
- Production Capacity:50000 Units,Year
Description
Basic Info.
Model NO. 530P Conductivity Range 0.01 to 200.0ms/Cm TDS Range 0.00 to 200 Ppt Accuracy 0.01 Resolution 0.001, 0.01, 0.1 Temperature 0 to 105 Degrees Displays LCD Application Water Tester Power 3×1.5V AA Batteries or DC5V Power Adapter Transport Package Carton Specification 340*290*80mm Trademark lianhua Origin Shanghai HS Code 9031809090 Production Capacity 50000 Units/YearProduct Description

1>Product Introduction

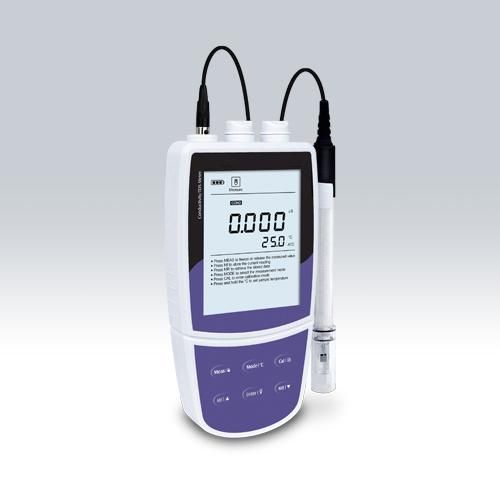

Portable Conductivity/TDS Meter
Professional portable conductivity/TDS meter, 1 to 5 points calibration, selectable TDS factors, setup menu contains 10 options, accuracy: 1% F.S.
• Professional portable conductivity/TDS meter meter is equipped with a backlit LCD display.
• 1 to 5 points calibration with automatic recognition for conductivity standards.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear
and pure water compensation modes.
• Automatic temperature compensation corrects conductivity measurment to reference
temperature.
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Calibration report shows the calibration point and factor.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, stability criteria, temperature
unit, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface is easy to transfer data to PC.
• Multi-mode power scheme (batteries, power adapter and USB port) ensures that using the
meter smoothly.
Applications:
Education: Chemical experiments
Laboratory: Routine measurements and quality controls
3 >Technical Parameters
Model | 530 |
Conductivity | |
Range | 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
Resolution | 0.001, 0.01, 0.1, 1 |
Accuracy | ±0.5% F.S. |
Calibration Points | 1 to 5 points |
Calibration Solutions | 10µS, 84µS, 1413µS, 12.88mS, 111.8mS |
TDS | |
Range | 0.00 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt |
Resolution | 0.01, 0.1, 1 |
Accuracy | ±1% F.S. |
TDS Factor | 0.1 to 1.0 (default 0.5) |
Temperature | |
Range | 0 to 105°C/32 to 221°F |
Resolution | 0.1°C/0.1°F |
Accuracy | ±0.5°C/±0.9°F |
Offset Calibration | 1 point |
Calibration Range | Reading ±10°C |
General Specifications | |
Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic |
Temperature Coefficient | Linear (0.0 to 10.0%/°C), pure water |
Reference Temperature | 20/25°C |
Cell Constant | K=0.1, 1, 10 or custom |
Stability Criteria | Low or high |
Calibration Due Alarm | 1 to 31 days or off |
Auto-Power Off | 10, 20 or 30 minutes after last key pressed |
Memory | Stores up to 500 data sets |
Output | USB communication interface |
Connector | 6-pin nimi-DIN, 3.5mm jack socket |
Display | Custom LCD (80×60mm) |
Power | 3×1.5V AA batteries or DC5V power adapter |
Dimensions | 170(L)×85(W)×30(H)mm |
Weight | 300g |
