• Model NO.：IIJ-II BDV Tester
• Trademark：TOP
• Origin：Chongqing, China
• HS Code：9027809900
• Production Capacity：100 Sets Per,Month

Basic Info.

Model NO. IIJ-II BDV Tester Trademark TOP Origin Chongqing, China HS Code 9027809900 Production Capacity 100 Sets Per/Month

Product Description

Automatic Transformer Oil Insulating Oil Breakdown Voltage Tester (BDV Tester)

Application
Automatic Breakdown Voltage Tester of Testing Insulation Oil is produced as per the newest international standards
Such as ASTM D1816, IEC156, ASTM D899, etc.
Which adopts industrial single plate integrated circuit, new-style I/O ports,
With unique inspection and anti-jamming technology to greatly improve its reliability and functionality.

Features
1) Fully automatic, control by microcomputer, utilization of new I/O terminal.

2) Numbers of times of testing and idling time of stirring are set via digital setting.

3) Test results displayed and printed out automatically.

4) Strong capability of anti-interference.

5) High accuracy of testing and high capacity of anti-jamming.

6) Easy to operate, small size, light weight which operated in the open air very conveniently and convenient for maintenance

7) Can store 99 groups oil testing data which is convenient to reading and print.

The testing data can keep 100 years under the condition of power off.

8) System time can go on running under power off. (the system time just for reference can not be the standard of timing)

Parameter Data

Power supply	AC220V±10%,50Hz
Output voltage	0~80KV(60KV,80KV)
Capacity	1.2KVA(1.6KVA,2.0KVA)
Speed of pressure rise	about 2KV/S
Voltage test precision	±3%
Breakdown sensitivity	<2KV
Wave difference	≤3%
Time of breakdown	≤10ms
Working  temperature	0~40
Humidity	The biggest comparatively humidity85%
Reserve circumstance- temperature	-20~60
Humidity	The biggest comparatively humidity75%
Working altitude	<1500m (if over 1500m can be designed specially)
Dimension	480mm*460mm*460mm

Service Commitment
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.

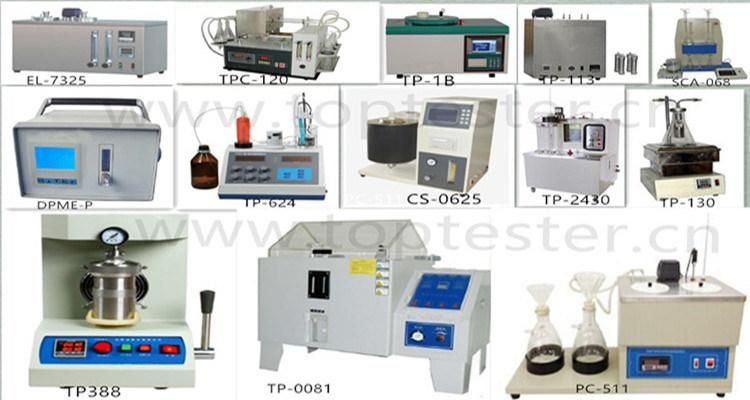

Main Oil Testers


1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Kinematic Viscosity Tester VST-2000
3. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
4. Fully Automatic Surface/Interface Tension Tester IT-800
5. Fully Automatic Open Cup Flash Point Tester TPO-3000
6.Fully Automatic Closed Cup Flash Point Tester TPC-3000
7.Cloud Point & Pour Point Tester PT-2000
8.Multi-functional Vibration Tester VBT-2000
9.Petroleum Products Density Tester DST-3000
10.Distillation Range Tester DIL-201
11.Liquid Phase Corrosion Tester TPS-05
12.Copper Corrosion Tester TP-113
13.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
14.Dew Point Tester DPME-P
15.Vehicle Gear Oil Channel Point Tester Model TP-0030
16.Anti-Corrosive Oil/Grease Salt Spray Corrosion Tester Model TP-0081
17. Mechanical Impurities Tester Model PC-511
18. Air Release Value Tester Model TP-0308
19.Distillate Fuel Oil Oxidation Stability Tester Model TP-175
20. Foam Characteristics Tester Model FC-892
21.Dark Petroleum Products Sulfur Content Tester Model TPC-120
22. Petroleum Products Aniline Point Tester Model TP-262A
23.Petroleum Products Ash Tester Model TP-508
24.Petroleum Products Chroma Tester Model TP-225
25. Automatic Petroleum Products Carbon Residue Tester (Micromethod) CS-0625
26.Spontaneous Ignition Point Tester FP-706
27.Fully Automatic Glassware Washing Machine TP504
28. Lube Oil/Grease Evaporation Loss Tester EL-7325
29. Crude Oil And Fuel Oil Sediment Tester TP-130
30. Wide Temperature Range Lubricating Grease Drop Point Tester TLS-22
31. Crude Oil And Petroleum Products Salt Content Tester SCA-068
32. Petroleum Products Saturated Vapor Pressure Tester(Reid Method) TP-8017
33.Petroleum Products Freezing Point Tester TP-2430
34. Oxygen Bomb Calorimeter TP-1B
35. Existent Gum Tester TP-509A
36.Octane and Hexadecane Value Tester TP-131
37.Automatic Gasoline Oxidation Stability Tester TP-148
38. Light Petroleum Products Sulfur Content Tester (Lamp-Kindled Method) TP-119
39. Resistant oil Chlorine Content Tester TP388
40. Distillate Fuel Mercaptan Sulfur Tester TP-624

About Us

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products have high quality, easy operation, excellent performance and long service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They play a great role in reducing energy consumption for clients as well as environmental pollution. We provide you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, and waste oil recycling equipment etc.

TOP Testers work on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers,and  high voltage testing equipment etc.

Certifications

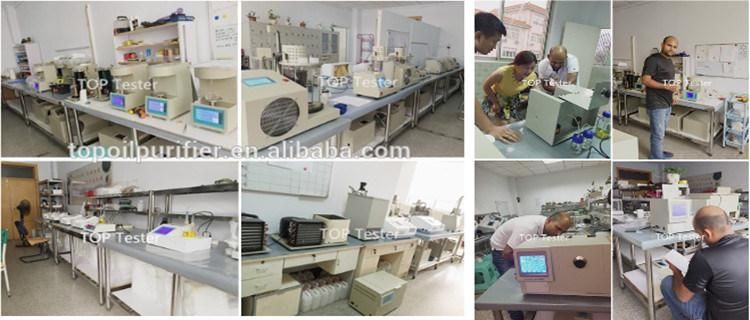

Customers' Visit
