• Model NO.：WD6200
• Model No：Wd6200
• Sensor Type：Catalytic or Electrochemical or Infrared
• Signal Output：4-20mA
• Accuracy：±5%Fs
• Consumption：≤5W
• Sampling Method：Natural Diffusion
• Protection Grade：IP65
• Dimension：293mmx263mmx108mm
• Weight：About 2.7kg
• Transport Package：Carton
• Origin：China Mainland
• Production Capacity：2000PCS

Basic Info.

Model NO. WD6200 Model No Wd6200 Sensor Type Catalytic or Electrochemical or Infrared Signal Output 4-20mA Accuracy ±5%Fs Consumption ≤5W Sampling Method Natural Diffusion Protection Grade IP65 Dimension 293mmx263mmx108mm Weight About 2.7kg Transport Package Carton Origin China Mainland Production Capacity 2000PCS

Product Description

Description
WD6200 is an advanced fixed gas detector for the detection of combustible gases, toxic gases and oxygen levels. Provides advanced technology, easy operation, reliable and cost-effective gas monitoring.

Applications
WD6200 fixed gas detector is widely used in the fields of oil processing plants, chemical factories, metallurgy, power plants etc.

Features
Explosionproof design
Smart sensor module
SIL2 certificate
LCM screen display

Technical Data
Sensor Type: Catalytic or electrochemical or infrared
Working Method: Natural diffusion
Working Voltage: DC24V±25%
Consumption: ≤5W
Accuracy: ≤±5%FS
Indication: LCM screen
Response Time (t90): ≤30s (LEL)/ ≤60s (Toxic gas / O2)
Temperature: -40ºC~70ºC (LEL) / -20ºC~50ºC (toxic gas / O2)
Humidity: ≤95%RH
Protection Grade: IP65
Signal Output: 4-20mA
Cable required:
≥1.5mm2 × 3 core cable (420mA type)
≥1.5mm2 × 4 core cable (RS485 type)
Distance to the panel: ≤1000m
Sensor life:
Catalytic: 3 years, Electrochemical: 2 years, Infrared: ≥ 5 years
Dimensions and Weight: 293mm×263mm×108mm, about 2.7kg

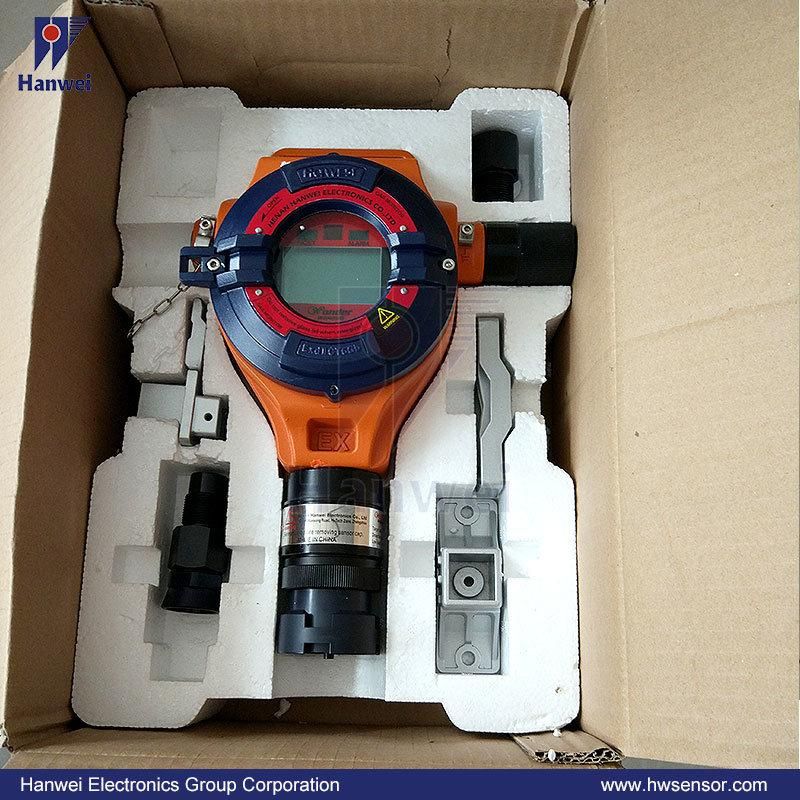

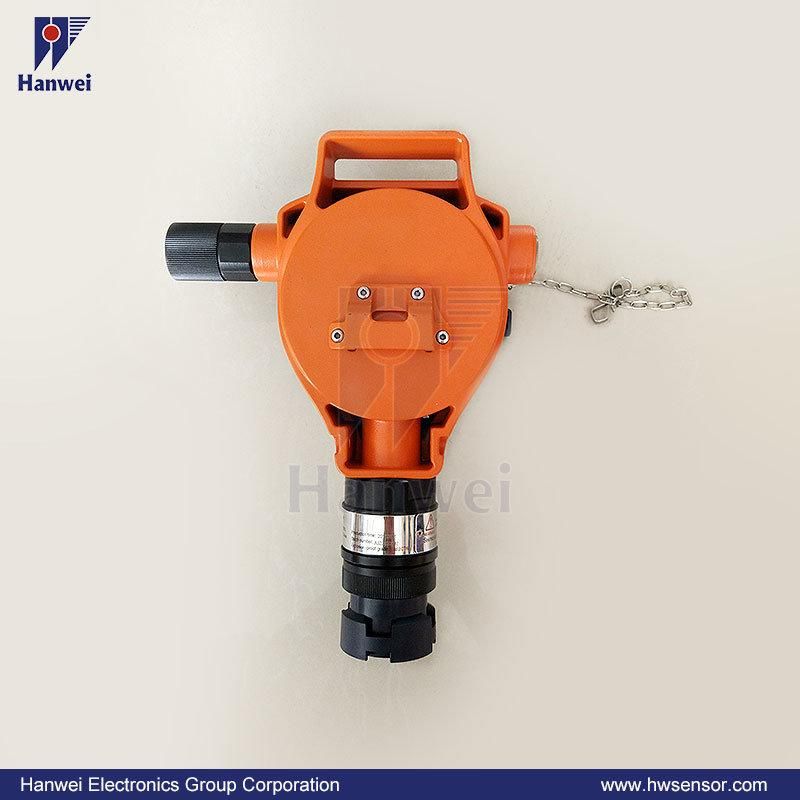

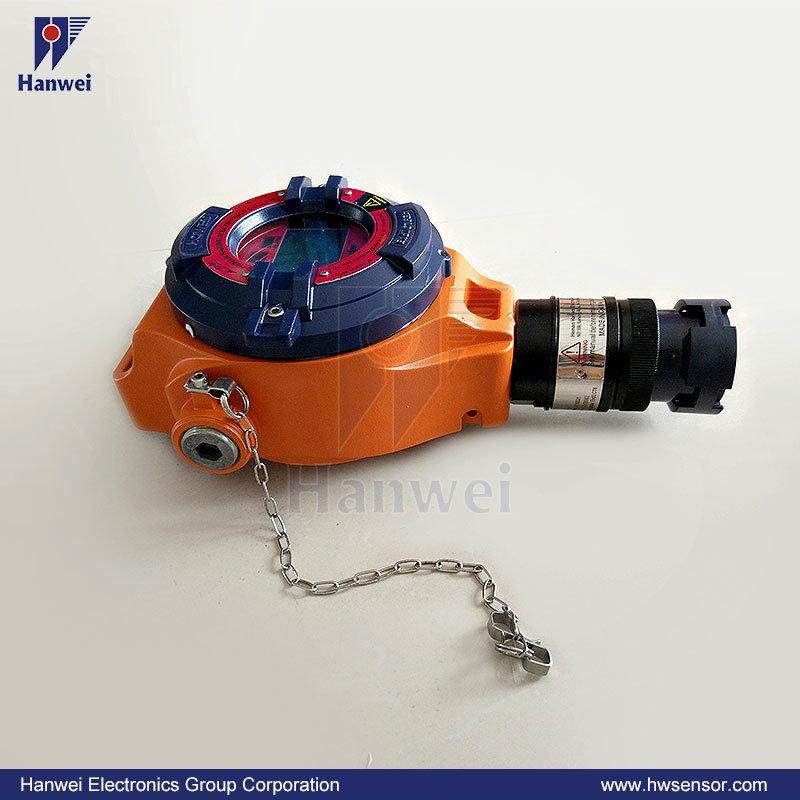

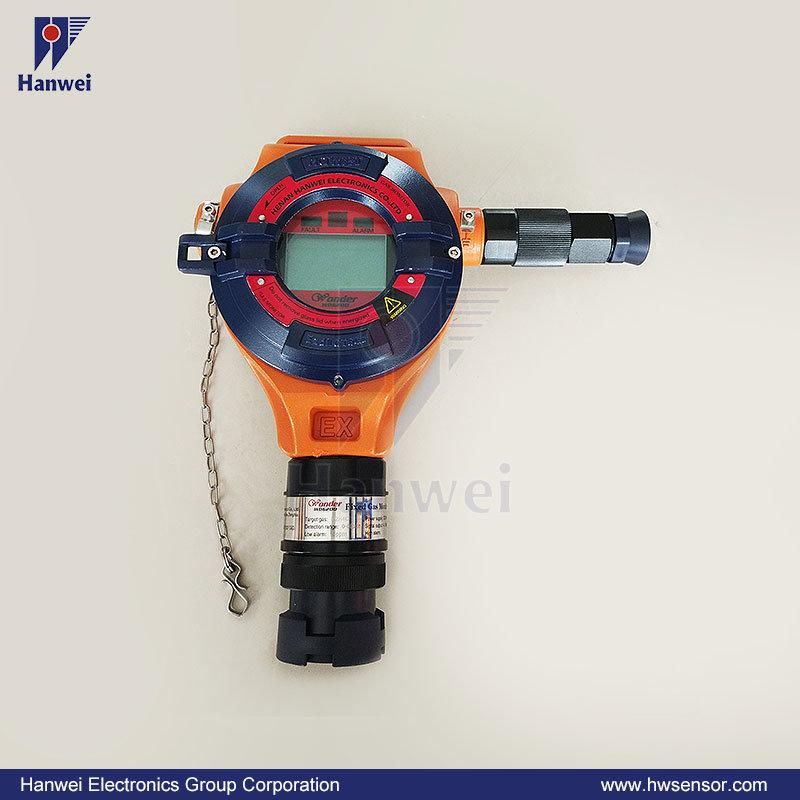

Product Pictures
