• Model NO.：DPG-V1
• Name：5ºC–55ºC (90ºC Is Optional.)
• Temperature Rangetemperature Range：10 ºC ~ 55 ºC
• Temperature Control Accuracy：±0.1ºC
• Humidity Range：5-90 %Rh(Double-Flow Humidity Method)
• Humidity Precision：±1%Rh
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• HS Code：9031809090
• Production Capacity：500PCS,Month

Basic Info.

Model NO. DPG-V1 Name 5ºC–55ºC (90ºC Is Optional.) Temperature Rangetemperature Range 10 ºC ~ 55 ºC Temperature Control Accuracy ±0.1ºC Humidity Range 5-90 %Rh(Double-Flow Humidity Method) Humidity Precision ±1%Rh Transport Package Standard Export Package Trademark Labkits Origin Hunan China HS Code 9031809090 Production Capacity 500PCS/Month

Product Description

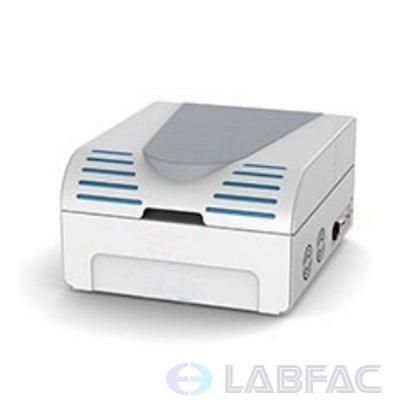

Item: Gas (oxygen) Permeation Rate Tester  in Plastic Film
Model: DPG-V1
Product function:
It is applied to various gas permeation rate detection, such as O₂,CO₂,N₂ and air, etc, in plastic film, composite membrane, High-barrier materials, sheet, metal foil, rubber, etc.

Operating principle:
Using the principle design of differential pressure method, put treated sample in the middle of upper and bottom chamber in advance. Pressure tightly and seal, pick up the suction to the whole system, after reaching the required vacuum degree, close bottom chamber, fill with certain test gas to high pressure chamber, and adjust upper chamber pressure, keep on two sides of the sample forming constant air pressure gradient difference, the gas is under the action of differential pressure gradient, permeating from high-pressure side (upper chamber) to vacuum side (bottom chamber). Accurately measure vacuum chamber( bottom chamber) intensity of pressure variation, calculate various barrier property parameters of test sample. Fully conform to the standard GB1038,ASTM D1434.

Application characteristic
High speed vacuum ability; reduce the vacuum time, degassing more thoroughly, high test precision.
Short test time, high efficiency;
Could extend to test bottle, bag;
Save when power failure functions;
Little gas consumption, one bottle of gas could be used for one month continuously.
A whole-process monitor, automatic recording, sampling rate could be adjusted, automatically repeat the test.
Strong graph curve function, convenient for comparison test and analysis;
Automatic testing: Set the test parameters, test automatically proceeds after starting, automatically judge the test is over and save the test result.
There is general data base system in host software, data could be exported, could store the data, inquire, print, etc.
Through the analysis of historical data, it is easy to grasp the history dynamic of the products.

Product feature
Pure semiconductor temperature controlled, automatically control temperature warming and cooling. Temperature range is more wide and more accurate, parallel work, higher reliability.
Apply base line technology; remove the system error, test result is more accurate.
Be of accurate pressure control ability, maintaining constant pressure difference.
Adopt top grade high precision vacuum transducer, high quality component and part, precise pipeline system and pressure sensor, ensure stability and reliability of instrument running
Embedded system control, large liquid crystal display, host and PC machine double control and double operation

Meeting Standards
Compatible with the standard of various tests ISO, etc: ASTM D1434,ISO 2556,ISO 15105-1,JIS K7126-A,YBB 00082003

Technical index	Technical parameter
Model	DPG-V1
Measurement range( film) (cc/m2·day·0.1MPa)	0.05-100,000
Test precision	0.01 cc/m2•day•0.1MPa
Test sample quantity	1
Primary sensor quantity	1
Test pattern	Independent single cavity
Vacuum error	0.1Pa
Vacuum degree	<10Pa
Vacuum efficiency	Less than 27Pa in 10 minutes, less than 20Pa in 15 minutes.
Testing efficiency	Test time < 4 hours, when Transmittance >5cc/m2.day.0.1MPa
Temperature range	5ºC-55ºC (90ºC is optional.)
Temperature control accuracy	±0.1ºC
Humidity range	5~90 %RH(double-flow humidity method)
Humidity precision	±1%RH
Test pressure	0.1MPa~0.2Mpa
Air source pressure	0.1MPa~0.8 MPa
Test gas	O2,N2,CO2 or other gas
Carrier gas port	¢8
Vacuum tube diameter	¢15
Display and control method	Test host large size liquid crystal screen real- time display ,computer and test host double control mode
Correction mode	Base line correction, Standard film correction, vacuum transducer external correction
Sample thickness	≤3mm
Test area	50cm2,circle( other dimension could be customized.)
Main machine dimension (L*B*H)	585×640×430mm
Weight(KG)	40Kg
Power supply	220V AC 50HZ
