• Model NO.：AIC-8142
• Thermocouple Accuracy：± 0.5%
• Diameter of Thermocouple Wire：0.40mm
• Heating Rate：5 ºC , Min or 3 ºC , Min
• Heating Power：6kw
• Delivery Time：30 Days
• Test Object：Thermal Insulation Materials
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. AIC-8142 Thermocouple Accuracy ± 0.5% Diameter of Thermocouple Wire 0.40mm Heating Rate 5 ºC / Min or 3 ºC / Min Heating Power 6kw Delivery Time 30 Days Test Object Thermal Insulation Materials Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

Introduction:

This maximun operating temperature tester is designed according to ISO 8142: 1990 ,which is used to evaluate the maximum operating temperature of loose-fill insulation materials, carpets, blankets, blocks, plates, prefabricated pipe insulation and some insulation products.

The maximun operating temperature tester adopts CNC machine processing molding. circular modelling is beautiful and generous. It can also be rust corrosion. Other parts use 45 # steel. The surface plating uses SUS304 stainless steel.




Standard:
• ASTM C411-82 "hot surface temperature insulation performance test method"
• ASTM C447-85 "insulation maximum use temperature assessment methods."• ISO 8142: 1990 Appendix A "pre-determined maximum use of mineral wool pipe shell temperature of the test method."

Main features:

1. Heating plate: the heating plate is made of SUS304 stainless steel.the test area is about 900 * 450mm, which is surrounded by 80mm wide protective layer. At least five thermocouples which is ued to measure the surface temperature is located at the surface of the heating plate. Four thermocouples are fixed on the diagonal of heating plate heating zone, and the distance of each corner is about 150mm. The fifth thermocouple is located at thecentreof the heating plate.
2. Heat pipe: the heating pipe is made of SUS304 stainless steel.the length is about 2M, the nominal diameters are about 88mm, 108mm, 133mm. Three heating pipes are arranged side by side.
3. Temperature system: K-type thermocouplewire ;thermocouple wire diameter of 0.40mm, measuring temperature: 0-1100 ºC. Thermocouple Accuracy ± 0.5%.
4. The precision of heat difference about temperture thermocouple :5% or 15 ºC
5. The maximun operating temperature tester uses PLC temperature module to collect the temperature data.
6. The control section: PLC module, real-time displayed temperature curve is controlled by micro computer, the output report.
7. Heating rate: 5 ºC / min or 3 ºC / min can be set.
8. Touch screen control system: real-time displayed temperature curve;
9. 1m flat feet and minimum thickness feeler is about 0.03mm, 0.05mm;
10. A set of test software is supplied with maximun operating temperature testing equipment.
12. Heating power: 6kw
13. Temperature measurement: once every 2min collection and displayed with temperature curve;
14. Response time of the thermocouple: <0.5s
15. The precision of temperture: ± 0.5 ºC
16. The precision of time recorder: 1s/h
18. Flat ruler and feeler gauge: Measuring warpage.
19. Two sample canisters are supplied with Thermal Insulation Materials Maximum Operating Temperature Tester.

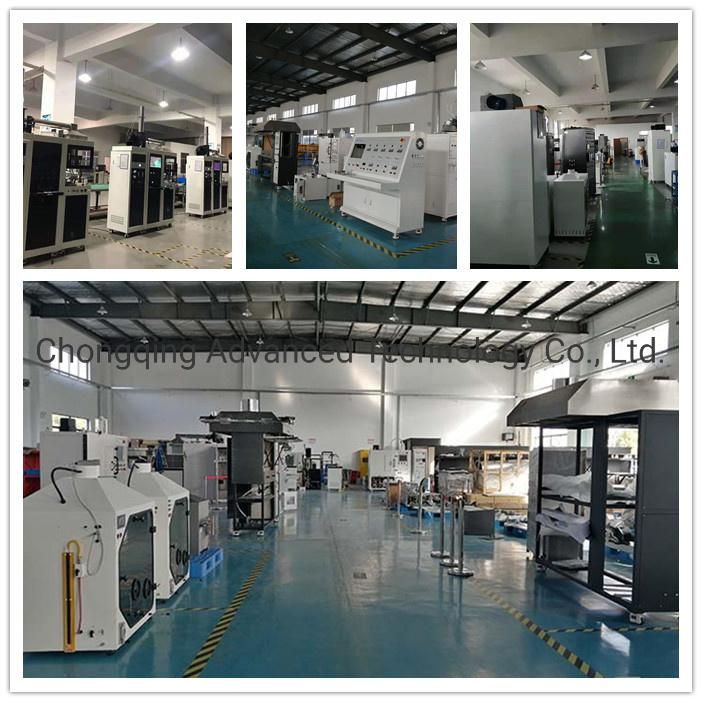

Factory overview

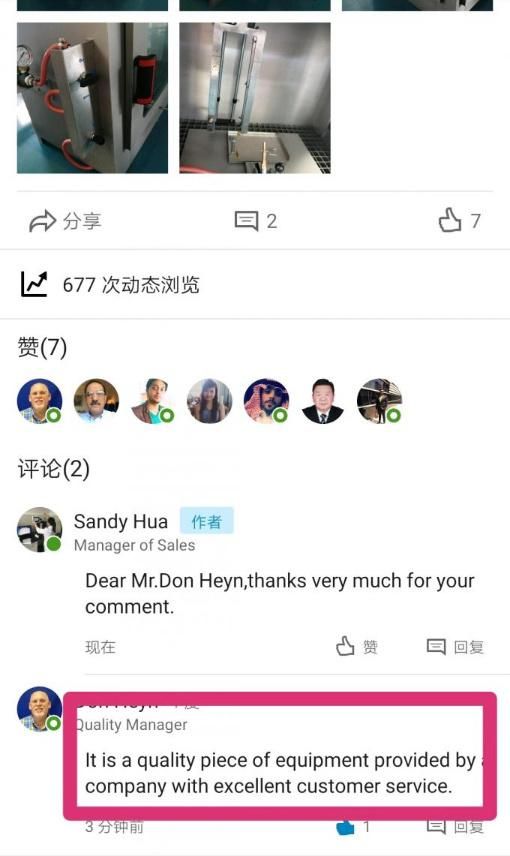

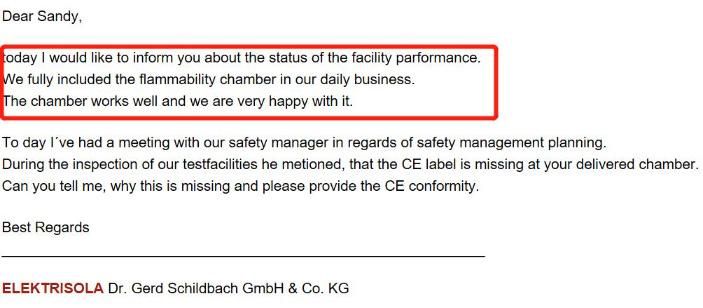

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 50 working days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
