Nfpa701 Method 2 Flame Propagation Test Equipment for Textiles and Films

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：12 Months
  • Test Standard：Nfpa 701 Method 2
  • Power Supply：220V, 50Hz, 110W
  • Size of Chamber：Length 500 X Width 500 X Height 2420mm
  • Burner Size：Diameter 9.5 mm, Length 100 mm

Base Info

  • Model NO.：NFP-2
  • Flow Meter Range：0 ~ 66cc,Min
  • Flame Height：280±12 mm
  • Weight：About 110kg
  • Display：LCD
  • Color：Grey
  • Applicating：Textiles and Films Testing
  • Transport Package：Plywood Case
  • Specification：Stainless steel
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：30 Sets,Month

Description

Basic Info.

Model NO. NFP-2 Flow Meter Range 0 ~ 66cc/Min Flame Height 280±12 mm Weight About 110kg Display LCD Color Grey Applicating Textiles and Films Testing Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 30 Sets/Month

Product Description

Description
NFPA 701 is Standard Methods of Fire Tests for Flame Propagation of Textiles and Films. According to different fabric weight, divided into 1 methods and methods 2.
This Flame Propagation Tester is made according to the US Fire Department NFPA 701 method 2.It is suitable for single or multiple layers of fabric panel for gram more heavily than 700g / m2 (21od/yd2) fabrics, and polyethylene-coated fabric etc.

Standard:
NFPA NFPA 701: 2004,2010 Edition Test Method 2

Main Features
1, Dimensions: length 500 X width 500 X height 2420mm .
2, Burner size: diameter 9.5 mm + 1.5, -0 mm, length 100 ± 10 mm.
3, Weight: 110kg.
4, Flow meter range: 0 ~ 66cc/min.
5, Stainless steel cabinet structur.
6, Stainless steel wire is supplied with Flame Propagation Tester .
7, The Flame Propagation Tester uses imported Bunsen burner conforms to ASTM D 5025 standard.
8, Theflame angle of imported Bunsen burner is 25°.
9,  The Flame Propagation Test Equipment has automatic ignition and extinguished mode.
10, The Flame Propagation Test Equipment adopts needle valve to control the flame height
11, Timer range: 0-99s±0.1 seconds
12, Operating pressure of the burner: 17.5 kPa ± 2.0 kPa
13, Operating gas flow rate: 113 L/hr ± 3 L/hr
14, Flame height: 280±12 mm.
15, The Flame Propagation Test Equipment adopts open box structure.
16, Calcium silicate board cabinet, stainless steel exterior package.
17, Merkel Burner: Burner for heat 10,500 Btu/Hour.
18, Gas release and burning time is set automatically 20 seconds.
19, Standard sample clip is supplied with Flame Propagation Test Equipment.
20, Power: 220V, 50Hz, 110W


Test Method 1 vs Test Method 2... What's the difference?

Test Method 1 applies to materials with a density less than or equal to 700/b/m². Items that fall within this category would be draperies/curtains or other fabrics used as window treatments. They are single layer fabrics. It is usually single-layer fabrics.  The exception to this is when more than one layer is fastened together by sewing or other mechanical means.



Test Method 2 applies to plastic films, vinyl-coated fabric such as blackout linings, or lined curtains that have a vinyl coating.  Decorative materials other than fabrics fall within this category.  fabrics with or without reinforcement or a backing that is used as decoration inside a building must also pass Test 2. This also includes permanent enclosures for building under construction. Of course awnings, plastic tarps, tents, banners or membrane structures must meet the Test 2 requirements. These items cannot be tested to Test 1, only Test 2.  If you aren't sure, please contact the NFPA or visit their website.  The information is quite extensive and detailed.  The purpose of this article was to give the reader a look into the fire certifications that apply to fire retardant/ flame retardancy of plastic sheeting.

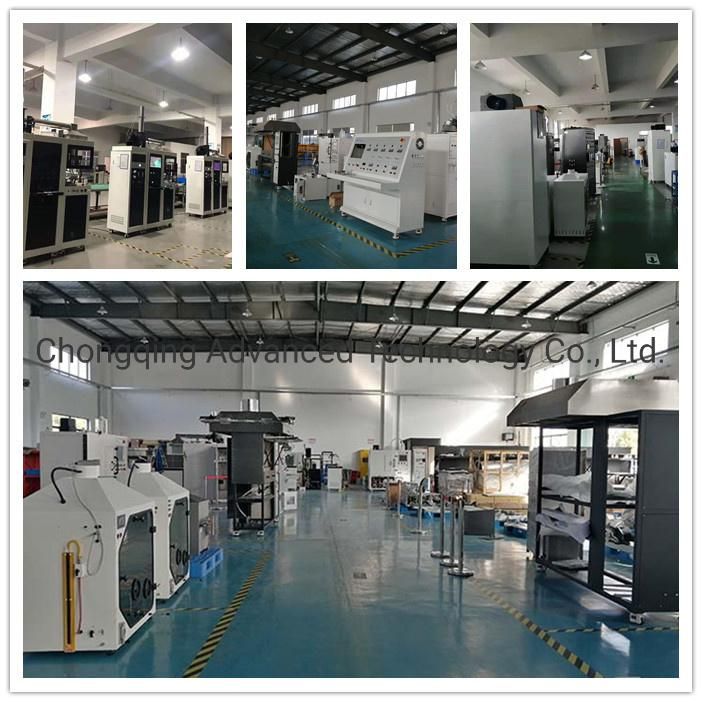

Factory Show
Nfpa701 Method 2 Flame Propagation Test Equipment for Textiles and Films
Customer Feedback

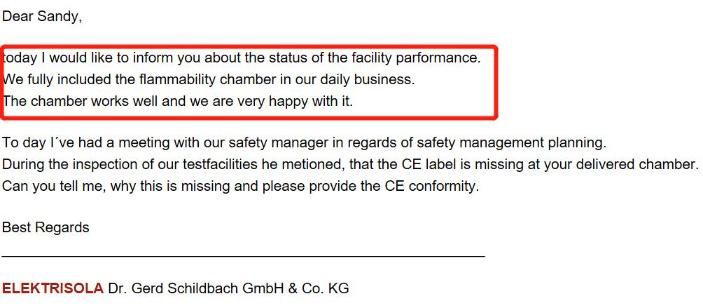

Germany
Nfpa701 Method 2 Flame Propagation Test Equipment for Textiles and Films

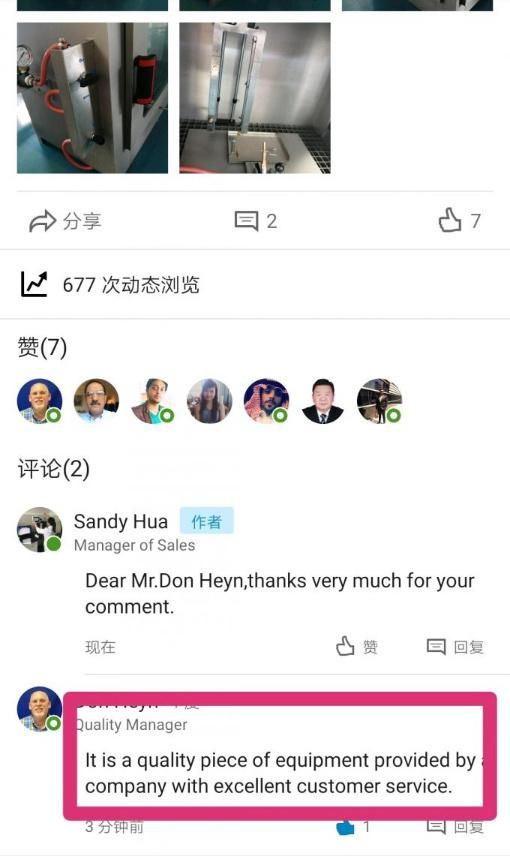

USA
Nfpa701 Method 2 Flame Propagation Test Equipment for Textiles and Films
Transporation
Nfpa701 Method 2 Flame Propagation Test Equipment for Textiles and Films
FAQ
1.What's the delivery time?
About 40 days .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
