• Model NO.：ECscan20,30,40
• Conductivity Accuracy：±1% F.S
• Conductivity Resolution：0.01, 0.1, 1
• Calibration Points：1 to 3 Points
• Temperature Compensation：0~60°c, 32~140°f, Automatic
• Temperature Coefficient：2%,°c
• Cell Constant：K=1, Platinum Conductivity Cell
• Data Hold：Manual or Auto-Endpoint
• Power off：Manual or Automatic (8 Minutes After Last Key Pre
• Sensor Type：Ecscan-C1-10K
• Power：2×1.5V AAA Batteries
• Battery Life：Approximately 200 Hours
• Dimensions：185(L)×40(Dia.)mm
• Weight：100g
• Transport Package：Standard Export Packing
• Trademark：West Tune
• Origin：China
• HS Code：9027809900
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. ECscan20/30/40 Conductivity Accuracy ±1% F.S Conductivity Resolution 0.01, 0.1, 1 Calibration Points 1 to 3 Points Temperature Compensation 0~60°c, 32~140°f, Automatic Temperature Coefficient 2%/°c Cell Constant K=1, Platinum Conductivity Cell Data Hold Manual or Auto-Endpoint Power off Manual or Automatic (8 Minutes After Last Key Pre Sensor Type Ecscan-C1-10K Power 2×1.5V AAA Batteries Battery Life Approximately 200 Hours Dimensions 185(L)×40(Dia.)mm Weight 100g Transport Package Standard Export Packing Trademark West Tune Origin China HS Code 9027809900 Production Capacity 5000PCS/Month

Product Description

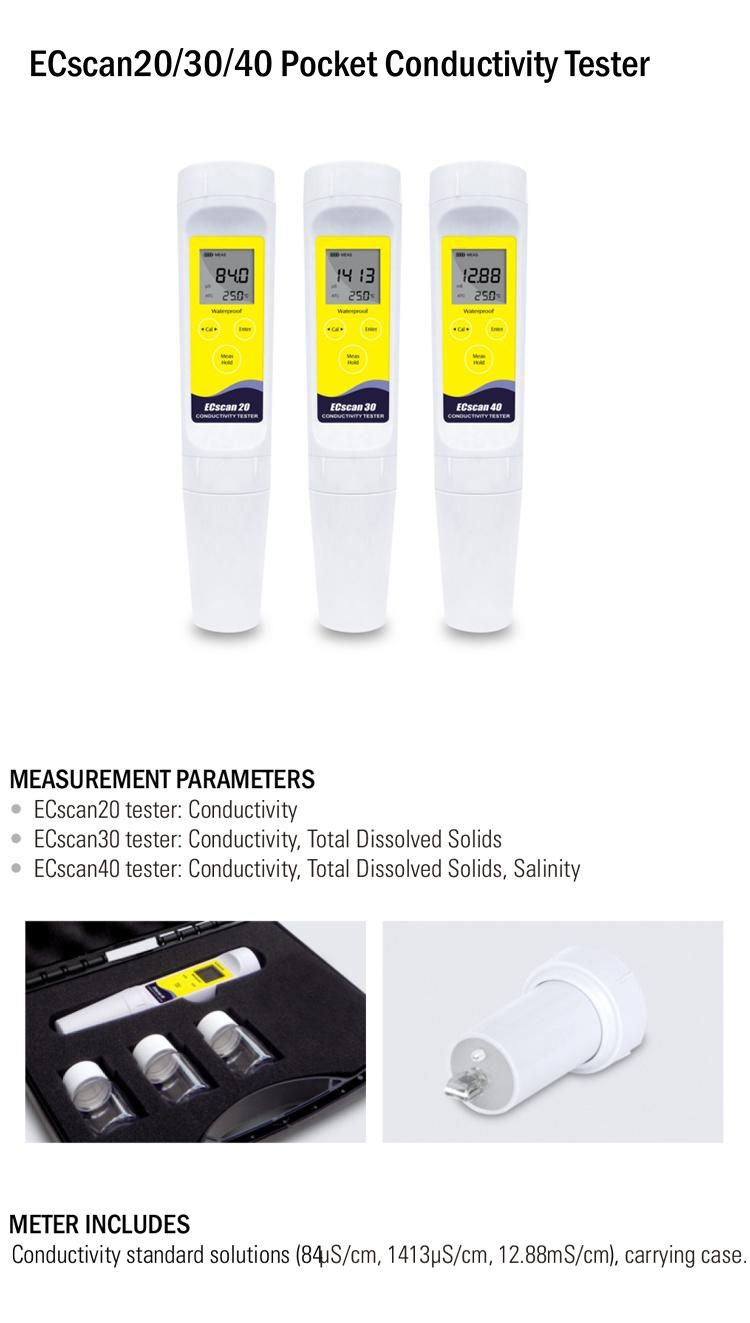

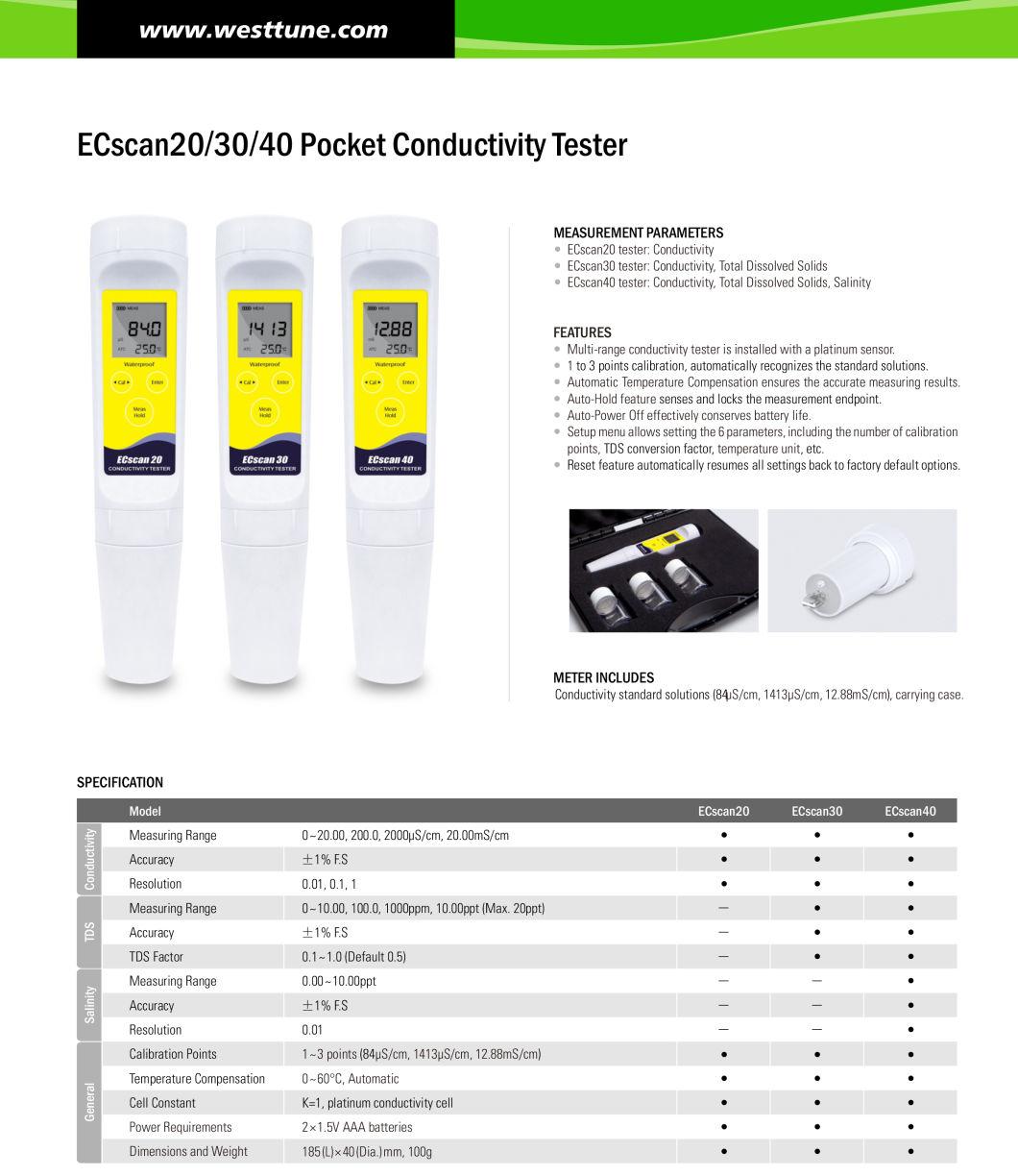

ECscan20/30/40 Pocket Conductivity Tester

MEASUREMENT PARAMETERS
ECscan20 tester: Conductivity
ECscan30 tester: Conductivity, Total Dissolved Solids
ECscan40 tester: Conductivity, Total Dissolved Solids, Salinity

FEATURES
* Multi-range conductivity tester is installed with a platinum sensor
* 1 to 3 points calibration, automatically recognizes the standard solutions
* Automatic Temperature Compensation ensures the accurate measuring results.
* Auto-Hold feature senses and locks the measurement endpoint.
* Auto-Power Off effectively conserves battery life
* Setup menu allows setting the 6 parameters, including the number of calibration
points, TDS conversion factor, temperature unit, etc.
* Reset feature automatically resumes all settings back to factory default options.

METER INCLUDES
Conductivity standard solutions (84μS/cm, 1413μS/cm, 12.88mS/cm), carrying case.

Specification:

Model		ECscan20	ECscan30	ECscan40
Conductivity
Range	0~20.00, 200.0, 2000µS/cm, 20.00mS/cm	√	√	√
Accuracy	±1% F.S	√	√	√
Resolution	0.01, 0.1, 1	√	√	√
Calibration Points	1 to 3 points	√	√	√
Calibration Solutions	84µS/cm, 1413µS/cm, 12.88mS/cm	√	√	√
TDS
Range	0~10.00, 100.0, 1000ppm, 10.00ppt (Max. 20ppt)	/	√	√
Accuracy	±1% F.S	/	√	√
Resolution	0.01, 0.1, 1	/	√	√
TDS Factor	0.1~1.0 (Default 0.5)	/	√	√
Salinity
Range	0.00~10.00ppt	/	/	√
Accuracy	±1% F.S	/	/	√
Resolution	0.01ppt	/	/	√
Temperature
Range	0~60°C, 32~140°F	/	√	√
Accuracy	±1°C	/	√	√
Resolution	0.1°C, 0.1°F	/	√	√
Calibration Points	1 point	/	√	√
Calibration Range	Measured value ±10°C	/	√	√
General
Temperature Compensation	0~60°C, 32~140°F, Automatic	√	√	√
Temperature Coefficient	2%/°C	√	√	√
Compensation Mode	Linear	√	√	√
Cell Constant	K=1, platinum conductivity cell	√	√	√
Reference Temperature	25°C	√	√	√
Data Hold	Manual or Auto-Endpoint	√	√	√
Power Off	Manual or Automatic (8 minutes after last key pressed)	√	√	√
Reset Function	Yes	√	√	√
Sensor Type	ECSCAN-C1-10K	√	√	√
Display	LCD	√	√	√
Power	2×1.5V AAA batteries	√	√	√
Battery Life	Approximately 200 hours	√	√	√
Dimensions	185(L)×40(Dia.)mm	√	√	√
Weight	100g	√	√	√
