• Model NO.：Bante510
• Conductivity Accuracy：±1% F.S
• Conductivity Resolution：0.001, 0.01, 0.1, 1
• Calibration Points：1 to 3 Points
• Temperature Range：0~105°c, 32~221°f
• Temperature Coefficient：0.0~10.0%,°c, Linear
• Cell Constant：K=0.1, 1, 10 or Custom
• Reference Temperature：25°c
• Data Hold：6-Pin Mini Plug
• Transport Package：Standard Export Packing
• Trademark：West Tune
• Origin：China
• HS Code：9027809900
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. Bante510 Conductivity Accuracy ±1% F.S Conductivity Resolution 0.001, 0.01, 0.1, 1 Calibration Points 1 to 3 Points Temperature Range 0~105°c, 32~221°f Temperature Coefficient 0.0~10.0%/°c, Linear Cell Constant K=0.1, 1, 10 or Custom Reference Temperature 25°c Data Hold 6-Pin Mini Plug Transport Package Standard Export Packing Trademark West Tune Origin China HS Code 9027809900 Production Capacity 5000PCS/Month

Product Description

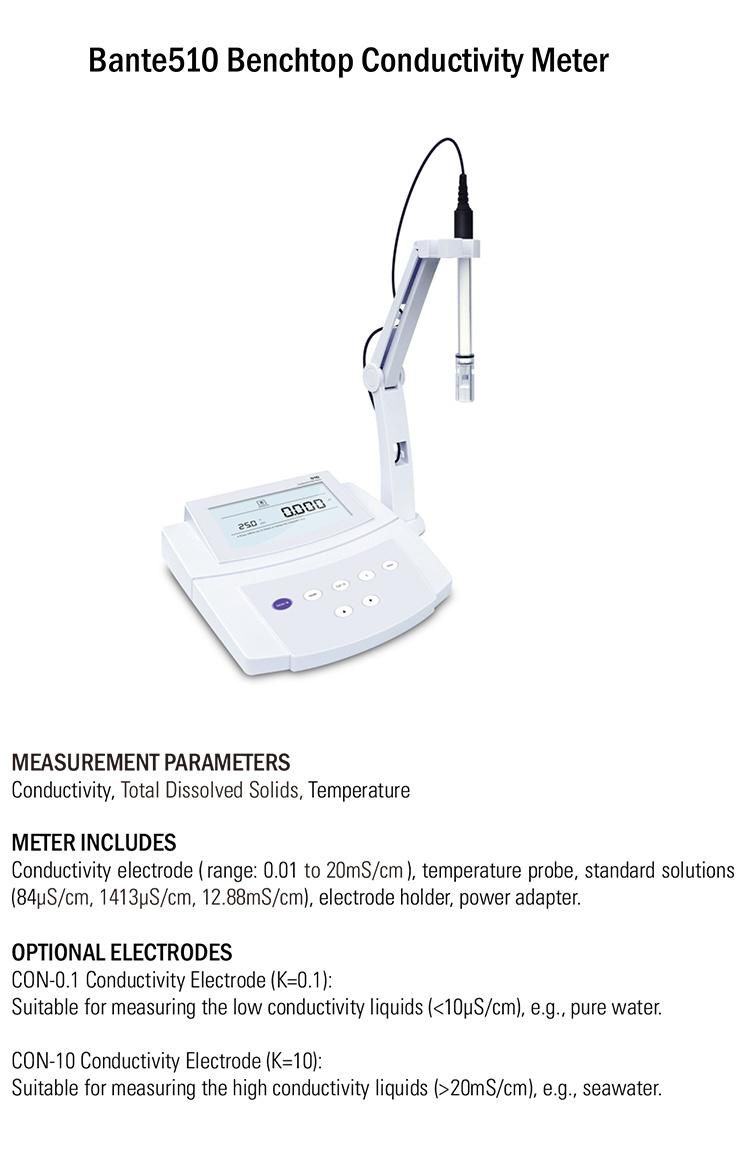

Bante510 Benchtop Conductivity Meter

MEASUREMENT PARAMETERS
Conductivity,Total Dissolved Solids,Temperature
FEATURES
* 1 to 3 points push-button calibration, automatically recognizes the calibration solutions.
* Selectable cell constant (0.1/1/10) , temperature coefficient and TDS conversion factor.
* Automatic Temperature Compensation provides accurate reading over the entire range.
* Auto-Hold feature senses and locks the measurement endpoint.
* Manual temperature calibration corrects the temperature deviation.
*Setup menu allows setting the 6 parameters, including the number of calibration points,temperature unit,etc.
* Reset feature automatically resumes all settings back to factory default options
METER INCLUDES
Conductivity electrode ( range: 0.01to 20mS/cm), temperature probe, standard solutions
(84μS/cm, 1413μS/cm, 12.88mS/cm),electrode holder, power adapter.
OPTIONAL ELECTRODES
CON-0.1 Conductivity Electrode (K=0.1):
Suitable for measuring the low conductivity liquids (<10μS/cm), e.g., pure water.
CON-10 Conductivity Electrode (K=10):
Suitable for measuring the high conductivity liquids (> 20mS/cm), e.g., seawater.

Specification:

Model	Bante510
Conductivity
Range	0.01~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
Accuracy	±1% F.S
Resolution	0.001, 0.01, 0.1, 1
Calibration Points	1 to 3 points
Calibration Solutions	10µS/cm, 84µS/cm,1413µS/cm,12.88mS/cm,111.8mS/cm
TDS
Range	0~10.00, 100.0, 1000ppm, 10.00, 100.0ppt (Max. 200ppt)
Accuracy	±1% F.S
Resolution	0.01, 0.1, 1
TDS Factor	0.1~1.0 (Default 0.5)
Temperature
Range	0~105°C, 32~221°F
Accuracy	±0.5°C
Resolution	0.1°C, 0.1°F
Calibration Points	1 point
Calibration Range	Measured value ±10°C
General
Temperature Compensation	0~100°C, 32~212°F, Manual or Automatic
Temperature Coefficient	0.0~10.0%/°C, linear
Cell Constant	K=0.1, 1, 10 or Custom
Reference Temperature	25°C
Data Hold	Manual or Auto-Endpoint
Connector	6-pin mini plug
Display	LCD
Power	DC9V, using AC adapters, 220VAC/50Hz
Dimensions	210(L)×205(W)×75(H)mm
Weight	1.5kg
