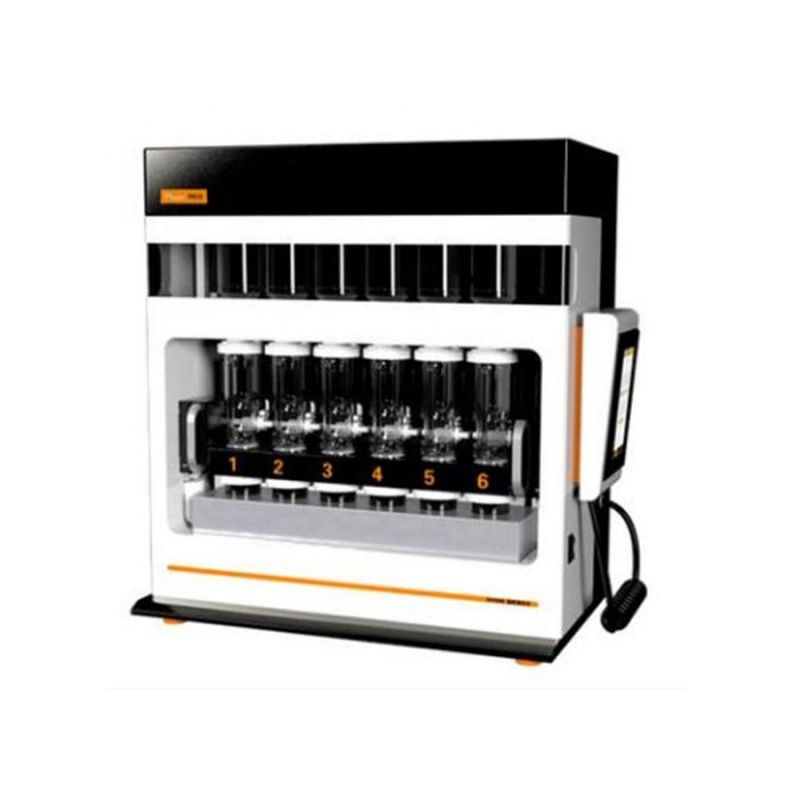

       TP606 Efficient Fat Analytical Instrument
  ApplicationWidely used in agriculture, food, environment and industry. It is an ideal instrument for the determination of fat in food, oil,feed and other industries; it can also be applied to the extraction of soluble organic compounds in drugs, soil, sludge,detergents and other substances.
Parameters
Temperature control range: room temperature +5 ° C ~ 300 ° C Measuring range: 0.1% to 100% Temperature control accuracy: ±1 °C
Repeatability error: 1% Measuring sample weight: 0.5g ~ 15g Processing capacity: 6 / batch Heating cup volume: 150ML Solvent
recovery rate: ≥85% Measurement time: 20% to 80% shorter than the traditional method Power: 220 VAC ±10% 50HZ Rated power: 2.0 KWDimensions (length × width × height): 650mm × 380mm × 720mm Net weight: 50 KG.
 FeaturesAll organic solvents can be used, including benzenes, ethers, ketones, etc., to meet the conditions of use of various organic solvents. • Fully automatic standard Soxhlet extraction, all channels are glass and PTFE, eliminating the possibility of introducing any impurities, high accuracy • Start and pause with one button, flexible control of the experiment process• External wall-mounted controller, convenient and flexible, simple and fast• Vertical screen panel, Android-style interface, simple and user-friendly • Five unique extraction methods for experimenters to choose from • Preset common reagent options, repeat the experiment with one button and easily get it • Integral embedded metal heating for faster heating, higher efficiency and lower power consumption • Incoming and outflow water temperature monitoring and flow control, with real-time monitoring of condensate,
ensuring resources and environmental protection based on experiments • Instrument abnormal real-time monitoring system with ether leak alarm to ensure the smooth progress of the experiment and personnel safety • Efficient solvent recovery system to reduce reagent waste
All-solvent universal instrument The TP606 Soxhlet extractor uses all-glass and PTFE materials as experimental channels. The uniquely designed gasket ensures the stability of the channel. All organic solvents, including benzenes, ethers and ketones, can be used to meet various needs. The conditions of use of the organic solvent can be easily accomplished in one machine regardlessof the extraction of the sample. Integral embedded metal heating The TPX606 Soxhlet extractor uses integral embedded metal heating for faster heating, better smoothness and lower energy consumption.  Reliability and economy TP 6 0 6 Soxhlet extractor adopts all-round temperature monitoring and flow control of water inlet and outlet, which can greatly reduce the waste of condensed water under the premise of ensuring sufficient condensation, which is reliable and saves water resources.  Android style interface The STP 6 0 6 Soxhlet extractor features a vertical screen panel with an Android-style interface, and the console is easy and free, allowing users to easily complete the experiment in a simple and user-friendly operation. HJ 650-2013 Soils, sediments Determination of dioxins Isotope dilution - High resolution gas chromatography - Low resolution mass spectrometry HJ 703-2014 Soil and sediment Determination of phenolic compounds Gas chromatographyHJ 77.4-2008 Soil and sediment Determination of dioxins Isotope dilution high resolution gas chromatography - High resolution mass spectrometry HJ 743-2015 Soil and sediment Determination of polychlorinated biphenyls - Gas chromatography - mass spectrometry HJ 784-2016 Soil and sediment Determination of polycyclic aromatic hydrocarbons - High performance liquid chromatography

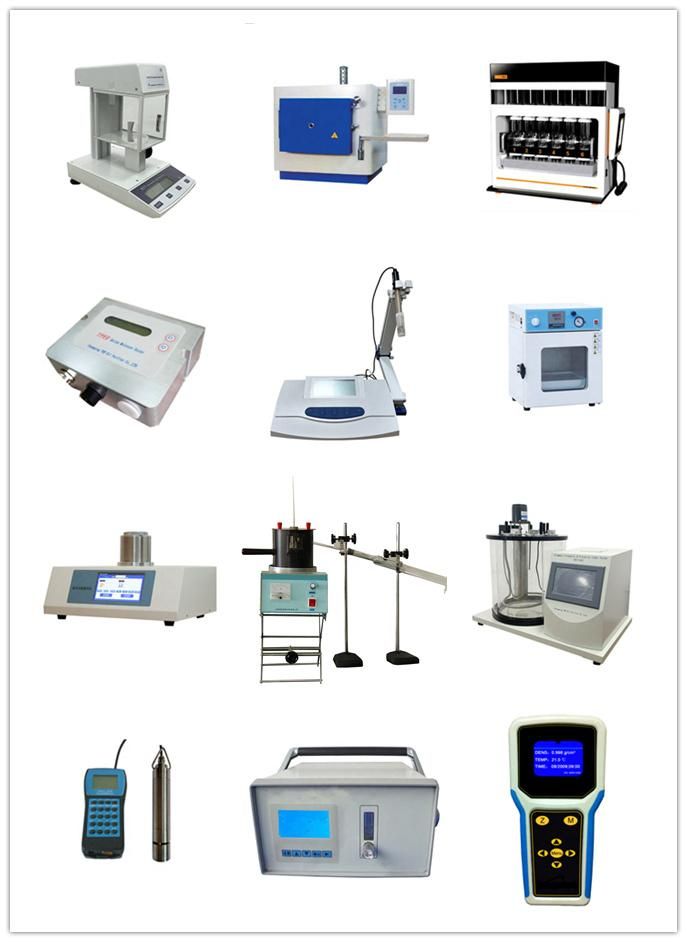

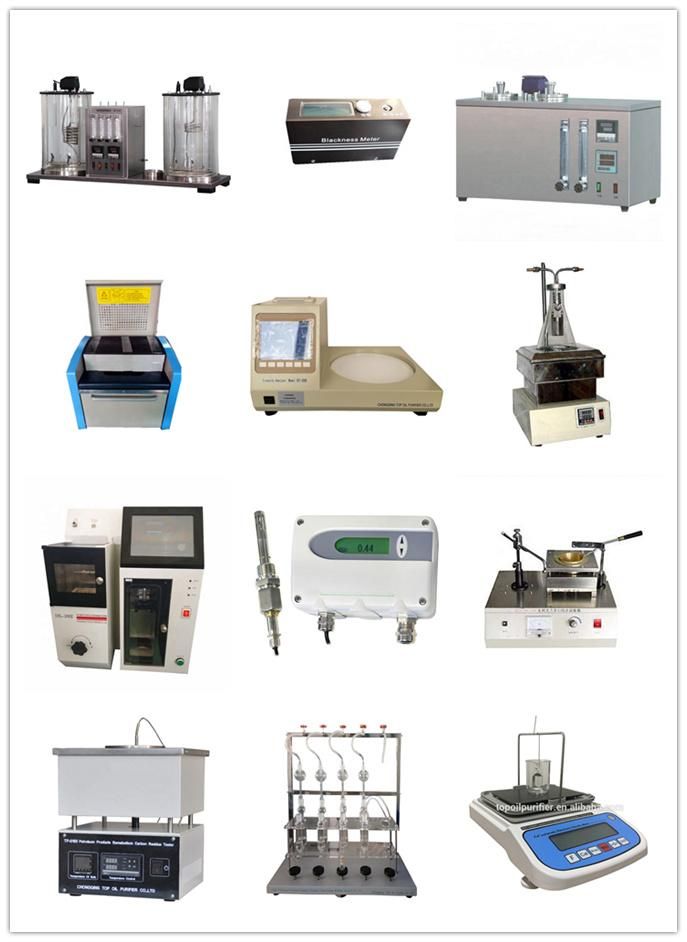

Related Products1. Water Content Tester TP-2100
2. Digital Karl Fischer Water Content Tester TP-6A
3. Kinematic Viscosity Tester VST-2000
4. Kinematic Viscosity Tester TPV-8
5. Kinematic Viscosity Tester VST-3000
6. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7. Automatic Surface/Interface Tension Tester IT-800
8. Automatic Open Cup Flash Point Tester TPO-3000
9.Closed Cup Flash Point Tester TPC-3000
10.Digital Open Cup Flash Point Tester TPO-10011.Digital Closed Cup Flash Point Tester TPC-100
12.Cloud Point & Pour Point Tester PT-2000
13.Multi-functional Vibration Tester VBT-2000
14.Automatic Potentiometric Titrator TP668
15.Petroleum Products Density Tester DST-3000
16.Karl Fischer Volumetric Water Content Titrator TPD
17.Distillation Range Tester DIL-201
18.Online Oil Quality Tester PTT-002
19.Copper Corrosion Tester TP-113
20.Dew Point Tester DPME-P



 Packing & Delivery

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China

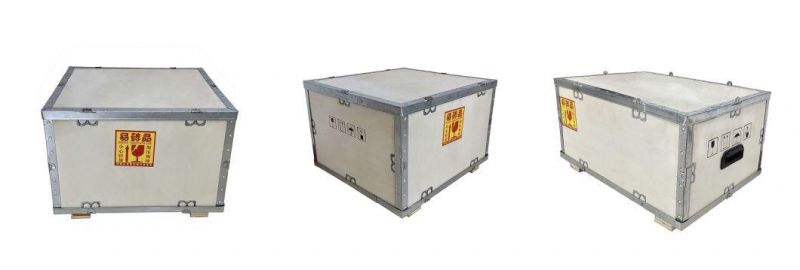

Packing Method	Internaional Standard Wooden Case
