• Model NO.：TOP-1200
• Trademark：TOP
• Origin：Zhejiang, China (Mainland)
• HS Code：9031809090

Basic Info.

Model NO. TOP-1200 Trademark TOP Origin Zhejiang, China (Mainland) HS Code 9031809090

Product Description

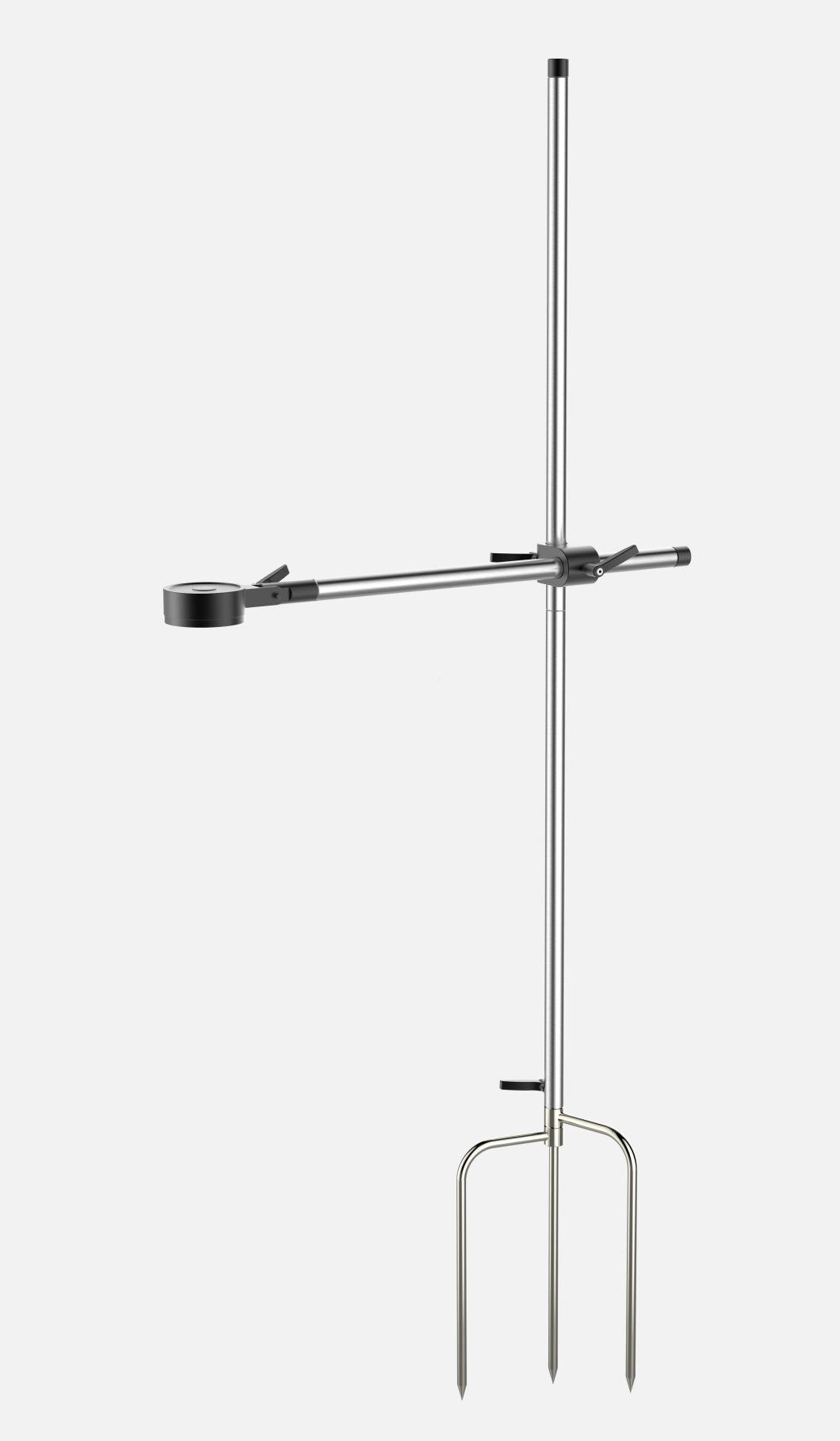

Name:Plant Canopy analyzer

Model :TOP-1200





 Features

TOP-1200 Plant Canopy Analyzer is widely applied for farming production and agricultural research, canopy energy resource investigation, measuring the light interception among plant canopy, and research the relation between plant growth & development, production quality, and light utilization.


Characteristic

• High waterproof grade: all aluminum alloy, waterproof grade IP67.
• Using visible/near-infrared light reflection spectrum technology and multi-channel spectral information scanning technology. The vegetation surface parameters, plant canopy information, plant nutrient information, soil nutrient information, environmental parameters, plant pests, and diseases can be quickly determined.
• Many software analysis functions: it can analyze the vegetation index RVI, CMM, nitrogen content in the crop leaf layer, nitrogen accumulation, leaf area index, leaf dry weight, etc.

Technical Parameter
 Working environment: 0~ 60 ºC, 0 ~ 100% RH (no condensation of water vapor)
Storage environment:-10 ~ 80ºC,  0 ~ 40% RH
Power supply: 8 ~ 12VDC
Light Source: LED
Center Wavelength: 680nm, 800nm
Spectral bandwidth: <8nm FWHM
View angle: 30 °
Acquisition area: 0.23 ~ 0.38m²
Channel: 2
