• Model NO.：AU1001-96
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Customized：Non-Customized
• Transport Package：Carton
• Trademark：Healicom
• Origin：Jiangsu, China
• HS Code：9019101000
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. AU1001-96 Power Supply 220V Weight 0-50kg Certification CE Customized Non-Customized Transport Package Carton Trademark Healicom Origin Jiangsu, China HS Code 9019101000 Production Capacity 10000PCS/Year

Product Description

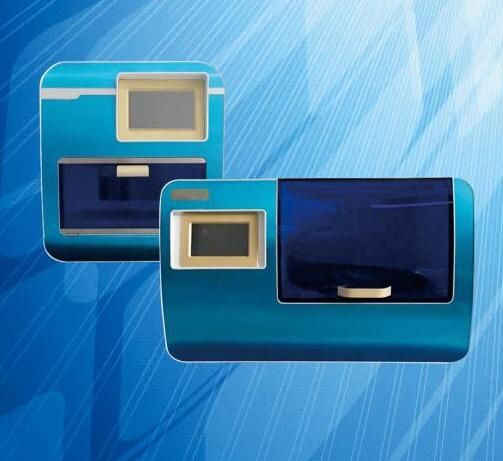

Color LCD Screen Touch Operation fast digital Automatic nucleic acid extraction system

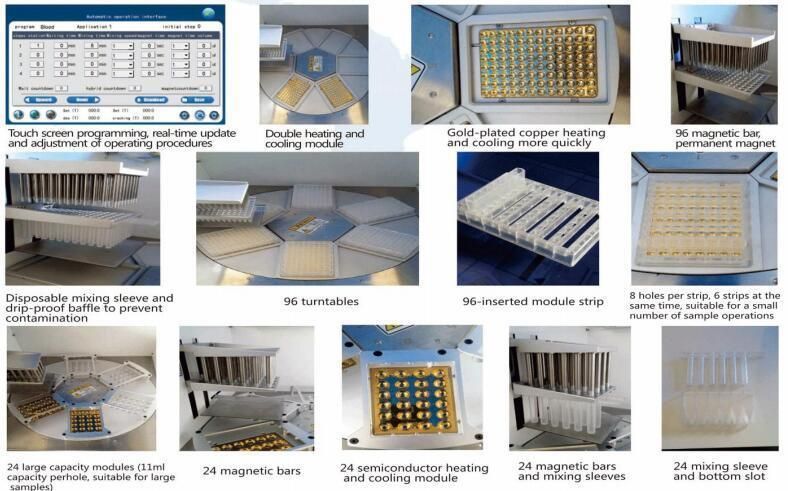

Instrument features
High- throughput automatic : Using our superior magnetic bead transfer technology, 96 magnetic bars work at high speed, you only need to click on the screen, 96 samples are completed in 20-40 minutes, and the sample can be processed up to 1000 copies per day. Customers with quantitative needs provide standardized solutions.
Multi-modular configuration : The 96-well module and the 24-well module are freely switchable. The 96-well module has a single-wellvolume of 2.2ml, and the 24-well modules have a single-well volume of 11ml. Customers no longer have to worry about the large amount of sample loading.
Temperature control : heating and cooling dual temperature control design with lysis and elution to complete the experiment efficiently, the heating module can quickly heat up to 120 C. combined with the deep-well plate
and 96 holes without temperaturediference to ensure experimental uniformity. The cooling module can quickly cool the holeto4' "C, and it is safe to store the nucleic acid without transferring it immediately.
Intelligent operating system : The instrument is equipped with windows pad dual workingsystem, large-capacity memory, can store 700 programs, intelligent programming can let the device stop and run, do whatever you want, so that your experimental program is no longer monotonous The external port can be incorporated into the sample library management system and is the best partner for sample library quality control,
Repeatability : 96 permanent magnets have been tested for thousands of times. The magnetic stability guarantees that the recovery rate of each magnetic bead is above 99%, and it is perfectly matched with the stirring sleeve. The working position, the hole spacing and the reagent plate reach the best status. In a reasonable operation mode, there will never be an overflow cross-contamination,
Application : Based on the above characteristics , this product is widely used in biological sample library for large sample quality control, large molecular sequencing platform, clinical testing, neonatal prenatal screening, model animal platform, genetically modifed crop research. Five of the top ten molecular diagnostics in the country use our products and have good cooperation with hundreds of research institutes. What is more worth mentioning is that our products have helped the China Center for Disease Control and Prevention, and the China National Food and Drug Administration and other large scale national laboratories have prowided great help in scientific research and practical applications.

About the product


AU1001 flexible andvarfiable reagent strip design
