• Model NO.：GC1290
• Trademark：TOP
• Origin：Zhejiang, China (Mainland)
• Production Capacity：200 Piece,Pieces , Week

Basic Info.

Model NO. GC1290 Trademark TOP Origin Zhejiang, China (Mainland) Production Capacity 200 Piece/Pieces / Week

Product Description

Characteristics Column Compartment/oven with superior thermal performance, multistage (10 ramps) programmed temperature control function. (supported by "control system") Advanced built-in data acquisition system , supporting real time instrument status monitoring, detection signal acquisition and PC control Column oven accommodates up to 3 chromatographic columns, and supports quick heat-up and rapid cool-down with automated back-door opening. 450ºC to 50ºC in 6 min at 25ºC ambient) Flexible sample introduction system: 3 sample injectors could be installed and operated simultaneously with independent temperature control. High sensibility and stability detector. 2 independent and analog signals output. Clarity software, compatible with GLP/FDA-21 CFR Part11 requirements and regulations. (electronic records and signatures) Special analyzers, like RGA, NGA, PINDA, etc. according to ASTM standards Superior performance with advanced, microcomputer-based temperature control system High temperature accuracy (optimum ± 0.02ºC), high reliability, and anti-interference Self-diagnosis/ self-protection function (overheat protection, power-off protection, etc.) Intuitive display of timing program, detector status, measurement range, current setting, etc Technical parametersHigh Performance Liquid Chromatography
Superior high-pressure pump achieves accurate solvent delivery with high-precision and low-fluctuation.
Advanced and innovative design modules provide high reliability and accuracy for long time operation.
The pump works in parallel and ensures accuracy and duration.
Different kinds of detectors, including UV/VIS detectors and refractive index detectors etc., provide stronger detection capability
and more options.
Pumping system: Isocratic system and gradient system.
UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.

A truly effective HPLC
All maintenance parts are accessible from the front panel for quick replacement without disassembling the instrument
The monitoring system will stop the pump if pre-limit pressure is exceeded
All components are controlled intelligently through a workstation

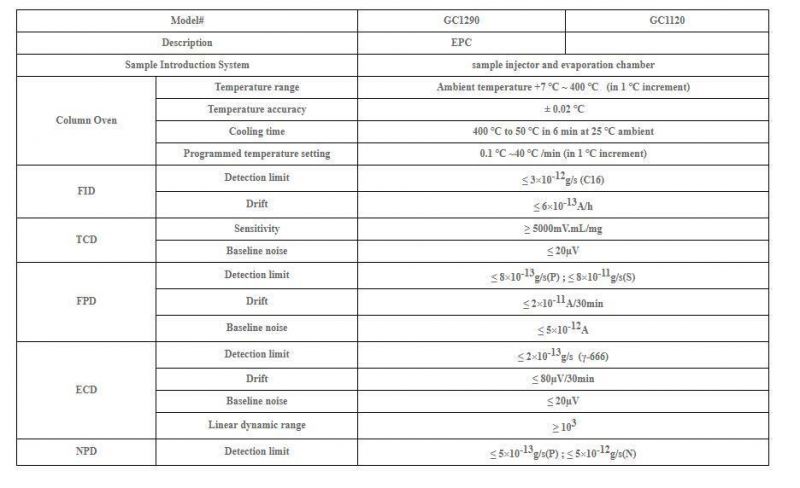

Multiple data analysis functions, flexible peak identification, and data management, etc Technical parameters
