• Model NO.：HTI-T
• Gas Supplies：Compressed Air and Propane
• Middle Hole of Sample Support Frame：50mm X 50mm
• Function：Determination of Heat Transmission
• Height of Crucible：80 Kw,M2
• Sample Size：140mmx 140mm
• Applicating：Protective Clothing Testing
• Timer Accuracy：0.1s
• Diameter of Copper Calorimeter：40mm
• Thickness of Copper Calorimeter：1.6mm
• Weight of Copper Calorimeter：18g
• Dimension of Aluminum Calorimete：149mm X 149mm
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. HTI-T Gas Supplies Compressed Air and Propane Middle Hole of Sample Support Frame 50mm X 50mm Function Determination of Heat Transmission Height of Crucible 80 Kw/M2 Sample Size 140mmx 140mm Applicating Protective Clothing Testing Timer Accuracy 0.1s Diameter of Copper Calorimeter 40mm Thickness of Copper Calorimeter 1.6mm Weight of Copper Calorimeter 18g Dimension of Aluminum Calorimete 149mm X 149mm Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 10 Sets/Month

Product Description

Introduction
A new term heat transfer index (HTI) has been introduced to avoid confusion with the thermal protective index (TPI) or other terms used in previous versions of this test. HTI calculated from the mean time in seconds to achieve a temperature rise of 24±0.2ºC when testing by this method using a copper disc and a starting temperature of 25±5ºC. The heat transfer index provides a method of grading materials which does not imply that the material tested will give any precise protective time under actual use conditions.


Standard

• ISO 9151--Protective clothing against heat and flame -- Determination of heat transmission on exposure to flame;
• BS EN 367--Protective clothing. Protection against heat and fire. Method for determining heat transmission on exposure to flame.

Features
1. The Heat Transmission Test Apparatus is consists of a control box and stainless steel test gantry;
2. The copper calorimeter is made from 99% copper; diameter 40mm, thickness 1.6mm, weight 18g; constantan thermocouple;
3. There is 1.6mm thick copper sample support frame; the size is 150mmx150mm, the middle hole of 50mm x 50mm;
4.  Aluminum calorimeter; dimensions of 149mm x 149mm; thickness of 6mm; intermediate pore size 90mm; weight 264 ± 13g;
5. The specimen support frame is made of stainless steel; And the sample distance is 50mm from the burner mouth;
6. The heat transfer index tester is quipped the imported Meckel burner from the USA; the burner orifice diameter is 38mm ± 2mm;
7. Inlet flow control valve precisely adjust the flame to burn calories
8. Pressure gauge and pressure regulator is imported brands;
9. The metal plate is placed between the burner and heat the sample, can be freely moved away;
10. Timer accuracy is 0.1s;
11. The sample size 140mmx 140mm;
12. The Heat Transfer Index Test Apparatus is equipped with a metal plate;
13.  PLC and touch screen intelligent control system;; the system automatically calculates the caloric value;
14. The Heat Transfer Index Tester has function of automatic ignition, automatic timing;
15.  The test data is automatically saved and retrieval system, the test report can be printed freely;
16.  Thermocouple accuracy is 0.1 ºC;
17.  Power supply: 220V 50 / 60Hz

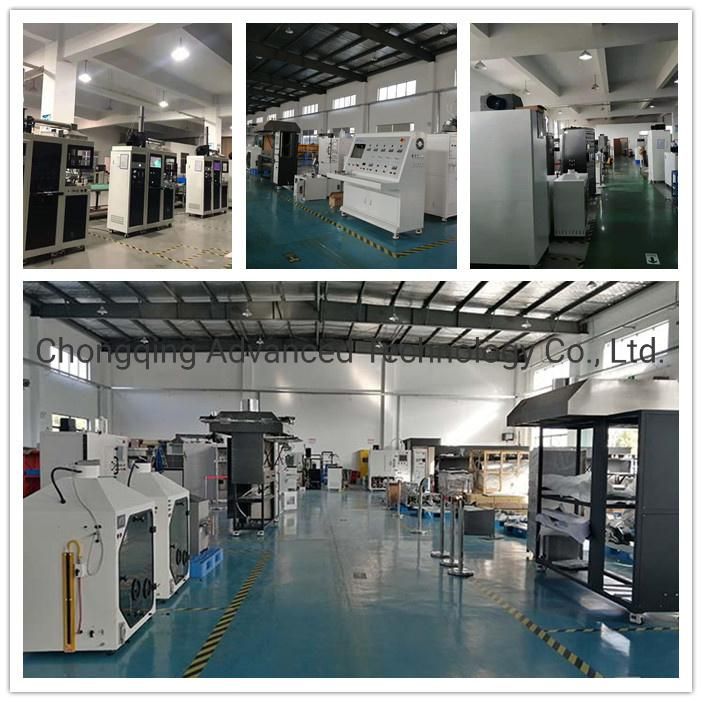

Factory Show

Customer Feedback

Germany

USA

Package

Transporation

FAQ
1.What's the delivery time?
About 40 days .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
