• Model NO.：COI
• Gas Supplies：Oxygen,Nitrogen and Propane
• Color：White
• Display：LCD Touch Screen
• Repeatability：±0.1% Oxygen
• Linearity：±0.1% Oxygen
• Oxygen Sensor：Paramagnetic Oxygen Sensor
• O2 Concentration Measuring Range：0~100%
• Response Time：< 10s
• Glass Column Inner Diameter：80mm
• Height of Glass Column：500mm
• Test Time：5 Mins
• Transport Package：Plywood Case
• Specification：high temperater quartz glass
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. COI Gas Supplies Oxygen,Nitrogen and Propane Color White Display LCD Touch Screen Repeatability ±0.1% Oxygen Linearity ±0.1% Oxygen Oxygen Sensor Paramagnetic Oxygen Sensor O2 Concentration Measuring Range 0~100% Response Time < 10s Glass Column Inner Diameter 80mm Height of Glass Column 500mm Test Time 5 Mins Transport Package Plywood Case Specification high temperater quartz glass Trademark AI Origin China HS Code 9031809090 Production Capacity 50 Sets/Month

Product Description

Introduction:
This Limited Oxyen Index Tester for the determination under the test conditions specified in oxygen and nitrogen gas mixture just to maintain a minimum sample combustion oxygen concentration required. This tester is equipped with imported paramagnetic oxygen sensor and imported mass flow controller to make sure the measurement accuracy and durability. For the assessment of the performance of a homogeneous combustion of solid materials, laminates, foams, films and films under specified conditions.

Standard: ASTM D 2863, ISO 4589-2

Technical Parameters:
1, The oxygen concentration measurement range: 0~100%;
2, The oxygen concentration in accuracy of ± 0.1%
3, N₂ mass flow controller range:1.0~15.0L/min;Accuracy:2%
4, O₂ mass flow controller range:1.0~15.0L/min;Accuracy:2%
5, Oxygen sensor response time: <2s;
6, Response time of equipment < 10s
7, The gas flow rate in combustion column is 40mm / s ± 2mm /s;Concentration regulation accuracy ± 0.1%;
8, The gas flow rate in top of the combustion tube is 90mm ± 10mm/s;
9, Portable igniter, downward spray 16 ± 4mm, flame adjustable range 10 ~ 30mm.
10, The measurement time is 5 mins, and the accuracy is ± 0.5s.
11, Double flow meter and pressure gauge device: accuracy ± 1%;
12.Working pressure:0.1Mpa;
13.Glass column inner diameter: 80mm , heigh 500mm.

Main Features:
1, Imported paramagnetic oxygen oxygen concentration sensor.
2, The oxygen index meter is equipped with a high temperature quartz glass column, the opening DIAM. of column cap is 40mm.
3. The LOI meter is supplied with samples holders for physically self-supporting specimens and supported film or sheet test specimens,
4. Mass flow controller automatically adjusts oxygen and nitrogen gas flow rate according to set concentration.
5. The patented gas flow mixing control unit is equipped with nitrogen and oxygen mass flow controllers to precisely control the gas flow.
6. After the oxygen concentration is set on the screen, the PLC touch screen control system will automatically adjust the oxygen concentration according to the set value. Accurate and convenient;
7. Patented gas mixing chamber ensures more accurate determination of oxygen concentration and more sufficient mixing of oxygen and nitrogen
8.The color LCD touch screen displays the parameters of flow, time and test results in real time.
9. The limited oxyen index tester is equipped with special igniter, easy to operate.

Control System:
1,PLC and touch screen make the test more automatic.
2, After the oxygen concentration value is set, the system automatically adjusts the oxygen concentration.
3,The key electrical components are imported, accurate, reliable and durable;
4, The oxygen index tester is equipped with an automatic calibration system to avoid the influence of the oxygen sensor drift due to the environmental impact on the test results.
5.One button automatic calibration system, convenient and fast, avoid the trouble of regular calibration.
6.The OI tester is equipped with safety protection circuit.
Configuration

No.	Description	No.	Place of Origin	REMARKS
1	Paramagnetic oxygen sensor	1	UK	SERVOMEX
2	O2 Mass flow controller	1	Japan	KOFLOC
3	N2 Mass flow controller	1	Japan	KOFLOC
4	Flowmeter	1	Japan	KOFLOCK
5	Scram button	1	China	CHNT
6	Switch	1	China	CHNT
7	Circuit breaker	1	China	CHNT
8	Relays	5	China	CHNT
9	Burning torch	1	China	AIC
10	Compression release valve	2	China	AirTac
11	Pressure gauge	2	China	AirTac
12	PLC	1	China	Xinje
13	Touch screen	1	China	Xinje
14	Solenoid valve	2	China	JULIANG
15	Sample holder	2	China	AIC
16	Glass burning tube	2	China	AIC

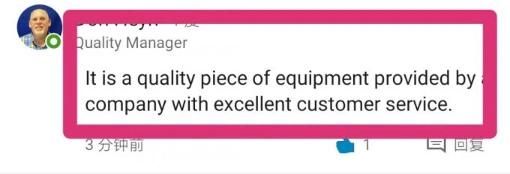

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 40 days .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
