Laboratory Waste Water BOD Measuring Instrument 1-7 Results
Shanghai Lianhua Industrial Co., Ltd.- After-sales Service：on-Line Support
- Warranty：One Year
- Model：Lh-BOD601(L)
- Application：Wastewater Treatment
- Range：0-4000mg,L
- Display：LCD
Base Info
- Model NO.：LH-BOD601(L)
- Bottles：6
- Period：1-7 Days
- Method：Manometric
- Printer：Built-in
- Indicator：Biochemical Oxygen Demand
- Type：Laboratory
- Name：BOD Tester
- Transport Package：Express,Carton
- Specification：310*290*330mm
- Trademark：Lianhua
- Origin：Shanghai
- HS Code：9027809990
- Production Capacity：10000 Pieces,Year
Description
1 >Product Introduction
It is important for wastewater treatment plants to measure Biochemical Oxygen Demand (BOD) to quantify the potential for effluent water to deplete the oxygen in the receiving stream.LH-BOD601(L) BOD instrument with BOD reagent for Biochemical Oxygen Demand testing help wastewater treatment plants achieve optimum BOD measurement while allowing keeping a high level of operational efficiency. It is used manometric method, can choose 1-5 days testing period.
The main advantages of this METER are:
- simplicity: no dilution of sample required, no seeding, no blank sample.
- direct reading of BOD value.
- continuous display of BOD value at the current incubation time.
2 >Functional characteristics
(01) At the same time can be measured in a sample of 6;
(02) Built-in printer, automatic daily print data;
(03) LCD display, the sample values with different colors, intuitive and clear;
(04) Has a plurality of stirring mode (batch, continuous), prolong the service life of the instrument;
(05) The culture period can be adjusted according to the demand, can choose 1-7 days;
(06) To view the test process and the test data, no historical data;
3 >Technical Parameters
| Instrument name | Biochemical Oxygen Demand (BOD5) Instrument |
| Instrument model | LH-BOD601(L) |
| Measurement range | 0-4000mg/L |
| Measuring error | ±5% |
| Cycle length | 1-7days |
| Measure amount | 6 |

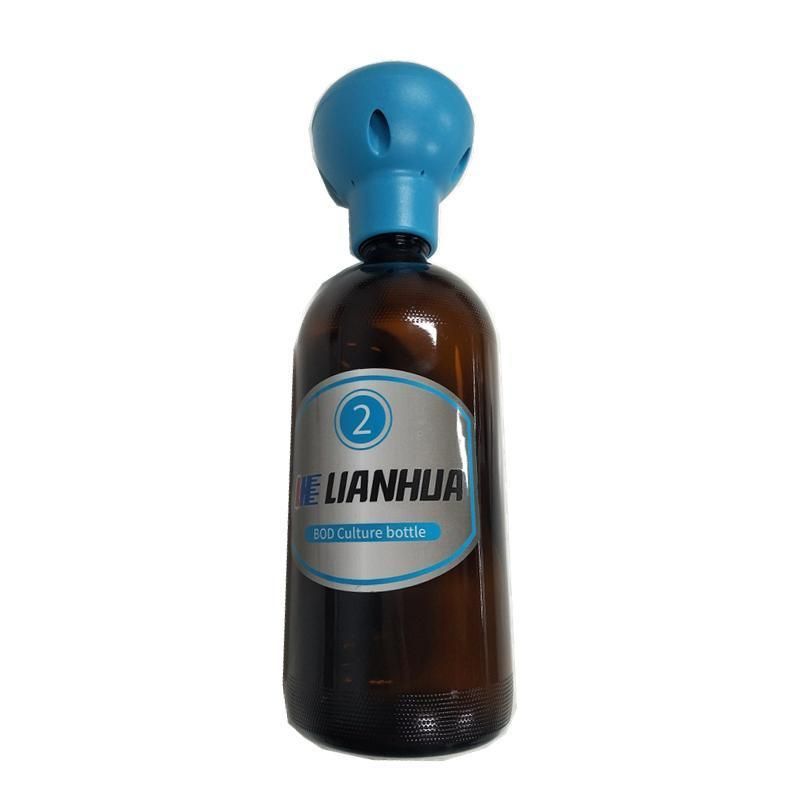

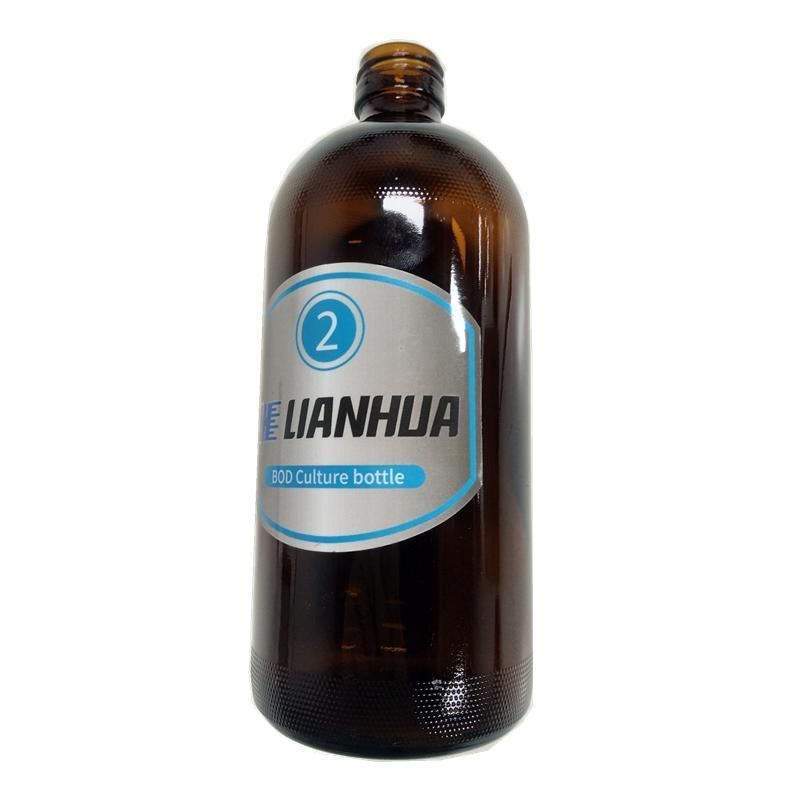

| Culture bottle volume | 580ml |
| Data storage | 5 years |
| Communication | USB |
| Culture temperature | 20±1 |
| Working power | 220-230V 50-60HZ |
| Rated power | 24W |
