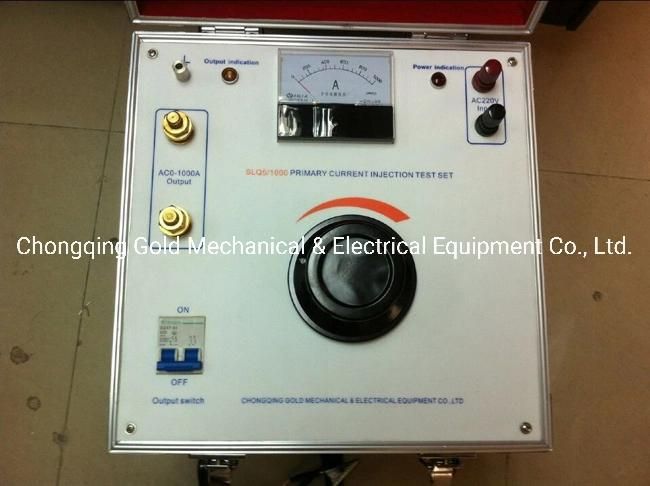

500A 1000A Separated Type Primary Current Injection Tester Large Current Tester for Current Test
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Capacity：3~60kVA
- Junior Range V1：220V or 380V
- Function：Supply Large Current for Temperature Rising Test

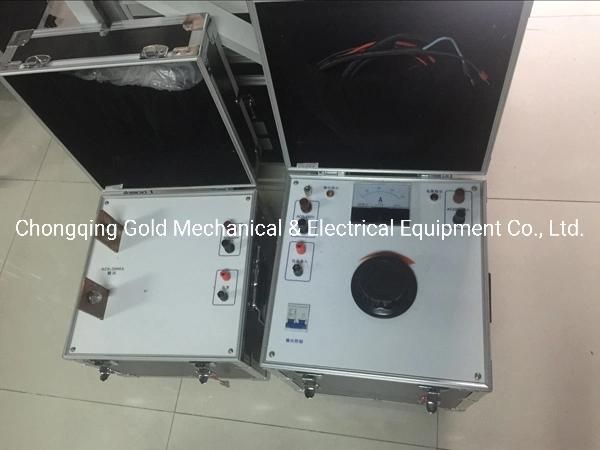

- Structure：Both Single and Seperated Structure Is Optional
- Usage：Hipot Tester
- Output Current：13A to 375A
Base Info
- Model NO.：SLQ
- Power Supply：220V, 50Hz
- Application：Large Current Generator Instrument
- Type：Bench Type, Desktop Type, Not Portable
- Warranty Period：12 Months
- Transport Package：Standard Wooden Case
- Specification：65kg
- Trademark：GOLD
- Origin：Chongqing, China (Mainland)
- HS Code：9031809090
- Production Capacity：200pieces,Month
Description
Model
Capacity (kVA)
Junior Range
Secondary Range
Dimensions (mm)
L×W×H
Weight
( kg)
Structure
V1
A1
V2
A2
SLQ-3/500
3
220
15
6
500
430×338×550
45
Integrated
SLQ-6/1000
6
220
27
6
1000
500×380×600
65
Integrated
SLQ-12/2000
12
380
31.6
6
2000
580×400×750
105
Integrated
SLQ-15/2500
15
380
39.5
6
2500
600×430×790
145
Integrated
SLQ-24/4000
24
380
63
6
4000
640×450×820
180
Separated
SLQ-30/5000
30
380
79
6
5000
600×430×900
300×500×500
145
135
Separated
SLQ-36/6000
36
380
95
6
6000
600×430×900
300×500×500
150
140
Separated
SLQ-48/8000
48
380
126
6
8000
600×450×950
350×550×550
180
Separated
SLQ-60/10000
60
380
158
6
10000
800×600×1100
380×550×600
200
Separated
Working environment
0-50ºC, ≤85%RH
The capacity and maximum current output could be customized according to the requirements of customer if you can not find the one you need in this table.
