• Model NO.：Noack-BA
• Type：Evaporation Loss Tester
• Test Standard：ASTM D5800,DIN 51581
• Power Supply：AC 220V+_10%, 50 Hz
• Test Method：Noack B Non Wood′s Metal
• Application：Determine The Evaporation Loss of Lubricating Oil
• Color：White
• Temperature：Ambient ~ 300 ° C
• Temp.Accuracy：± 0.5 ° C
• Pressure Range：0 ~ 25 mm H2O
• Heating：Metal Bath
• Heating Power：2kw
• Test Time：About 1 Hour
• Software Language：English
• Dimension：310*530*480mm
• Weight：26kg
• Transport Package：Hardboard
• Specification：Small
• Trademark：AI
• Origin：China
• HS Code：9027809990
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. Noack-BA Type Evaporation Loss Tester Test Standard ASTM D5800,DIN 51581 Power Supply AC 220V+_10%, 50 Hz Test Method Noack B Non Wood′s Metal Application Determine The Evaporation Loss of Lubricating Oil Color White Temperature Ambient ~ 300 ° C Temp.Accuracy ± 0.5 ° C Pressure Range 0 ~ 25 mm H2O Heating Metal Bath Heating Power 2kw Test Time About 1 Hour Software Language English Dimension 310*530*480mm Weight 26kg Transport Package Hardboard Specification Small Trademark AI Origin China HS Code 9027809990 Production Capacity 20 Sets/Month

Product Description

Introduction:
This Noack B method Evaporating Loss Tester is used to determine the amount of evaporation loss of lubricating oil.
When the instrument is operated, the sample is placed in evaporation loss tester, and heated under certain conditions for 1 hour, and the evaporated oil is carried by the air correctly. The evaporation loss of the sample is determined according to the difference between the mass of the sample before and after heating.


Features:
1.The latest technology: instead of A method, the test process does not need Woodmetal to avoid environmental pollution and personal injury.
2.Control mode: embedded operating system, high-speed microprocessor control, stable and reliable work.
3.Printing method: USB printer interface, RS232 interface.
4.Touch screen: LCD display, convenient touch screen operation.
5.Safety: Built-in diagnostic program and multiple alarm functions.
6.Precision control: Built-in large-capacity EPROM, real-time recording of temperature and pressure values at each moment.
7.Efficient carbon fiber heating tube, rapid heating, low thermal hysteresis, and uniform heating


Specifications of Noack B Evaporating Loss Tester:

Applicable standards	ASTM D5800, DIN51581,SH/T0059
Temperature control method	digital display PID temperature control
Temperature control range	room temperature~300±0.5ºC,Resolution±0.1ºC
Heating method	Environmentally friendly lightweight heating unit
Pressure regulation	high precision needle valve
Vacuum control	Vacuum pump and pressure gauge air filter
Pressure range	0~25 mm H2O
Pressure accuracy	Resolution ±0.05 mm H2O;Stability ±0.2 mm H20
Power supply	AC220V ± 10% 50Hz
Total Power	2000W
Dimension	310*530*480mm
Net weight	26KG

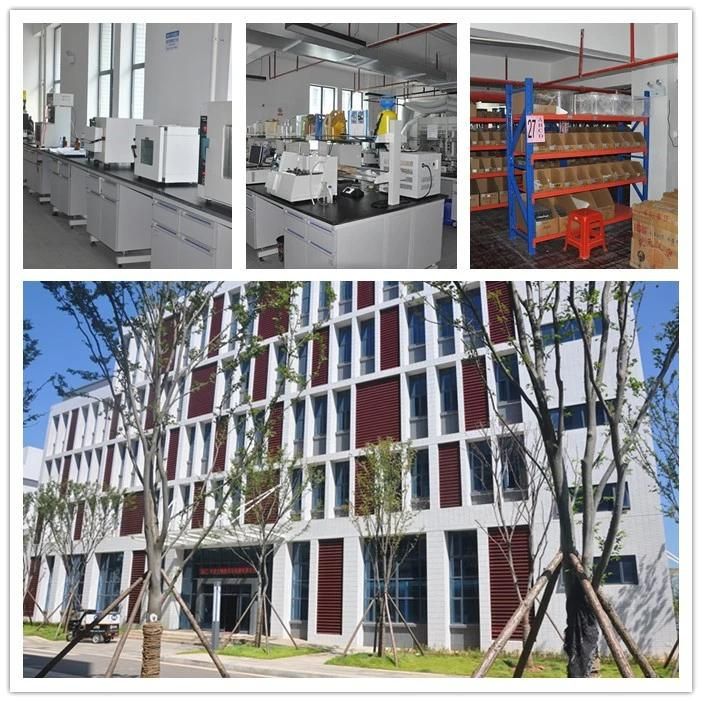

Factory overview

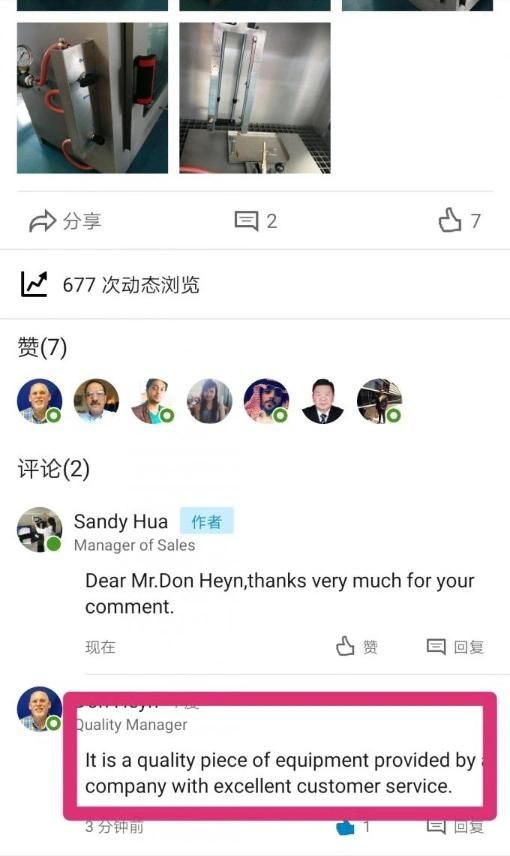

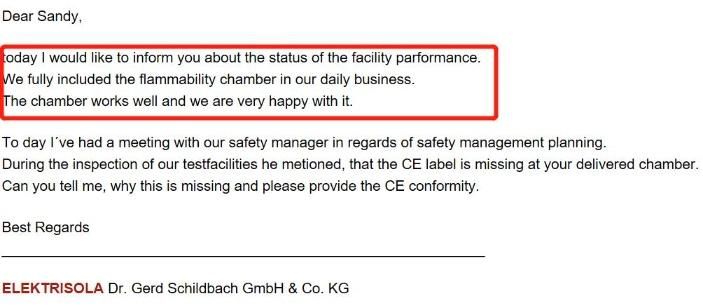

Customer Feedback

Germany

USA

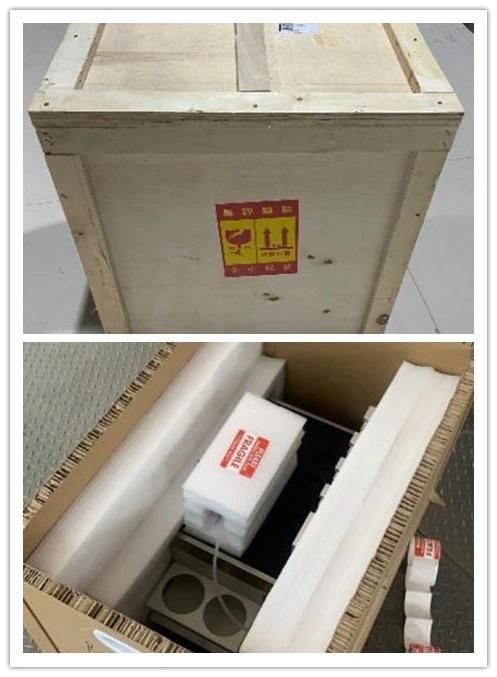

Package

FAQ
1.What's the delivery time?
About 45 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every perso
