• Model NO.：EGT-III
• Type：Gum Tester
• Standards：ASTM D381
• Power Supply：AC(220±10%)V,
• Test Method：Jet Evaporation Method
• Working Temperature：(160~165)ºC
• Overall Dimension：640mm*480mm*340mm
• Power Consumption：3500W
• Working Position：5 Units
• Function：Determine The Existent Gum Content
• Test Sample：Aviation Gasoline and Motor Gasoline
• Color：Grey
• Material of Working Bench：Stainless Steel
• Stucture：Desktop
• Flow Rate Display：Float Ball
• Dimension of Sample Position：φ51mm×70mm
• Dimension of Evaporation Bath：φ260mm×130mm
• Transport Package：Plywood Case
• Specification：Small
• Trademark：AI
• Origin：China
• HS Code：9027809990
• Production Capacity：20 Sets,Month

1Power supplyAC(220±10%)V,50Hz,3500W2Dimension of evaporation bathφ260mm×130mm3Sample positions5 units4Dimension of sample positionφ51mm×70mm5Temperature control methodAutomatic6Temperature displayDigital7Flow rate displayFloat ball type8Working pressure of reducing valve0.07MPa9Air flow rate of jet outlet600mL/s for each hole10Overall dimension590mm×480mm×340mmm(Thermometer holder is not included)11Working temperature(160~165)ºC





Accessories List of Gum Content Test Instrument

No.NameUnitQtyMemo1EGT-II Existent Gum Test IntrumentSet1 2Full-automatic electric heating steam boilerSet1 3Trumpet type nozzlePiece3 4Thermometer holderPiece3 5BeakerPiece6 6Thermometer (-5ºC-400ºC, scale division is ±1ºC)Piece4 7Porcelain tube fuse 20A(Φ10×38)Piece2 8Sintered glass funnelPiece1 9Stainless steel forceps (25 cm)Pair1 10Crusible pliersPair1 11Condensed water collecting devicePiece3 124 points, resistance to high temperature, high pressure hose (2 m, with connector)Piece1 134 points running water inlet hose (2m, with connector)Piece1 144mm² four core cableMeter5Used to connect withelectric heating steam boiler as the power line15(1×42)Blue and green ground wiresMeter5Used to connect with electric heating steam boiler as the ground wire

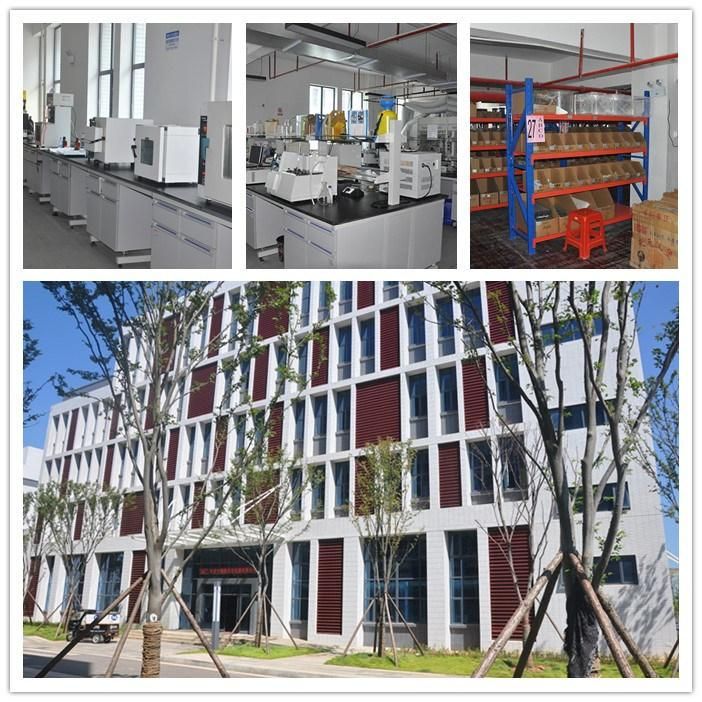

Factory overview

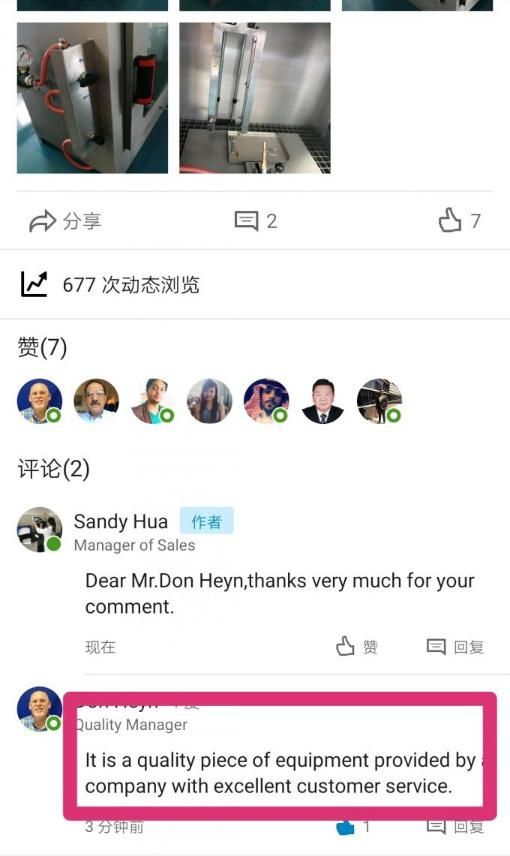

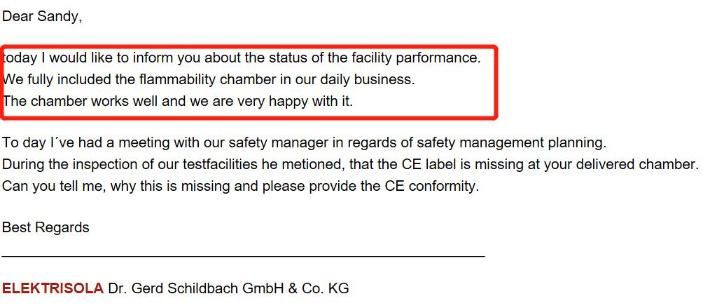

Customer Feedback

Germany

USA

PACKAGE

FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every per
