Automatic Electric Insulating Oil Dielectric Loss Tester Transformer Oil Tan Delta Test System
Xi'an Xu&Hui Electromechanical Technology Co., Ltd.- Warranty：1 Year
- Test Frequency：128Hz,111Hz,105Hz,94Hz(Afc)
Base Info
- Model NO.：XHYS101
- Resolution：0.5m
- Transport Package：Wooden Box Filled with Foam Inside
- Specification：465*385*425mm
- Trademark：XHYS101
- Origin：China Xi′an
- HS Code：9026809000
- Production Capacity：1000pieces,Year
- Package size per unit product：465.00cm * 385.00cm * 420.00cm
- Gross weight per unit product：25.000kg
Description
Overview
Product Description
Product Features

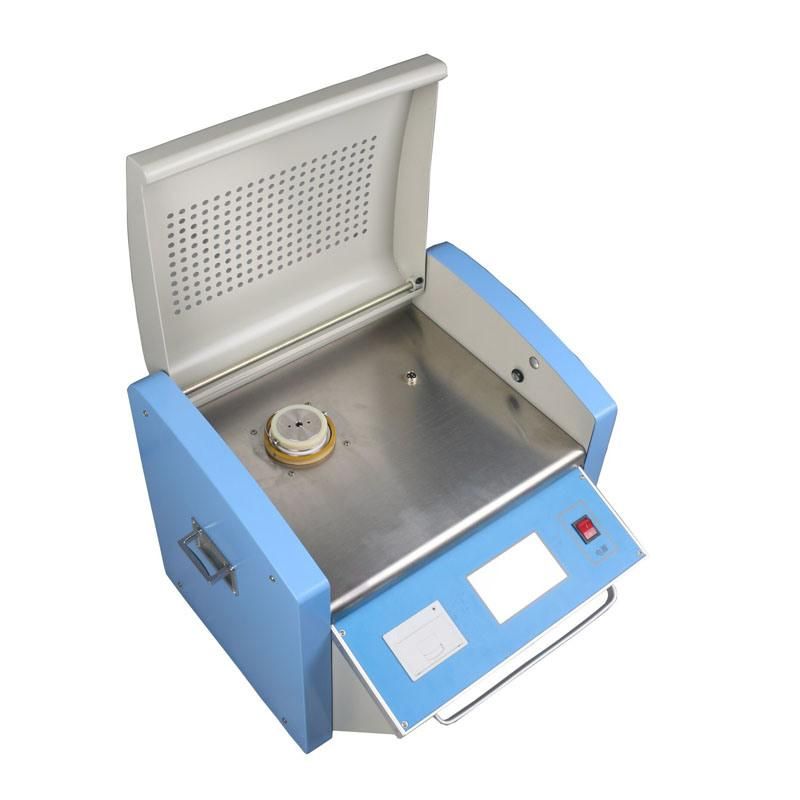

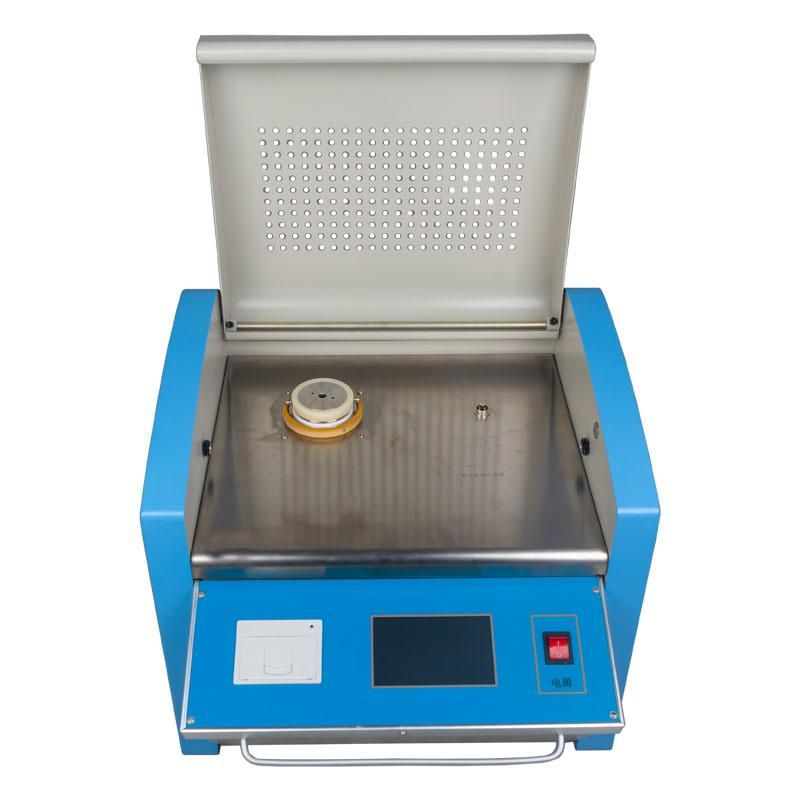

Detailed Photos
Product Parameters
| Product Name | dielectric dissipation tester |
Range | electric capacity: 1pF~200pF Dielectric Loss: 0~100% Resistivity: 10M~10T |
Precision: | electric capacity: 0.5% + 1pF Dielectric Loss: 1% + 0.0002 Resistivity: 10% Temperature: ± 1 ºC |
Resolution ratio: | electric capacity: 0.01pF Dielectric Loss: 10-5 Resistivity: 0.1M |
Output voltage: | dielectric loss: AC 2000V Resistivity: DC 500V |
| Power: | 1000W |
| Working power supply: | AC220V ± 10% (50±1) Hz |
| Temperature: | 0~40ºC |
| Humidity: | <80RH |
