• Model NO.：OBC-B
• Operation：Controlled by PC
• Diameter of Crucible：Φ 25mm
• Height of Crucible：14-19 mm
• Temperature Range：4.5-50) ºC
• Inner Cylinder Volume：2000ml
• Mixing Speed：375rpm
• Ignition Time：5s
• Heat Capacity of Instrument：About 10000j,K
• Display：LCD
• Software Language：English
• Function：Determination of The Gross Heat of Combustion
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. OBC-B Operation Controlled by PC Diameter of Crucible Φ 25mm Height of Crucible 14-19 mm Temperature Range 4.5-50) ºC Inner Cylinder Volume 2000ml Mixing Speed 375rpm Ignition Time 5s Heat Capacity of Instrument About 10000j/K Display LCD Software Language English Function Determination of The Gross Heat of Combustion Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

I.Standards:
· EN ISO 1716: Reaction to fire tests for products- Determination of the gross heat of combustion(calorific value);
· GB/T 14402: Combustion performance test for building materials and products-Determination of the heat of combustion.

II.Main features:
1, The apparatus includes: calorimeter apparatus, high-pressure oxygen bomb, cold water installations, computer and control system (which can record and display the curve), LCD screen and software;
2, Crucible made of stainless steel;
3, Box paint treatment; all internal parts are made of stainless steel, corrosion-resistant, easy to clean;
4, Ignition wire break can be detected, and automatic ignition.
5, The test procedure automatically turn off.
6, Test abnormalities has sound alarm.
7, Control box with USB / RS232 serial port with an external brand desktop or laptop operating control; High degree of automation, test procedure safe and reliable, easy to operate;




III.TechnicalSpecifications:

1	Bomb capacity	(300 ± 50) mL
2	Oxygen bomb pressure range	0.5 ~ 3.5MPa, no leakage. The bomb pressure 21Mpa
3	Crucible	Φ 25mm, height 14-19 mm,thickness 1 mm. Stainless steel material
4	Timer	accuracy of 0.5s
5	Maximum power	0.5KW
6	Ambient temperature	(10 ~ 35) ºC, humidity ≤80%;
7	Heat capacity of the instrument	about 10000J / K
8	Heat repeatability error	≤0.2%
9	Temperature range	(4.5-50) ºC
10	Temperature detection	0.0001 ºC resolution, using the PT100 sensor
11	Inner cylinder volume	2000ml; Oxygen bomb Sealing: oxygenation pressure 2.5 ~ 3.5MPa, no leakage
12	Mixing power	3W; Mixing speed: 375r/min
13	Ignition time	5s
14	Ignition voltage	DC 12V

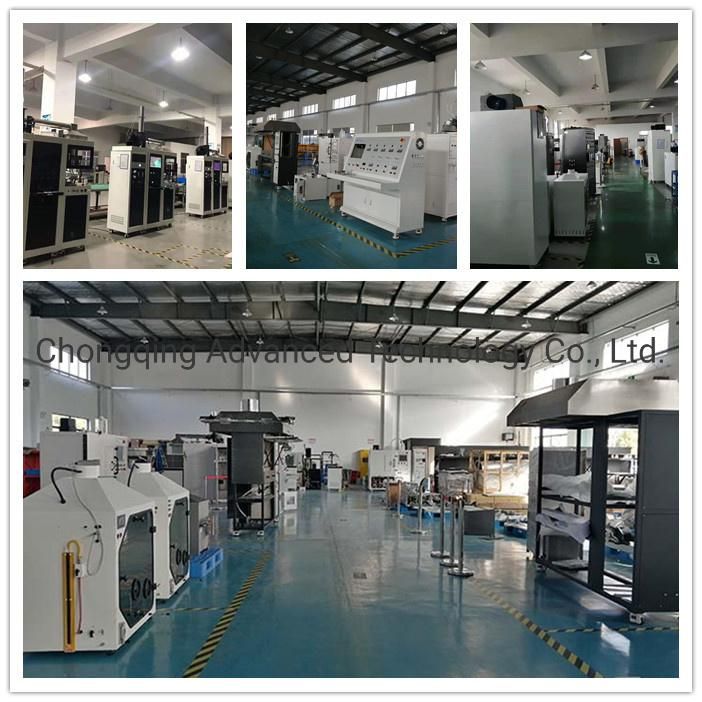

Factory overview

Customer Feedback

Germany

USA

Transporation

FAQ

1.What's the delivery time?
About 50 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
