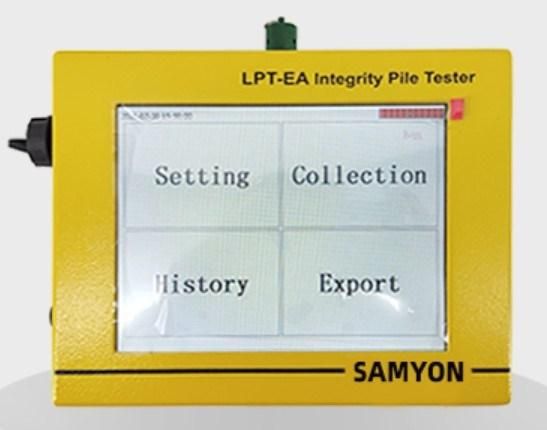

ASTM Lpt Pit Pile Integrity Tester for Concrete Pile Foundation Integrity Testing
Beijing Samyon Instruments Co., Ltd.- After-sales Service：24hours
- Warranty：One Year
- Standard：ASTM D5882
- Method：Reflection Wave Method
- Sampling Time Interval (Us)：From 2.0 to 512.0
- Sampling Length：4K Sampling Points
Base Info
- Model NO.：LPT
- Transport Package：Carton
- Specification：SGS
- Trademark：SAMYON
- Origin：Beijing
- HS Code：903180
- Production Capacity：100 Sets ,Month
Description
1). Size: 62 * 172 * 225 mm.
2). Weight: 2.0 kg.
3). High-contrast touch screen display.
4). Temperature range:
Operating Range: 0° to 40° C; Storage Range: -20° to 65° C.
5). Powered by internal battery (6 hours duration).
3. Functional:

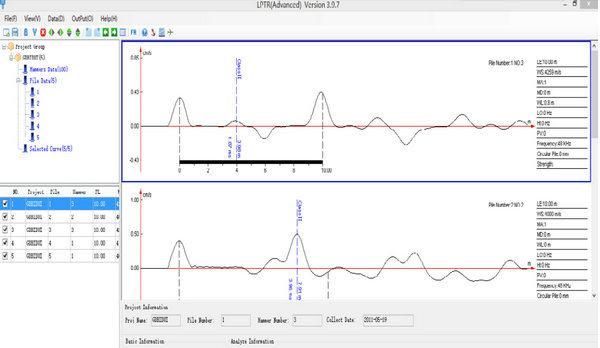

1). The LPT-E is used for Integrity pile testing and judging defect position
2). Automatic data storage
3). Signal amplification capability
4). Data can be averaged over a variable number of blows.
5). Variable signal amplification over time
6). 24-bit A/D converter
7). Sample size: 4k
8). Sample Frequency: 48kHz, 96 kHz,144 kHz
1. Follow the specifications
ASTM D5882 Standard Test Method for Low Strain Integrity Testing of Piles
JGJ106-2003 (China) Technical code for testing of building foundation piles
2. Parameters
1). Size: 62 * 172 * 225 mm.
2). Weight: 2.0 kg.
3). High-contrast touch screen display.
4). Temperature range:
Operating Range: 0° to 40° C; Storage Range: -20° to 65° C.
5). Powered by internal battery (6 hours duration).
3. Functional
1). The LPT-E is used for Integrity pile testing and judging defect position
2). Automatic data storage
3). Signal amplification capability
4). Data can be averaged over a variable number of blows.
5). Variable signal amplification over time
6). 24-bit A/D converter
7). Sample size: 4k
8). Sample Frequency: 48kHz, 96 kHz,144 kHz
