• Model NO.：SX-150
• Acceptable Basic Error Limit of Petrol O：10 Min
• Petrol Oxidation Breakdown Time Measurem：50-2400min
• Specification：CE
• Trademark：TOP TESTER
• HS Code：9031809090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. SX-150 Acceptable Basic Error Limit of Petrol O 10 Min Petrol Oxidation Breakdown Time Measurem 50-2400min Specification CE Trademark TOP TESTER HS Code 9031809090 Production Capacity 100 Sets/Month

Product Description

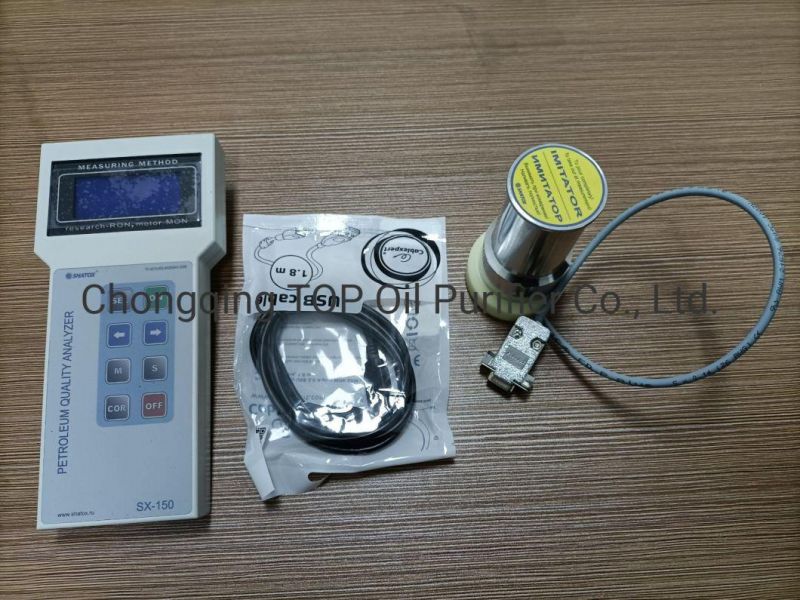

Portable Octane and Cetane Meter SX-150

Product description
Portable octane analyzers are often used for on-site analysis of octane number of power gasoline, corresponding to the motor method and research method (RON and MON), and also suitable for cetane number analysis of diesel. In addition, the temperature of the analyzed liquid and the freezing point of diesel can also be measured, and the measurement results are displayed on the LCD liquid crystal display.
This octane analyzer is widely used all over the world. Its measurement method conforms to international standards: octane measurement conforms to: ASTM D 2699-86, ASTM D 2700-86. Diesel cetane measurement conforms to: ASTM D 4737- 03, ASTM D 613, EN ISO 5165.

Feature
The instrument is designed for determining the following:

• Determining octane numbers for motor petrols;
• Determining cetane numbers for diesel fuels;
• Determining solidification temperature and diesel fuel type;
• Content of antiknock compounds boosting the octane number of petrols;
• Content of pour-point depressants for diesel fuels;
• Content of kerosine in summer diesel fuel;
• Petrol breakdown time (oxidative stability);
• Loss angle tangent of circuit-breaker, machine and engine oil;
• Level of engine, machine and circuit-breaker oil clarity;
• Manufacturer, engine oil brand;
• Engine oil base number;
• Dielectric permeability of oil products;
•
  Oil products volume resistivity;
• Determining the mechanical impurities content in oil products;
• Determining the cut. GOST 14203-69 - Oil and oil products. Dielectric humidity measuring method.

The instrument is manufactured as a portable small-sized device and is intended for rapid petroleum products quality monitoring in field and laboratory conditions. Operating conditions: air temperature in the range from - 10 °С up to + 45 °С.


Technical Parameters

#	Parameter description	Measurement units	Value
1	Measured petrols octane numbers range	ON	40-135
2	Acceptable limit of octane number measurement basic error, max	ON	±0.5
3	Limit of acceptable difference between parallel octane number measurements, max	ON	±0.2
4	The determination range of antiknock additives content in petrols	%	0.5-15
5	Acceptable basic error limit of antiknock additives content determination in petrols	%	0.1
6	Petrol oxidation breakdown time measurement range	Min	50-2400
7	Acceptable basic error limit of petrol oxidation breakdown time	%	5
8	Petrol quality determination mode basing on volume resistivity	Ohm	10 6-10 14
9	Acceptable basic error limit of volume resistivity measurements	%	3
10	Cetane numbers measurement range	CN	20-100
11	Acceptable basic error limit of cetane numbers, max	CN	±1.0
12	Acceptable difference limit between cetane numbers parallel measurements, max	CN	± 0.5
13	Acceptable error limit when determining diesel-fuel pour point	ºC	2
14	Kerosine content determination range in summer diesel fuels	%	0-50
15	Acceptable basic error limit when determining kerosene content in diesel fuels	%	3
16	Mode for pour point depressants content determination for diesel fuel	%	0.2-1
17	Acceptable basic error limit when determining of pour point depressants content	%	0.01
18	Motor oils clarity level measurement range	%	50-100
19	Acceptable error limit of motor oils clarity level measurement	%	0.1
20	Acceptable difference limit between motor oils clarity parallel measurements	%	0.01
21	POL dielectric permeability measurement range	units	1-5
22	Acceptable error limit of dielectric permeability measurement, max	unit	0.001
23	Acceptable difference limit between POL dielectric permeability parallel measurements, max	unit	0.001
24	Oils base number determination range	unit	3-24
25	Acceptable basic error limit when determining oils basic number	BN unit	1
26	Motor oils manufacturer and brand determination	Manufacturer	-
27	Circuit-breaker oils (dielectrics) breakdown voltage measurement range	kV	5-100
28	Acceptable error limit of circuit-breaker oils breakdown voltage measurement, max	kV	1
29	Acceptable difference limit between circuit-breaker oils breakdown time parallel measurements, max	kV	0.2
30	Measurement range of circuit-breaker oils loss angle tangent	%	0.01-40
31	Acceptable error limit of circuit-breaker oils loss angle tangent, max	%	0.01
32	Acceptable difference limit between circuit-breaker oils loss angle tangent parallel measurements, max	units	0.001
33	Determination range for mechanical impurities content in oil products	%	97-100
34	Acceptable basic error limit when determining mechanical impurities content in oil products	%	0.01
35	Water-in-oil content determination range for oil products	%	0-30
36	Acceptable basic error limit when determining water-in-oil content of oil products	%	1
37	Measurement time	sec	1-5
38	Insufficient power supply indication operation threshold	V	5.4
39	Instrument useful life		6
40	Overall dimensions of:
	electronic module	mm	100х210х40
	sensor #1 and #2	mm	60х100
	Instrument mass with one sensor/two sensors	g	850 / 680
