P860 Nitrogen Oxygen Analyzer Portable Oxygen Purity Analyzer 100ppm~21%
BeiJing Cape Golden Gas System Company LTD- After-sales Service：Supplied, Onsite, Online
- Warranty：1.5 Years
- Brand：Cape Golden
- Customized：Customized
- Portable：Portable
- Certification：CE
Base Info
- Model NO.：P860
- Gas：O2
- Type：Electrochemical Gas Analyzer
- Transport Package：Sea,Air Packing
- Specification：GNL-2100L
- Trademark：Cape Golden
- Origin：Beijing, China.
- HS Code：9027100090
- Production Capacity：200 Units Per Month
Description

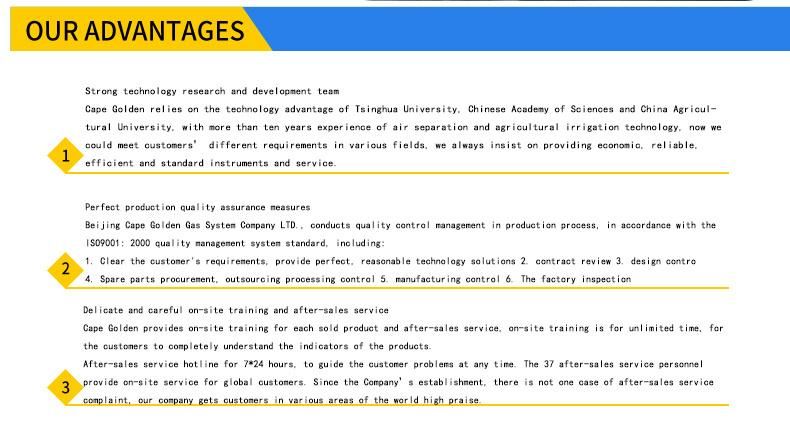

Our Advantages
Technical Parameters
Model: CI-PC21
Measuring principle: NDIR non-optical infrared analyzer
Measuring component: any one or two components can be measured NOx,SO2,CO,CO2,CH4,H2S. O2 Can be added to each component
| Range based Required design | Minimum Range | Maximum range |
| NOx | 0 to 1000 ppm | 0-20% |
| SO2 | ppm 0-500 | 0-100% |
| CO | 0 to 20 ppm | 0-100% |
| CO2 | 0 to 10 ppm | 0-100% |
| CH4 | 0 to 200 ppm | 0-100% |
| H2S | 0 to WOO ppm | 0-30% |
| Accuracy | ± 2%FS |
| Repeatability | ±1%FS |
| Zero Drift | ±1%FS/7d |
| Range Drift | ±1%FS/7d |
| Linear Error Limit | ±1%FS |
| Response Time | T90<=60 s (sample flow 0.5 L/min) |
| Analog Signal | 4~20 mA/0~20mA/0~1 V/0-5V/0-10V/1-5V, can set analog output mode freely |
| Maximum Load | provided according to user requirements, not affected by load within 500Ω maximum load |
| Ambient Temperature | -10~45°C |
| Ambient Humidity | less than 80% RH |
| Supply voltage | 85-264 VAC 50/60HZ |
| Size | 19-inch profile chassis L * W * H=483 mm * 300mm *177mm |
| Gas flow measured | 500~1000 ml/min, 500 ml/min best |
| Dust | particles not exceeding I um, not exceeding 200 μg/Nm3 |
| Pressure | 10%± atmospheric pressure (air outlet should be atmospheric pressure) |
| Moisture | no more than 5 P saturated (no condensation) |

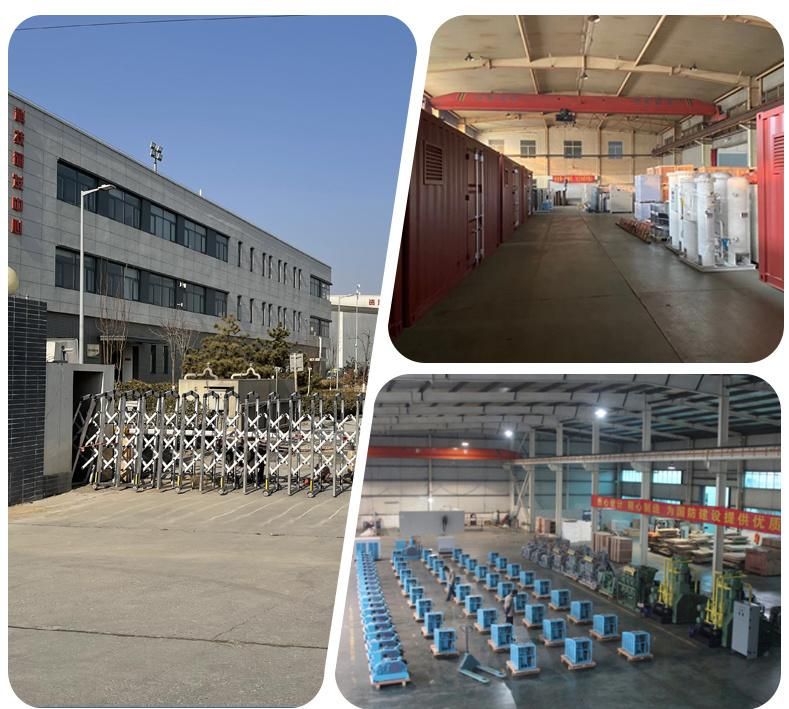

1.Q:Where is your factory located? How can I visit there?
A:We are the professional gas equipments, founded in 2008. Our factory is located in Beijing China . Welcome to visit us!
2.Q:What's your delivery time?
A:As usual 40 days,if urgently order,pls contact our sales in advance.
3.Q:How does your factory do regarding quality control?
A:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our
factory has gained ISO9001 and CE certificate.
4.Q:What's payment term?
A:T/T, L/C etc.Also we could accept USD, RMB, Euro and other currency.
5.Q:How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
