• Model NO.：JAY-120
• Type：Electrochemical Gas Analyzer
• Product Name：O2 Purity Tester Oxygen Analyzer
• Accuracy：+,-3%
• Max Pressure：100kpa
• Max.Flow：10 Liters,Minute
• Power off Automatically：in 15 Minutes Without Singnal
• LCD Purity Display,：Between 21.0-99.9%
• Customized Support：OEM
• Low Battery Voltage Reminding：Yes
• Power：DC5V-12V
• Color：White
• Function：Measure Oxygen Purity, Pressure, Flow Rate
• Transport Package：Standard Carton Box
• Specification：120*70*30mm
• Trademark：LONGFIAN
• Origin：Hebei, China
• HS Code：9018909991
• Production Capacity：400000PCS,Year

Basic Info.

Model NO. JAY-120 Type Electrochemical Gas Analyzer Product Name O2 Purity Tester Oxygen Analyzer Accuracy +/-3% Max Pressure 100kpa Max.Flow 10 Liters/Minute Power off Automatically in 15 Minutes Without Singnal LCD Purity Display, Between 21.0-99.9% Customized Support OEM Low Battery Voltage Reminding Yes Power DC5V-12V Color White Function Measure Oxygen Purity, Pressure, Flow Rate Transport Package Standard Carton Box Specification 120*70*30mm Trademark LONGFIAN Origin Hebei, China HS Code 9018909991 Production Capacity 400000PCS/Year

Product Description

Portable Oxygen Analyzer Oxygen flow rate analyzer

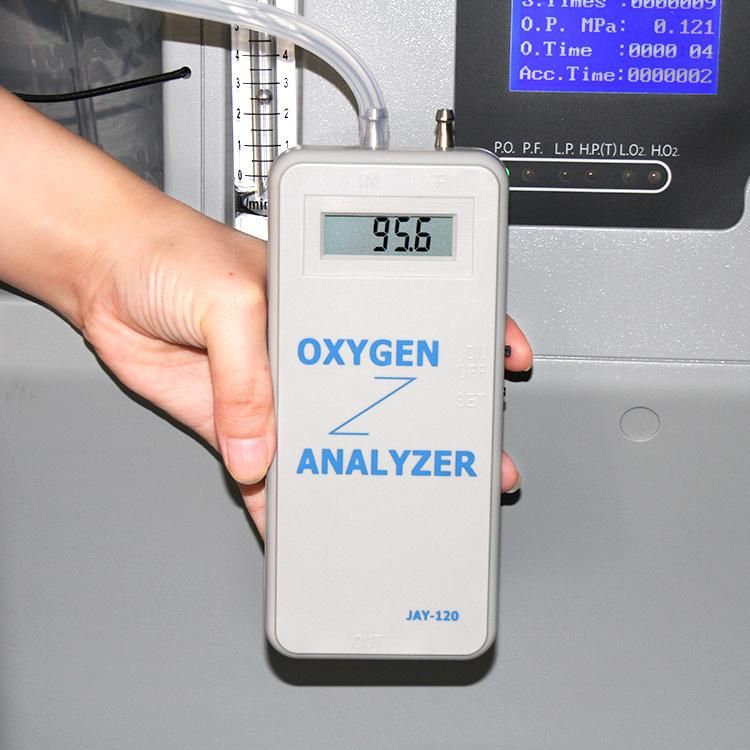

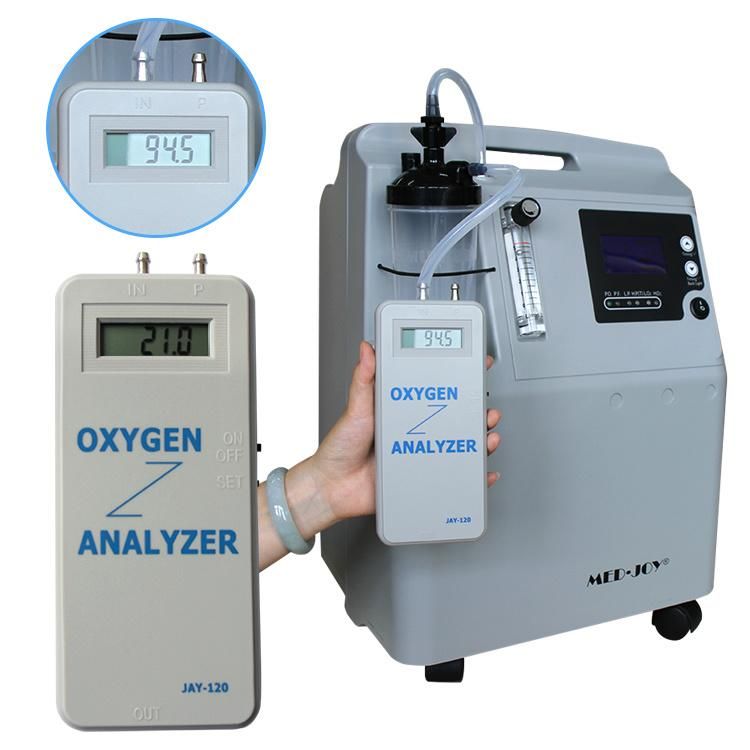

In order to monitor oxygen concentration more economically and easily, we develop JAY-120 digital hand-held oxygen analyzer for monitoring the oxygen concentration for various of various oxygen concentrator. JAY-120 is characterized by its smart design, stable reliability, convenient use, higher accuracy and a very long service life. When use it, just connect the analyzer with the oxygen output, then the LCD screen will display the curren oxygen concentration.

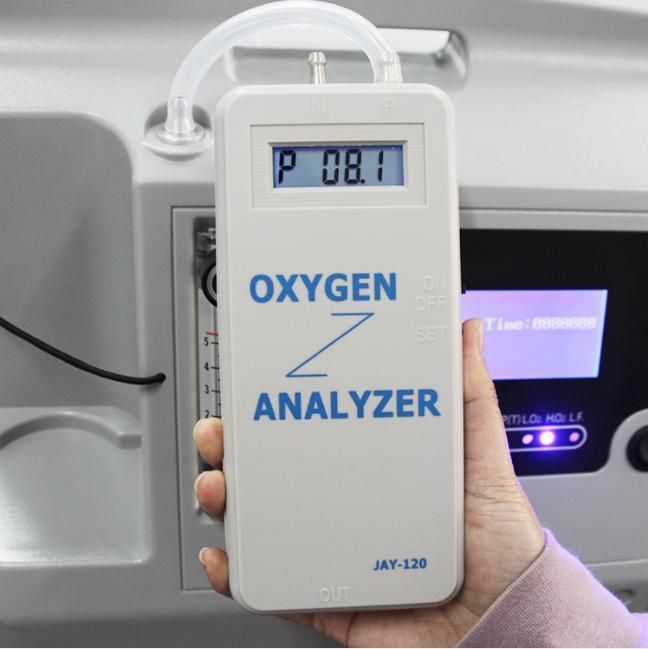

 1.The oxygen analyzer is specially used for detecting the concentration of oxygen generated by molecular sieve oxygen concentrator. 2.The oxygen measurement we offer has high sensitivity. 3. Due to stable quality, our oxygen analyzer instrument can last over 5 years.4. This analyzer can measure the oxygen purity, oxygen flow rate and oxygen pressure
 Specifications

1. Accurancy: +/-2%
2. Max. Pressure: 60PSI
3. Max. Flow: 15liters/min.
4. Low battery Voltage reminding
5. Power off automatially in 15min. Without signal
6. LCD purity display, betwiin 21.0~96.0%.

Technical Parameter


Concentration Indication Range	21.0 % ~96.0 %
Measurement Accuracy	+/-2% F.S.
Operating Ambient Temperature	5~40 ºC
Operating Ambient Humidity	< 90%
Response Time	8s
Overall Dimension	83mm×31mm×190mm
Battery Model	6F22/9V tandem battery
Weight	250g with battery, 205g without battery
Max. Pressure	60PSI
Max. Flow	10L/min

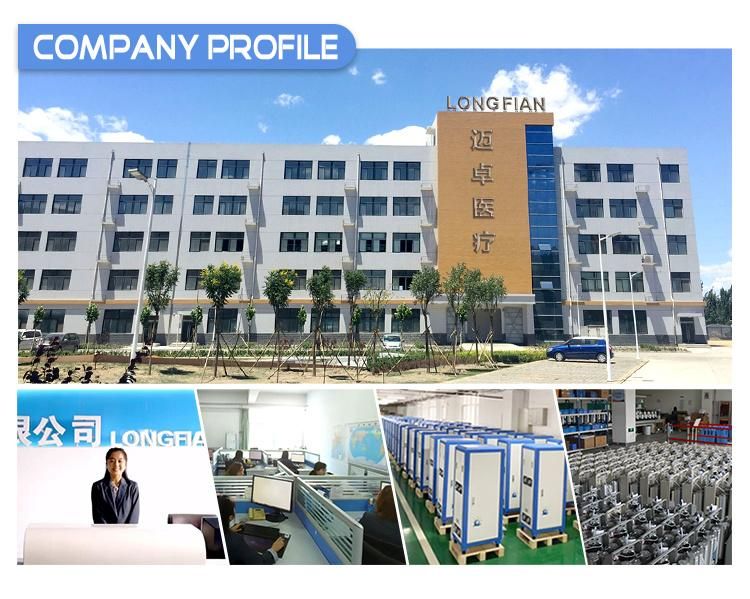

Longfian Scitech Co., Ltd was established in year 2005, located in Baoding City, Hebei province, China. We are a professional manufacturer, specialized in the development, production and export of medical serial oxygen concentrators 1-120LPM with CE and ISO certificate, which have been widely applied in home care, hospital, clinics, beauty salon, sports, industry and high altitude area etc. In the meantime, some oxygen related products, such as ozone, oxygen cocktail device, are developed also upon the demands of the market. Our products has been exported to Unite States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 160 countries, enjoy a high reputation in interational market.

Our goal is professional in quality, focus on various oxygen concentrator&oxygen related products, and continue to bring you not only reliable, quality products, but also bring you a better life!

Q: Are you a factory or trading company?
A:We are a Professional Manufacturer for oxygen concentrator from1-60lpm and oxygen related products.
Welcome to our company, seeing is believing, our company, show room and factory in same place.

Q. Where is your factory located? How can I visit there?
A: our factory is located at Power valley pioneer park, NO.369 Huiyang street , 071051,Baoding, Hebei,China, near to Beijing. Welcome to our company.

Q. What is your trading term?
A:1. Payment term: T/T, or L/C , or Western Union for small amount .
2. Lead time: normally in 7-10 days after deposit received.
3. Sample policy: Samples are always available for each model. Samples can be ready in 3-5 days once payment received.
4. Shipping port: Tianjin/XinGang, China
5. Discounts: We offer discount for big quantity.

Q: How to purchase your product?
A:Quotation → PI → Confirm PI → Arrange payment →Producing →QC inspect → Shipping


Q: Can you provide the OEM service?
A: Yes, it's avaliable.
