O2 Purity Tester Oxygen Analyzer
LONGFIAN SCITECH CO., LTD.- Warranty:15 Months
- Brand:Longfian
- Customized:Non-Customized
- Portable:Portable
- Certification:CE, RoHS
- Gas:O2
Base Info
- Model NO.:JAY-120
- Type:Electrochemical Gas Analyzer
- Product Name:O2 Purity Tester Oxygen Analyzer
- Accuracy:+,-3%
- Max Pressure:100kpa
- Max.Flow:10 Liters,Minute
- Power off Automatically:in 15 Minutes Without Singnal
- LCD Purity Display,:Between 21.0-99.9%
- Customized Support:OEM
- Low Battery Voltage Reminding:Yes
- Power:DC5V-12V
- Color:White
- Function:Measure Oxygen Purity, Pressure, Flow Rate
- Transport Package:Standard Carton Box
- Specification:120*70*30mm
- Trademark:LONGFIAN
- Origin:Hebei, China
- HS Code:90192000
- Production Capacity:400000PCS,Year
Description
Basic Info.
Model NO. JAY-120 Type Electrochemical Gas Analyzer Product Name O2 Purity Tester Oxygen Analyzer Accuracy +/-3% Max Pressure 100kpa Max.Flow 10 Liters/Minute Power off Automatically in 15 Minutes Without Singnal LCD Purity Display, Between 21.0-99.9% Customized Support OEM Low Battery Voltage Reminding Yes Power DC5V-12V Color White Function Measure Oxygen Purity, Pressure, Flow Rate Transport Package Standard Carton Box Specification 120*70*30mm Trademark LONGFIAN Origin Hebei, China HS Code 90192000 Production Capacity 400000PCS/YearProduct Description

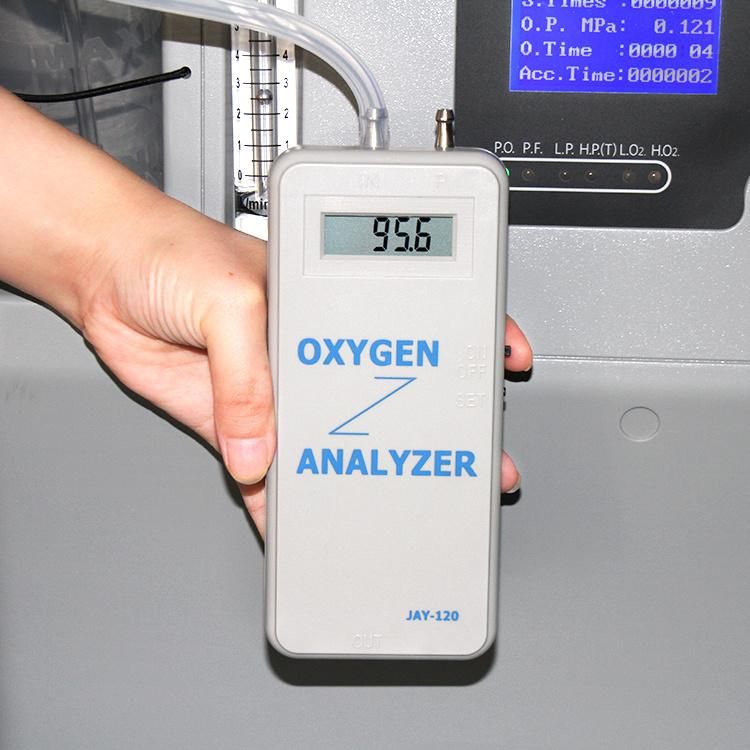

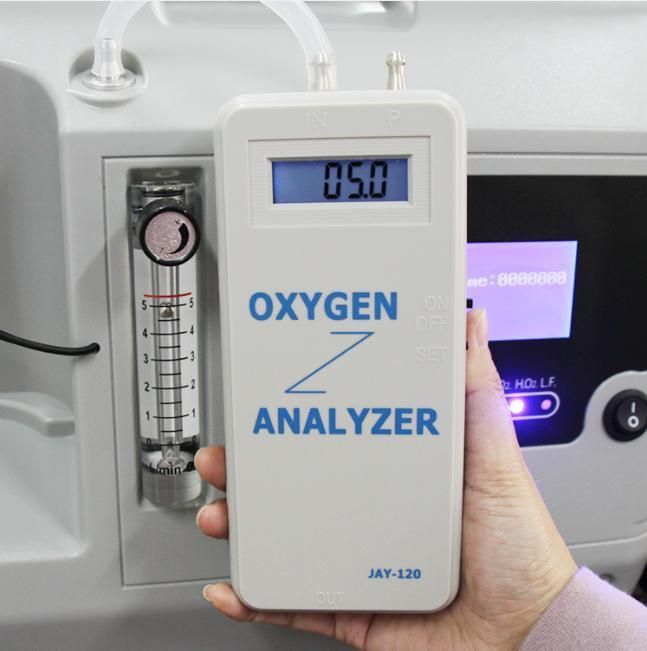

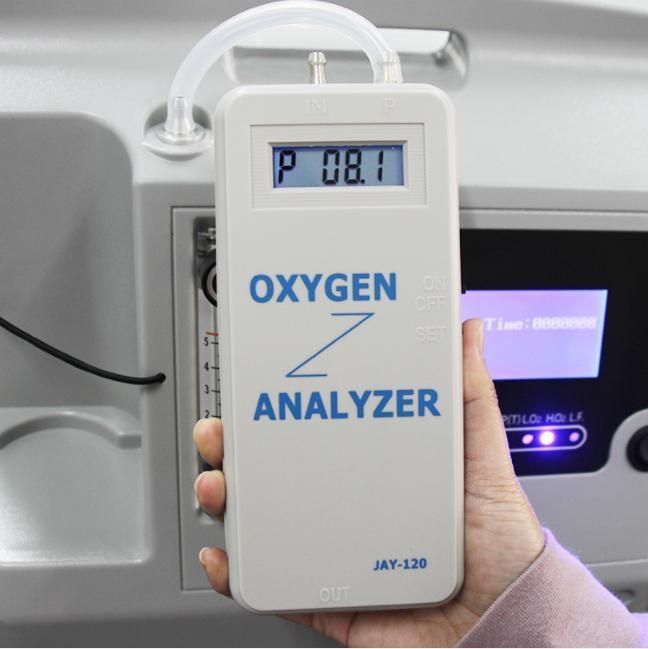

O2 Purity Tester Oxygen Analyzer1.The oxygen analyzer is specially used for detecting the concentration of oxygen generated by molecular sieve oxygen concentrator. 2.The oxygen measurement we offer has high sensitivity. 3. Due to stable quality, our oxygen analyzer instrument can last over 5 years.4. This analyzer can measure the oxygen purity, oxygen flow rate and oxygen pressureSpecifications
1. Accurancy: +/-2%
2. Max. Pressure: 60PSI
3. Max. Flow: 15liters/min.
4. Low battery Voltage reminding
5. Power off automatially in 15min. Without signal
6. LCD purity display, betwiin 21.0~96.0%.
Technical Parameter
Concentration Indication Range | 21.0 % ~96.0 % |
Measurement Accuracy | +/-2% F.S. |
Operating Ambient Temperature | 5~40 ºC |
Operating Ambient Humidity | < 90% |
Response Time | 8s |
Overall Dimension | 83mm×31mm×190mm |
Battery Model | 6F22/9V tandem battery |
Weight | 250g with battery, 205g without battery |
Max. Pressure | 60PSI |
Max. Flow | 10L/min |
Longfian Scitech Co., Ltd was established in year 2005, located in Baoding City, Hebei province, China. We are a professional manufacturer, specialized in the development, production and export of medical serial oxygen concentrators 1-120LPM with CE and ISO certificate, which have been widely applied in home care, hospital, clinics, beauty salon, sports, industry and high altitude area etc. In the meantime, some oxygen related products, such as ozone, oxygen cocktail device, are developed also upon the demands of the market. Our products has been exported to Unite States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 160 countries, enjoy a high reputation in interational market.
Our goal is professional in quality, focus on various oxygen concentrator&oxygen related products, and continue to bring you not only reliable, quality products, but also bring you a better life!
