P860-4n N2/O2 Analyzer Oxygen and Nitrogen Gas Purity Analyzer/ Tester
BeiJing Cape Golden Gas System Company LTD- Measure Range：10ppm~21%, 100ppm~21%, 1000ppm~21% O2
- Sample Gas Flow：150~300ml,MIM
- Accuracy：±2% F.S
- Response Time：90% of Fs Reading ≤20 Seconds
- Ambient Temp：-10oc~+50oc
- Ambient Humidity：<80%Rh
Base Info
- Model NO.：P860-4N
- Signal Output：4~20mA
- Sensor Life：12 Months Analyzer; 12 Months Sensor
- Appearance Dimension：160mm×80mm×176mm (W×h×d)
- Transport Package：Box
- Specification：SGS, ISO
- Trademark：Puhui
- Origin：China
- HS Code：9027100090
- Production Capacity：200 Sets,Month
Description
Product Description
P860 series analyzer is the online intelligent measurement instrument, which adopting advanced ion current oxygen sensor with single chip technology. N2%=100%-O2%. It has been widely used in the fields of nitrogen separation from air, fertilizer, petrochemicals and biological fermentation.

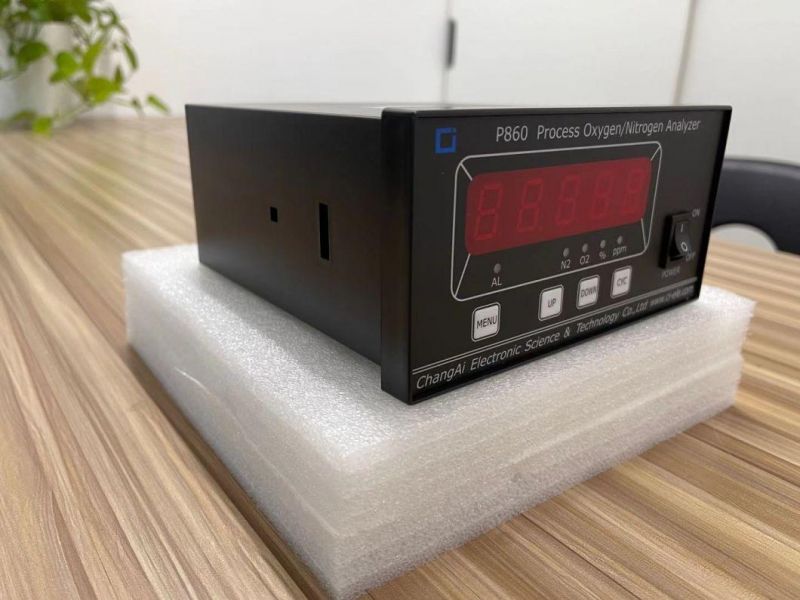

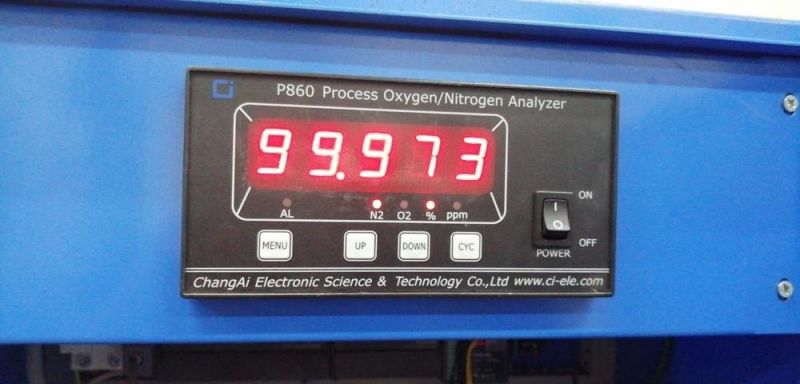

Detailed Photos
FeaturesFeatures. New pattern long-life conversion ion current tester with fast response and high sensitivity
. N2 or O2 concentration display
. Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life
. Setting alarm value freely
. High precision, automatic temperature compensation, eliminating the impact of environmental temperature
Product Parameters
Monitor: Five-digital dynamic LED monitor, visible display window: 90mm×25mm
Measure Range: 10ppm~21%, 100ppm~21%, 1000ppm~21% O2
Measure Mode: Air in-flowing or convection diffusing
Sample Gas Flow: 150~300ml/mim
Accuracy: ±2% F.S
Response Time: 90% of FS reading ≤20 seconds
Ambient Temp.: -10ºC~+50ºC
Ambient Humidity: <80%RH
Stability: <±1%.FS (168h)
Signal Output: 4~20mA
Power Supply: 220±10% VAC, 50/60Hz, the power loss ≤6VA
Sensor Life: 20000 hours at 25ºC and 1 atm
Warranty: 12 months analyzer; 12 months sensor
Weight: 1kg

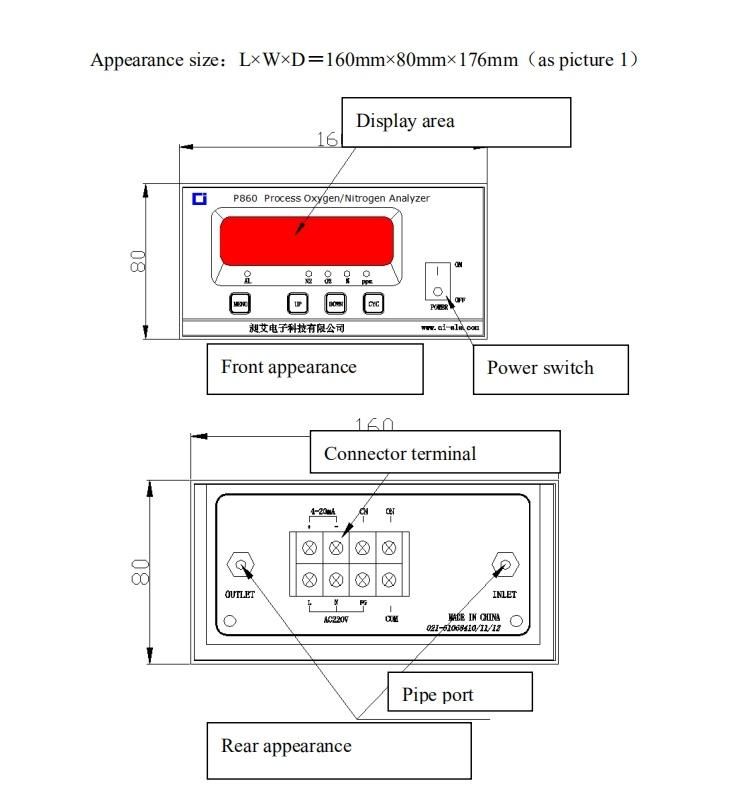

Appearance Dimension: 160mm×80mm×176mm (W×H×D)
Opening Size: 151mm×75mm
Model Table
FAQ
Order knowledge
Measure range
Tested gas pressure
Gas composition and impurity
