• Model NO.：ozone detector
• Measuring Range：0.00~10.00mg,L
• Resolution：0.01mg,L
• Field：Testig Ozone Concentration in Water
• Operation：Automatic
• Weight：90g
• Accuracy：+-1%F.S.
• Display：20*30mm Multi-Line LCD Display
• Warranty：12 Months
• Transport Package：Carton Case
• Specification：180 * 40 * 45mm
• Trademark：Jiahuan Ozone
• Origin：Gunagdong China
• HS Code：85437099
• Production Capacity：10000PCS Per Year

Basic Info.

Model NO. ozone detector Measuring Range 0.00~10.00mg/L Resolution 0.01mg/L Field Testig Ozone Concentration in Water Operation Automatic Weight 90g Accuracy +-1%F.S. Display 20*30mm Multi-Line LCD Display Warranty 12 Months Transport Package Carton Case Specification 180 * 40 * 45mm Trademark Jiahuan Ozone Origin Gunagdong China HS Code 85437099 Production Capacity 10000PCS Per Year

Product Description

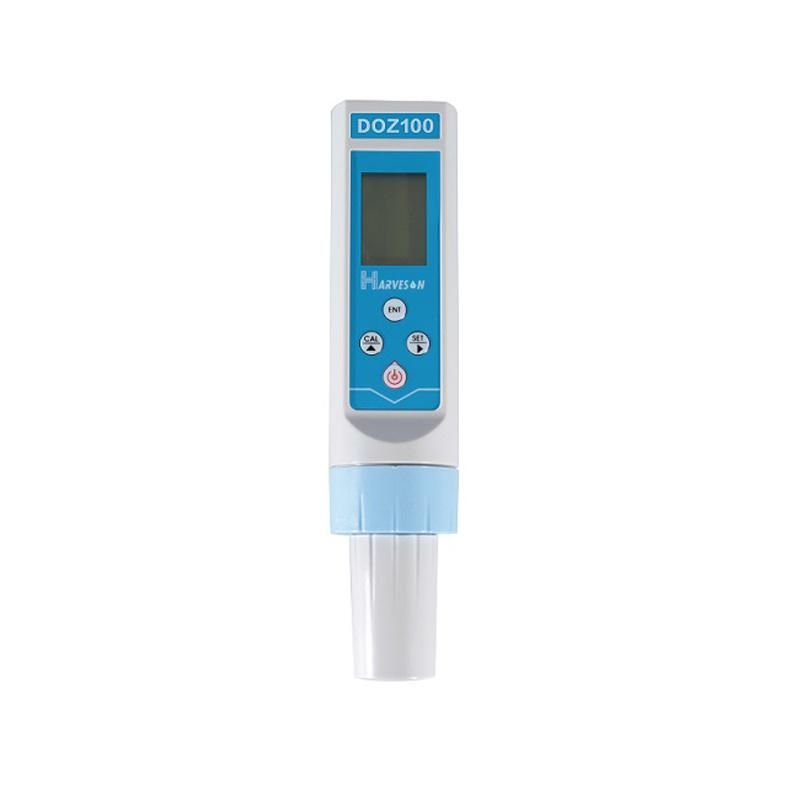

0-10ppm Dissolved Ozone Water Detector for Testig Ozone Concentration


Product description

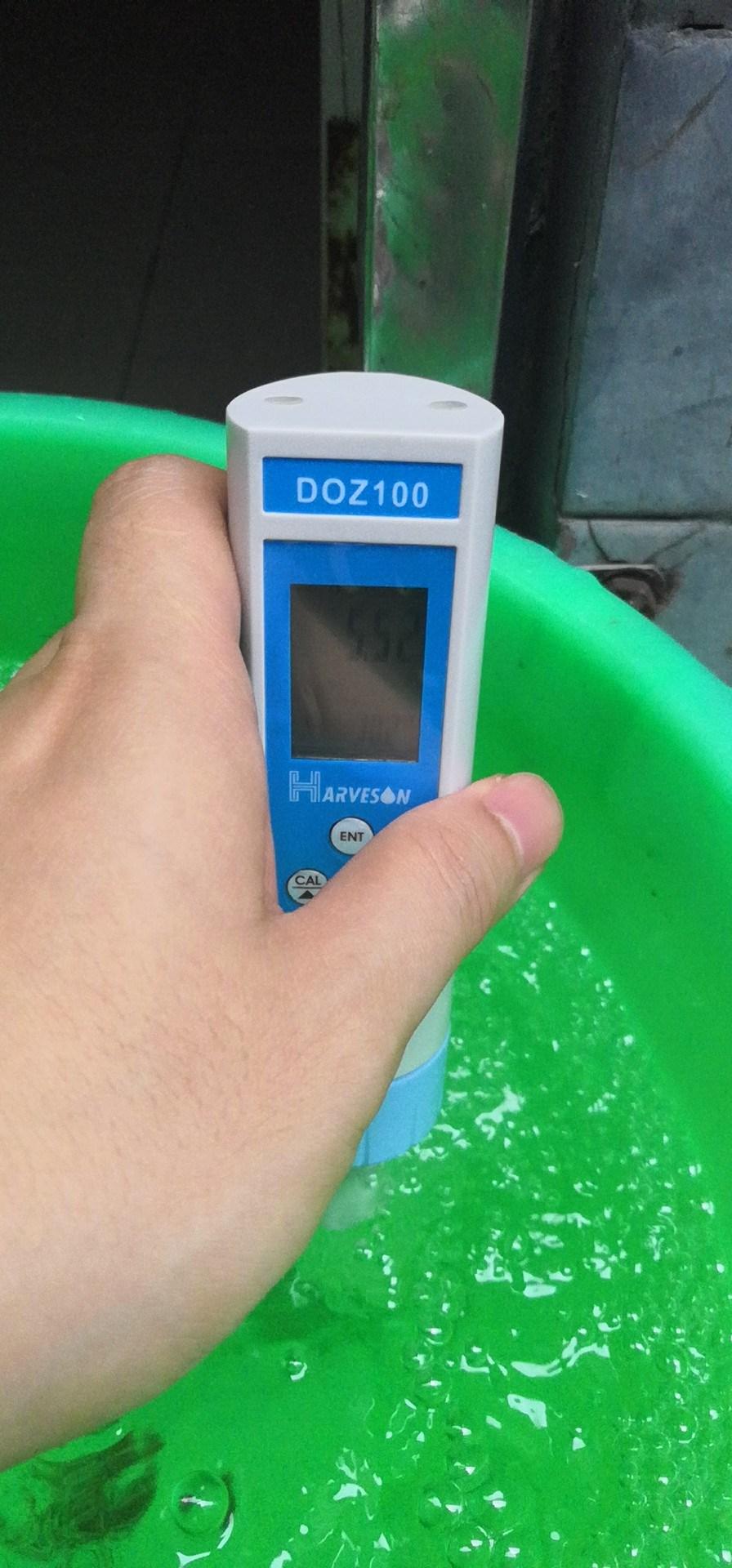

  Our this water on-line ozone detector is the smallest detector we use to test the ozone concentration in water. It is small and exquisite, easy to carry, easy to operate, and can be used by plugging it into ozone water. With the testing range is 10ppm, it does good in cooperating with our Jiahuan many kinds of ozone generators.

When purchasing ozone generator for water treatment, many customers also prefer to buy this type water on-line ozone detector to detecting the ozone concentration, and we receive many of their good comments. It did enjoy good reputation.

Specification


Model	DOZ100 water on-line ozone detector
Measuring range	0.00~10.00mg/L
Resolution	0.01mg/L
Accuracy	±1%F.S.
Calibration	2 points (0, any point)
Display	20*30mm multi-line LCD display
Temperature compensation	ATC automatic
Protection level	IP67
Automatic shut-down	10 minutes
Automatic background light	1 minutes
Power	1 * 1.5vAAA battery
Size	180 * 40 * 45mm (H * W * D)
Weight	90g

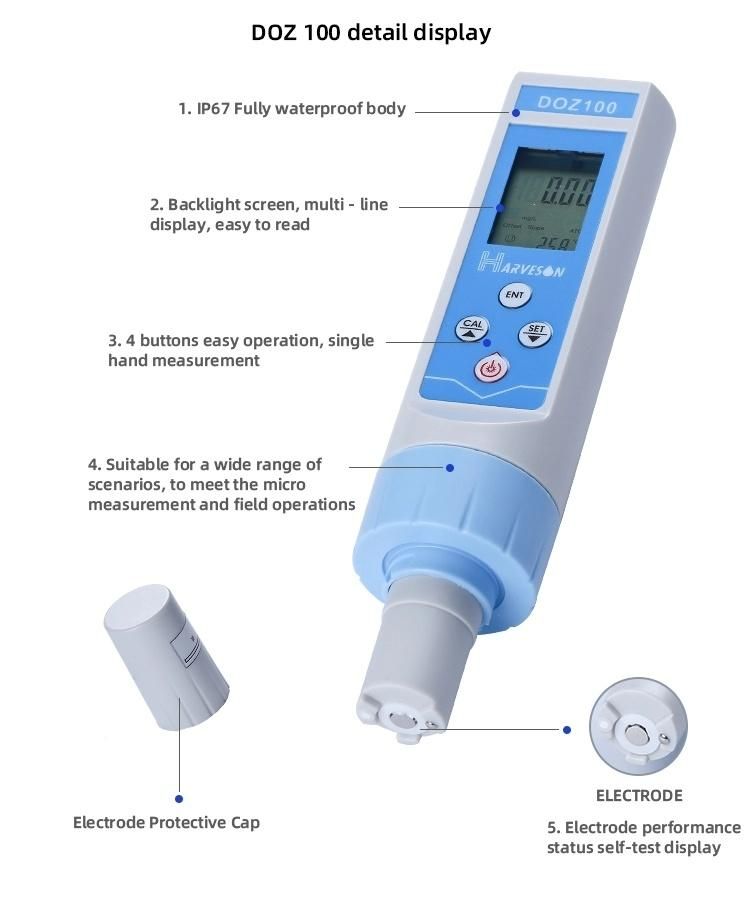

Characteristics of the Device

1.IP67 full waterproof design;
2. The reading value is automatically locked;
3. the entire system automatic temperature compensation;
4. electrode performance status self-diagnosis display;
5. the meter only needs 1 1.5v AAA battery;
6. Automatically shut down 10 minutes after no operation.
7.backlit screen, multi-line display, easy to read;

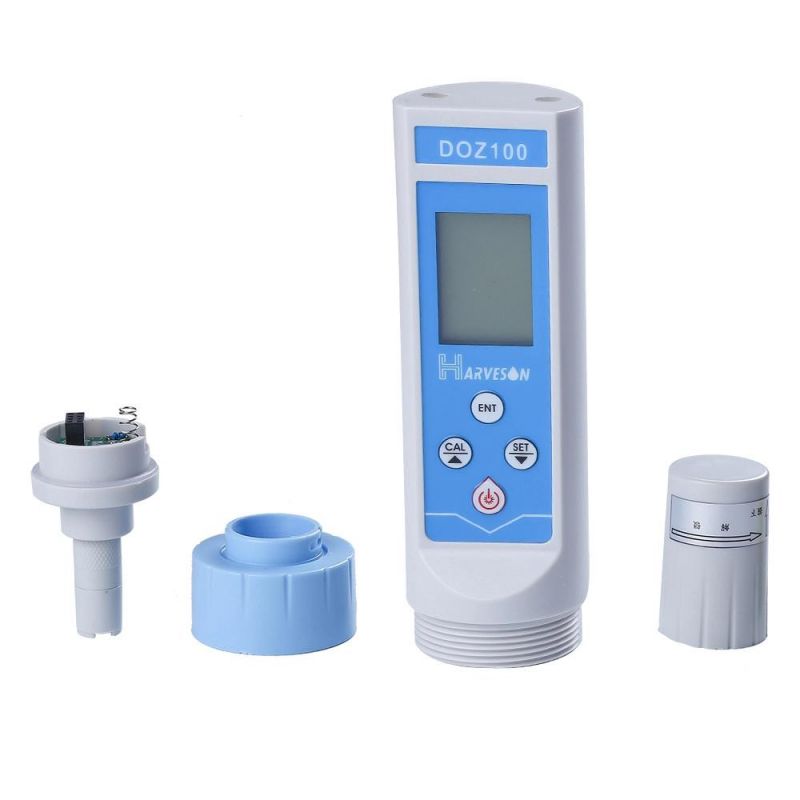

8. easy to maintain, without any tools can easily replace the battery and electrodes;
9. a wide range of applications: to meet the measurement of trace samples, as well as water quality testing in the field;
10. holding a comfortable shell, easy to operate buttons, friendly interface, one-handedly mastered.

Application

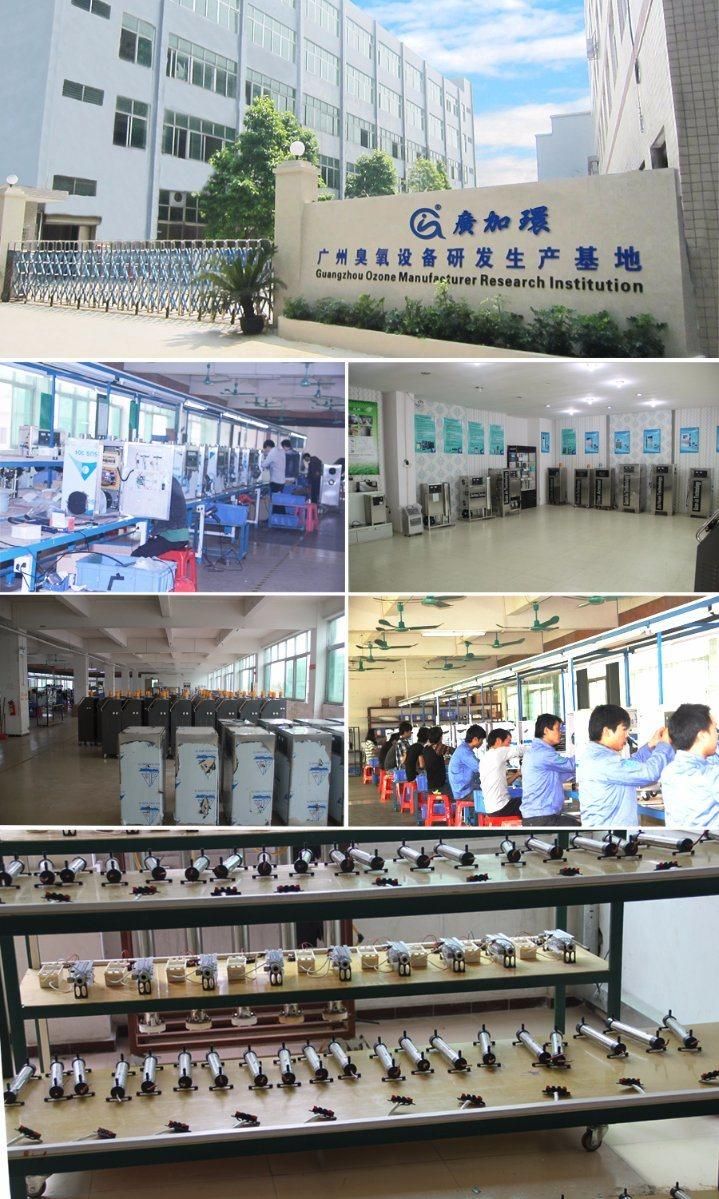

Company Information:

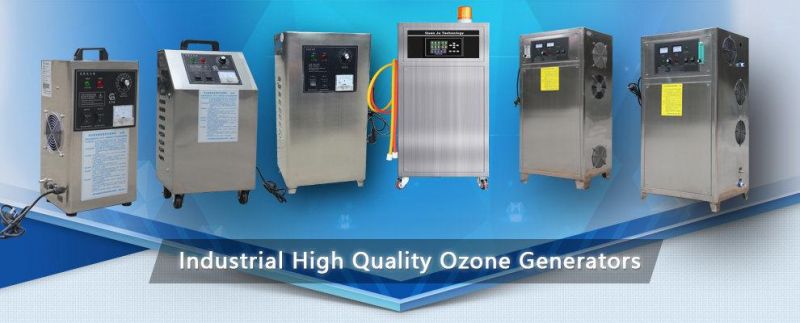

 Guangzhoujiahuan appliance technology co.,ltd specializes in manufacturing of ozone generator, PSA oxygen generator,car air purifier from 2003,with over 10 years hard working,we have grown into the largest ozone generator manufacturer in Guangzhou,  Covering an area over 5,000 Sqm, with 90 workers. We can supply all kind of ozone generators from 5g/h-10kg/h.









Welcome your inquiry!
