• Model NO.：SDB-T
• Dimension：2150 (H) X 1650 (L)X840 (D) mm3
• Chamber Size：610 mm (H) X 914 mm(L) × 914 mm (D).
• Power of Heating Cone：2600W
• Input Temperature：0 ~ 1000 ºC
• Display：LCD
• Control System：PC+Labview
• Flame Length：30mm±5mm
• Light Source：6.5 V Incandescent Lamp
• Heat Flow Meter Range：0 ~ 80 Kw,M2
• Air Flow Meter Range：0 ~ 1000 Ml,Min
• Radiation Power Range：0 ~ 50 Kw,M2
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SDB-T Dimension 2150 (H) X 1650 (L)X840 (D) mm3 Chamber Size 610 mm (H) X 914 mm(L) × 914 mm (D). Power of Heating Cone 2600W Input Temperature 0 ~ 1000 ºC Display LCD Control System PC+Labview Flame Length 30mm±5mm Light Source 6.5 V Incandescent Lamp Heat Flow Meter Range 0 ~ 80 Kw/M2 Air Flow Meter Range 0 ~ 1000 Ml/Min Radiation Power Range 0 ~ 50 Kw/M2 Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

Introduction

The test method of the NBS smoke density chamber is derived from the American National Institute of Standards and Technology NIST (the predecessor of NBS). It has been promoted and applied in many test fields. The test method can be used to test smoke density grade of plastic products, non-metal rail transit materials, ship non-metallic materials, wire and cable products, etc..According to this test method, generally applicable standards are ASTM E662, ISO 5659-2 and the NES 711 smoke density test method.
Compared to building material smoke density test method,this test standard has more accurate test results, and the optical sensor uses a more sophisticated photomultiplier tube, which can capture the subtle changes in the smoke content in the chamber.If you choose other test devices, such as Dräger gas detection tube,it can carry out aviation standard smoke toxicity test, and it can be connected with the FTIR Fourier transform infrared device to complete the qualitative and quantitative analysis of smoke content.





Structure of Chamber

1, The NBS Smoke Density Tester is consist of cabinet, sample case, the radiation cone, ignition, light and measuring devices and other relevant control device component;
2, The structural design and control design considers the ergonomics; The test box is designed with full door design approach; lock design for easy one-time close the door; optimize operational processes;
3, The smoke density equipment has fully opened door for easy loading and unloading of samples and cleaning the box;
4, The front door hinge installation with Windows and window has block the activity window opaque visor to prevent light from entering the sealed box;
, The controller is located in the side of the box, easy to operate. When the door is closed,it does not affect the view controller;
6, Security flameout board is simple to replace with safer operation;
7, The smoke density test box is easy cleaning and coating chemical resistance.


Combustion System
1, The heating cone: Power 2600W, input temperature range of 0 ~ 1000 ºC, can be stable within ± 2 ºC within 50 minutes, providing irradiance 10KW / m²-50KW / m².
2, The use of mass flow controllers and differential pressure sensor can improve the accuracy of piezometers and automatic leak test.
3, Ignition with automatic ignition devices; flame length 30mm±5mm; in accordance with standards prescribed blue flame with a yellow tip.

Smoke density measurement system
1, Smoke density and temperature are digital display, viewing more convenient, more accurate values.
2, Photodetector assembly includes a photomultiplier, amplified filters, shutters, filters, neutral density filter, a lens, an optical window, and other components.
3, The light source is 6.5V incandescent light sources.
4, The installation of optical cartridge box at the top, light accepted as side-on photomultiplier, light transmission rate of 0.001% accuracy can be achieved.
5, Achromatic lens is provided with ASTM E662 Smoke density test equipment.
6, ISO 5659-2 Smoke Box adopts Japan imported Photomultiplier tubes.
7, High-gain low-noise amplifier control circuit.

Technical Specification
1, Light transmittance measurement range: 0 ~ 100%; Resolution is 0.00001%;
2, Accuracy of measurement is less than ± 2.5%;
3, Light 6.5 V incandescent light; 2200+100k color temperature incandescent lamp;
4, Optical system for transmittance as linear response, measuring at least accuracy + / - 3%;
5, Photomultiplier tube filled with partial data acquisition precision 0.5%;
6, Heater input temperature 0 ºC ~ 1000 ºC, accuracy of plus or minus 2 ºC;
7, Import K type armoured thermocouple accuracy of 0.1 ºC;
8, Mouth thermopile type heat flow meter range is 0 ~ 80 kw/m2; The thermopile type heat flow meter, heat meter accuracy is 1%, repeatability and 0.5%;
9, Propane gas flow meter range: 0 ~ 100 ml/min. Minimum pressure of 3.5 kPa plus or minus 1 kPa;
10, Air flow meter range: 0 ~ 1000 ml/min.
11, Fan provides the negative pressure in the cabinet at least 0.5 kPa;
12, Enclosure bear greater than the atmospheric pressure at least 1.5 kPa;
13, Water pressure gauge 1.5 kPa (150 mm water column);
14, Wall temperature measurement range: 0 ~ 100ºC±1ºC;
15, Window heater power 9 W;
16, Test the pressure inside the warehouse scope: < 1.5 kPa;
17, Radiation power range: 0 ~ 50 kW/m².

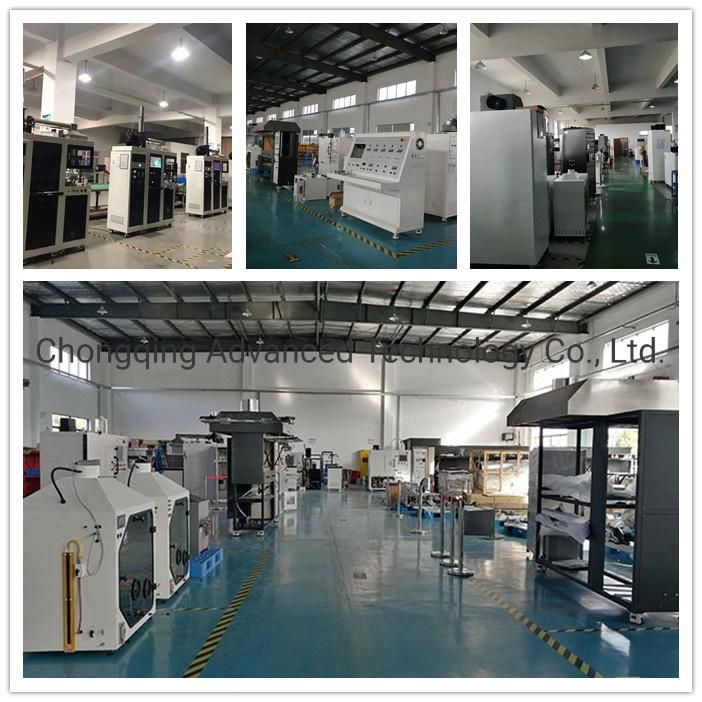

Factory overview

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 2 months .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
