• Model NO.：FT-LD Dew point tester
• Portable：Portable
• Operating Mode：Touch Screen
• Weight：3.5 Kgs
• Dew Point Value Range：-80 Oc~+20oc
• Moisture Value：0~19999 UL,L
• Dew Point Accuracy：+-0.5 Oc(-60 Oc~+20oc)
• Micro Water Accuracy：+-1.0oc(-80 ~-60oc)
• Dew Point Resolution：0.1oc
• Micro Water Resolution：1 UL,L
• Pressure Range：0 ~ 1.0 MPa
• Temperature：-20 ~+60oc
• Humidity：0~100%Rh
• Storage Temperature：-20~+80oc
• Response Time：63% Need 5s, 90% Need 45s (-60~ +20 Oc )
• Charging Time：4 Hours
• Certificate：CE, ISO, SGS
• Delivery Time：7 Days

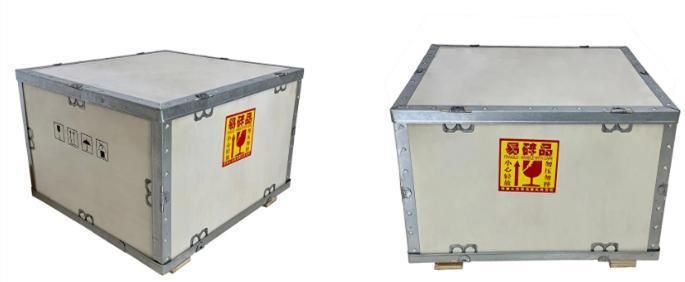

• Transport Package：in Standard Exportation Plywood Case
• Specification：250*150*300mm3
• Trademark：FUOOTECH
• Origin：Chongqing, China
• HS Code：9027100090
• Production Capacity：2000 PCS,Month

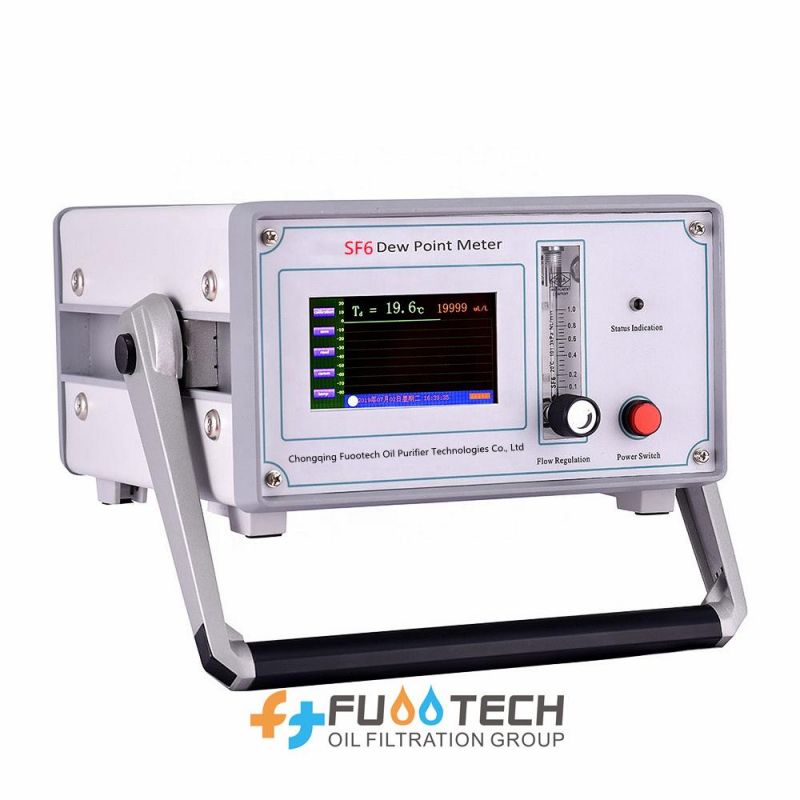

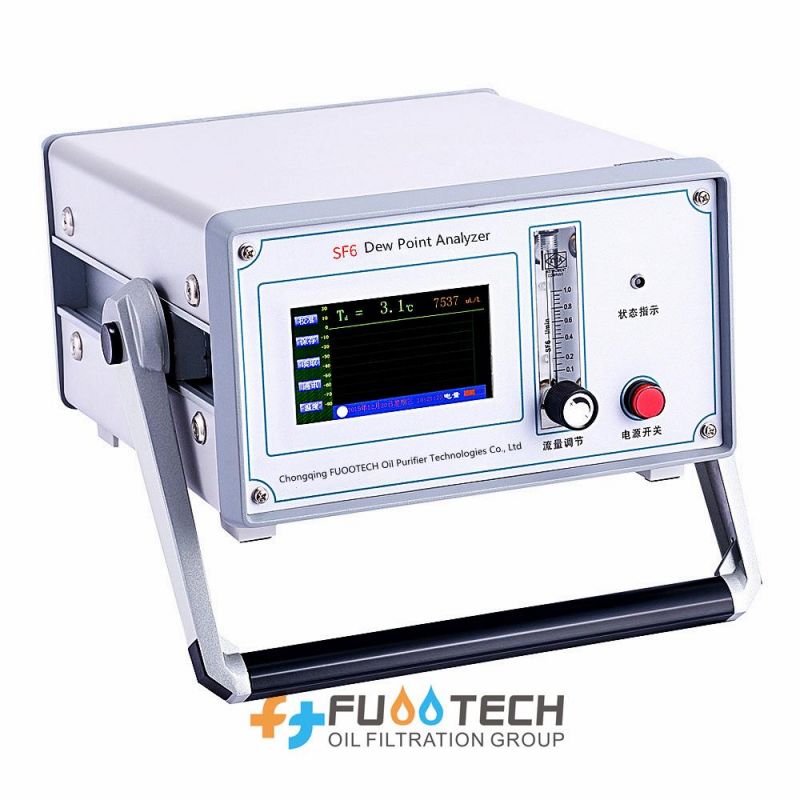

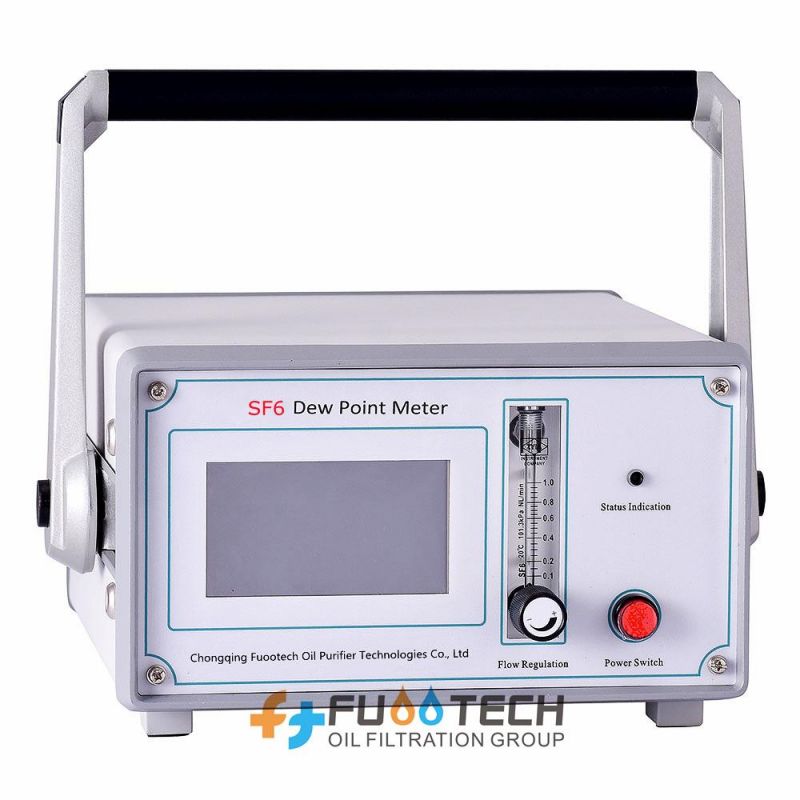

Detailed Photos

1. Portable design: The instrument is light, easy to carry and use.
2. Fast speed: the instrument can make test as soon as it starts up, fast to get the test results of the humidity.
3. Fast and save gas: only cost about 2L(101.2kPa) when testing.

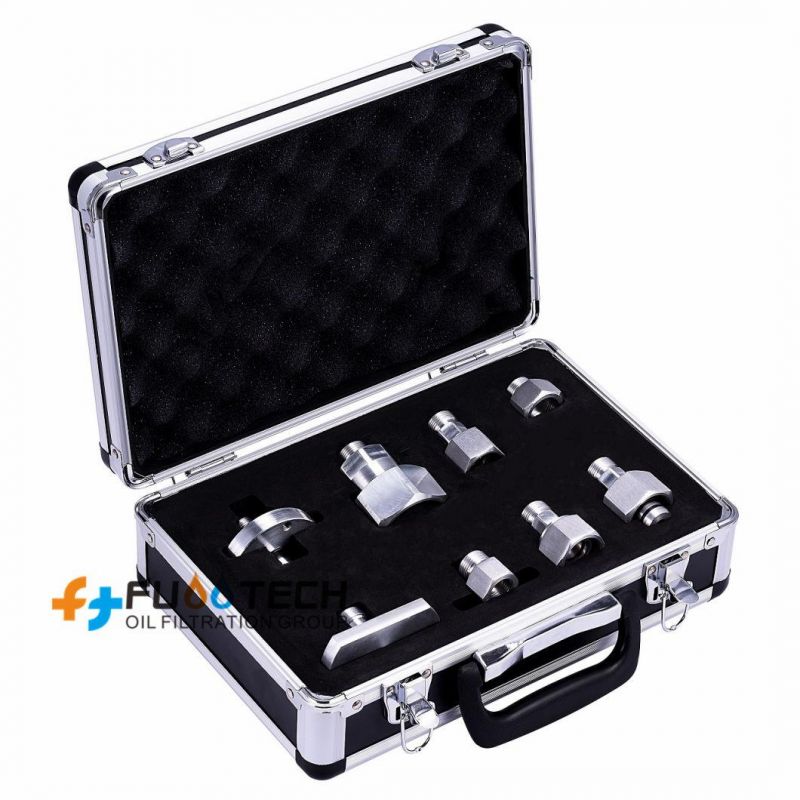

4. Self-lock joint: use the self-lock joint imported from German, safe and reliable, without gas leakage.
5. Data storage: high capacity, can store 50 groups test results at the most.

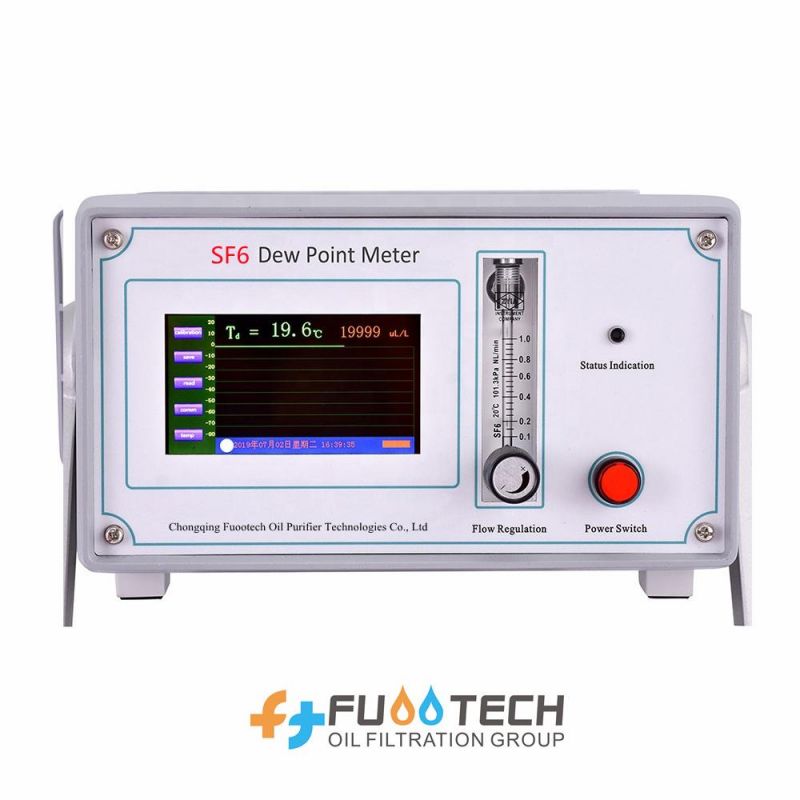

6. Clearly display: the dew point, micro-water(ppm), temperature, humidity, time and date, battery
capacity, etc, are displayed by LCD.
7. RS232 interface: can connect with printer and print the test results.

8. Built-in power supply: built-in 4Ah chargeable battery, filled one time can work for 10 hours.
9. High precision: Adopts imported with original packaging high-performance dew point sensor and high-speed 12 Σ-ΔAD analog-to-digital converter (ADC), the highest resolution reaches 0.1 ºC, fully meet the requirements of the actual measurement. The measurement results are accurate and reliable within full range. Wide measuring range, fast response, stable and reliable

10. High stability: Under severe interference conditions, the measurement data can be stabilized within ± 0.5 ºC, with excellent long-term stability, good repeatability.
