• Model NO.：SKY3000
• Type：Electrochemical Gas Analyzer
• Product Color：Black and Grey
• Outside Package：Aluminum Suitcase
• Gross Weight：2 Kg
• Alarm：Vibration and Flashing
• Transport Package：Aluminum Suitcase Packing
• Specification：365g
• Trademark：Safegas
• Origin：China
• HS Code：9027100010
• Production Capacity：1000 Pieces, Day

Basic Info.

Model NO. SKY3000 Type Electrochemical Gas Analyzer Product Color Black and Grey Outside Package Aluminum Suitcase Gross Weight 2 Kg Alarm Vibration and Flashing Transport Package Aluminum Suitcase Packing Specification 365g Trademark Safegas Origin China HS Code 9027100010 Production Capacity 1000 Pieces/ Day

Product Description

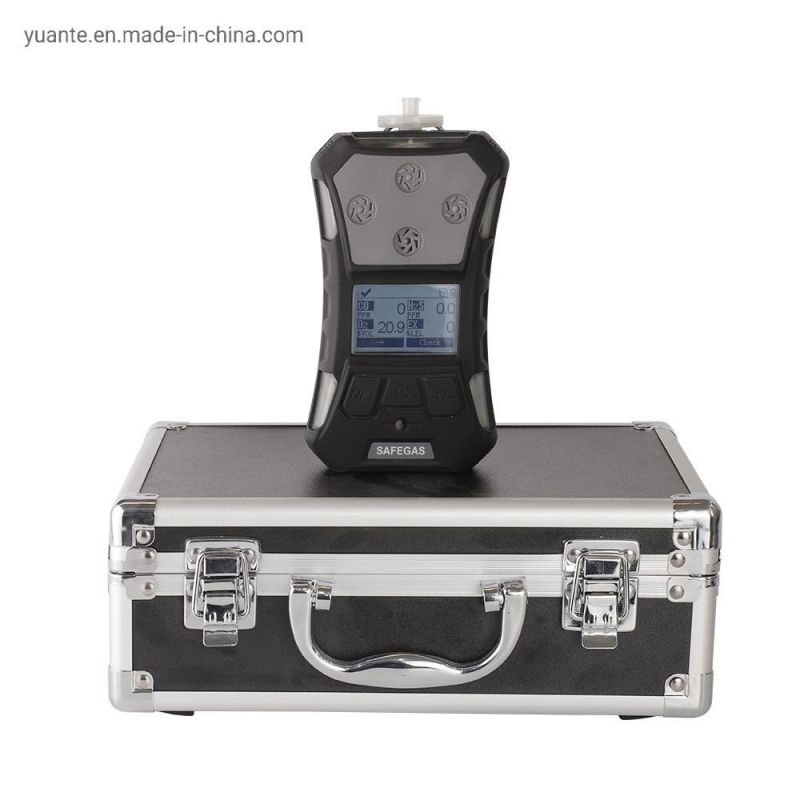

1000ppm VOC Handheld Gas Detector Analyzer For Industrial Environment Explosion-proof

Product Description

Product overview


SKY3000 series is a portable gas detector which can show real-time data and send alarms when the reading reaches the set value. The device is a suction and diffusion dual purpose instrument. When the pump fails to work, it can automatically switch to the diffusion sampling mode. It is also with back clip so user can conveniently carry. It is IECEX, ATEX explosion-proof certified and its protection level reaches IP67. It is with datalog function. Which is not only able to store data on device but also transfering data to PC by USB wire.



Product characteristic

1.Rugged and durable
2.Explosion-proof circuit design, safe and reliable
3.Multiple security protection
4.Simultaneous measurement of multiple gases, multiple numerical display
5.Simultaneous measurement of multiple gases, multiple numerical display
6.Powerful function, more user-friendly operation





Specificiation

Sampling method	pump suction & diffusion dual-use type
Gas type	TVOC/VOC
Measure range	0-100,200,1000,2000ppm,5000ppm
Response time	≤30 seconds
Precsiion	≤±2%F.S
Language	Chinese/English
Automatically test and calibrate after power-on	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched
Disaply	monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight	The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record	Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours	More than 15 hours in continuous pumping mode
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade	IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga
Certification (EU regulations)	2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX)
Protection grade	IP67
Working temperature	-20ºC~+50ºC
Humidity	0~90%RH(no condensation)
Environmental pressure	86~106Kpa
Size	157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight	365g (including battery, belt clip and filter)

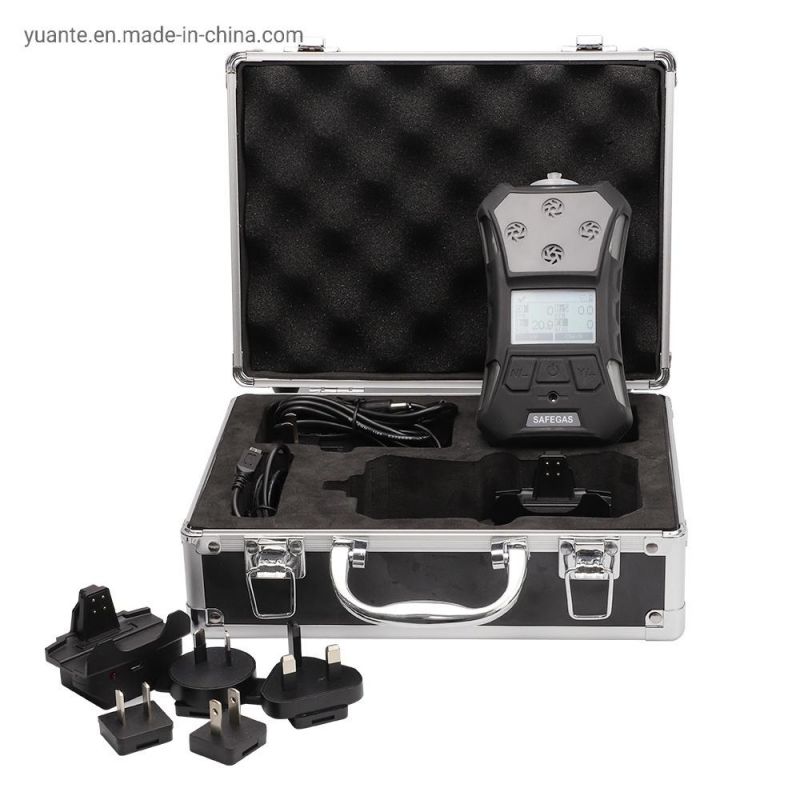

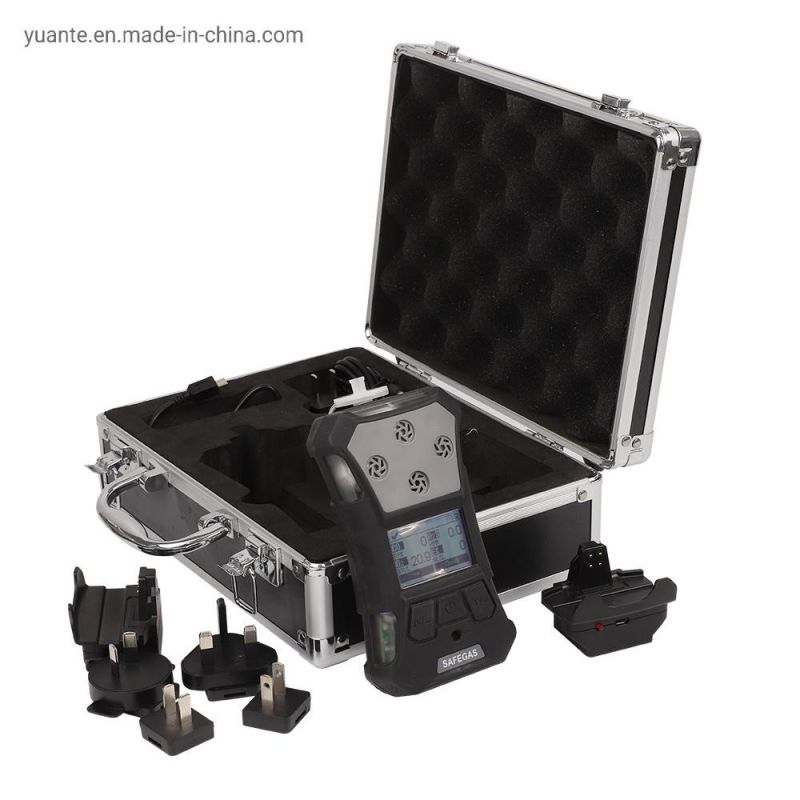

Package



Company information



Why choose us?
A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market C Quality: international top brands sensor and IC /100% production test, make sure a good qualityD Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety and health
