Skz1050c Carbon Monoxide Hydrogen Sulfide Oxygen Methane Carbon Dioxide Co H2s O2 CH4 CO2 Multi Gas Analyzer Gas Analyser Gas Monitor System Gas Leak Detector
SKZ International Co., Ltd.- After-sales Service：12 Months Warranty
- Warranty：12 Months Warranty
- Brand：Skz
- Customized：Customized
- Portable：Portable
- Certification：CE
Base Info
- Model NO.：SKZ1050C-CO H2S O2 CH4 CO2
- Gas：Co H2s O2 CH4 CO2
- Type：Electrochemical Gas Analyzer
- Measure Range：Co(0-1000ppm)H2s(0-100ppm)O2(0-30%Vol)
- Measure Range2：CH4(0-100%Lel)CO2(0-5000ppm)
- Resolution：0.1ppm:(0-1000ppm),0.01ppm:(0-100ppm)
- CE Certification：Exia II CT4, IP66
- Response Time：Less Than 10s
- Resolution2：0.01(0-30%Vol) 0.01(0-100%Lel),1(0-5000ppm)
- Transport Package：Customed Foam Inner to Fixed The Detector, Aluminu
- Specification：27X23X11 cm
- Trademark：SKZ
- Origin：China
- HS Code：9027100090
- Production Capacity：50000PCS,Year
Description
Gas Detected
CO H2S O2 CH4 CO2
Detection principle
Catalytic combustion principles(CH4)
Infrared principles(CO2)
Electrochemical principles(CO,H2S O2)
Sampling Method
Pump- suction, flow up 1L/min, pump suction size ten stalls adjustable
Data logger
100,000 sets of data can be stored, storage interval available set, minimum 5S, can be browse
Measure Range
Resolution
0.1ppm:(0-1000ppm),0.01ppm:(0-100ppm)0.01%VOL:(0-30%VOL)
0.01%LEL:(0-100%LEL),1ppm(0-5000ppm)
Precision
2% FS
Response Time
≤ 10S
Repeatability
≤ ± 1%
Zero shift
≤ ± 1% (F.S / Year)
Operating language
Support in English
Temperature
-40 ºC ~ 70 ºC
Explosion-Proof
Exia II CT4
Alarm mode
Sound, light, vibration
Dimensions
205*75*32mm
Recovery Time
≤ 10S
Linearity error
≤ ± 1%
Display
LCD
Gas unit
multiple gas unit
Humidity
0-95% RH
Degree of protection
IP66
Operating time
100 hours (off pump)
Weight(net)
300g
Packaging & Shipping
Customer show

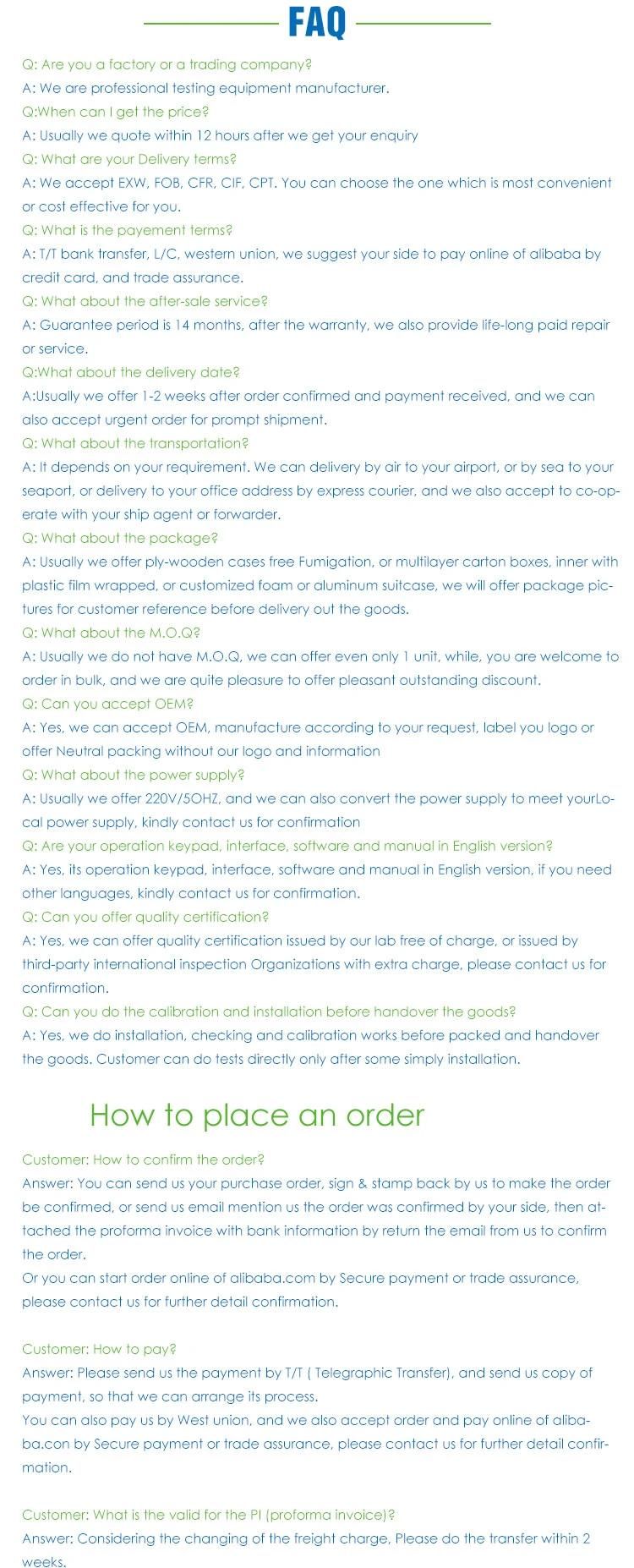

FAQ
