• Model NO.：SKZ1050F-dust
• Measure Range：1.0-100mg,M3
• Measurement Relative Error：<10%
• CE Certification：CE Marks
• Power：220V
• Ambient Temperature：-25~ 85 Degree
• Ambient Humidity：<90%
• Protection Level：IP65
• Transport Package：Customed Foam Inner to Fixed The Detector, Aluminu
• Specification：40*40*30 cm
• Trademark：SKZ
• Origin：China
• HS Code：9027100090
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. SKZ1050F-dust Measure Range 1.0-100mg/M3 Measurement Relative Error <10% CE Certification CE Marks Power 220V Ambient Temperature -25~ 85 Degree Ambient Humidity <90% Protection Level IP65 Transport Package Customed Foam Inner to Fixed The Detector, Aluminu Specification 40*40*30 cm Trademark SKZ Origin China HS Code 9027100090 Production Capacity 50000PCS/Year

Product Description

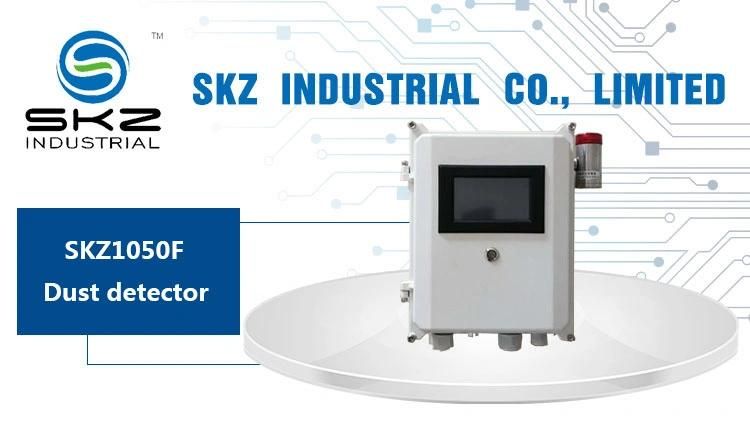

touch screen on-line dust concentration detector space environment dust concentration sensor testing measurement

touch screen on-line dust concentration detector space environment dust concentration sensor testing measurement to test dust concentration

If you are not sure how to choose the right size or you have any questions,
please contact our 24-hour online customer service.



Features:

1. Real-time online continuous monitoring, fast response testing, wide range of applications
2. Instrument integrated design, built-in power supply, electronic circuit, maintenance free
3. Wide application range, high sensitivity, anti-interference, not easy to particle contamination, high reliability
4. Large screen LCD display, LCD with blue backlight
5. With real-time curve function, the curve directly observes the trend of dust concentration
6. Continuous monitoring of dust concentration, real-time alarm such as dust concentration exceeding standard

Technical parameter:

1. Measurement range: 0~100mg/m3
2. Measurement relative error: ≤10%
3. Power: 220V
4. Ambient temperature: -25°C~ 85°C
5. Ambient humidity: <90%
6. Protection level: IP65
7. Output: DC4-20mA
8. Alarm output: sound and light alarm
9. Dimensions: 300 × 250 × 100mm
10. Weight: 3kg

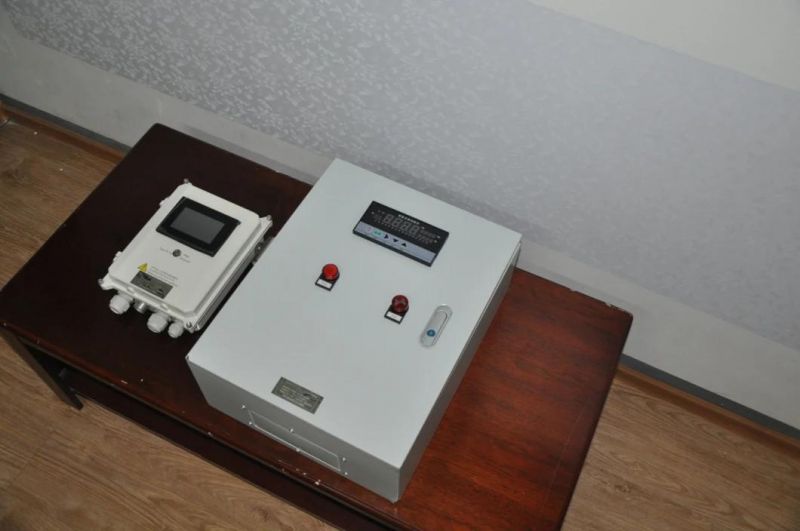

Customer show

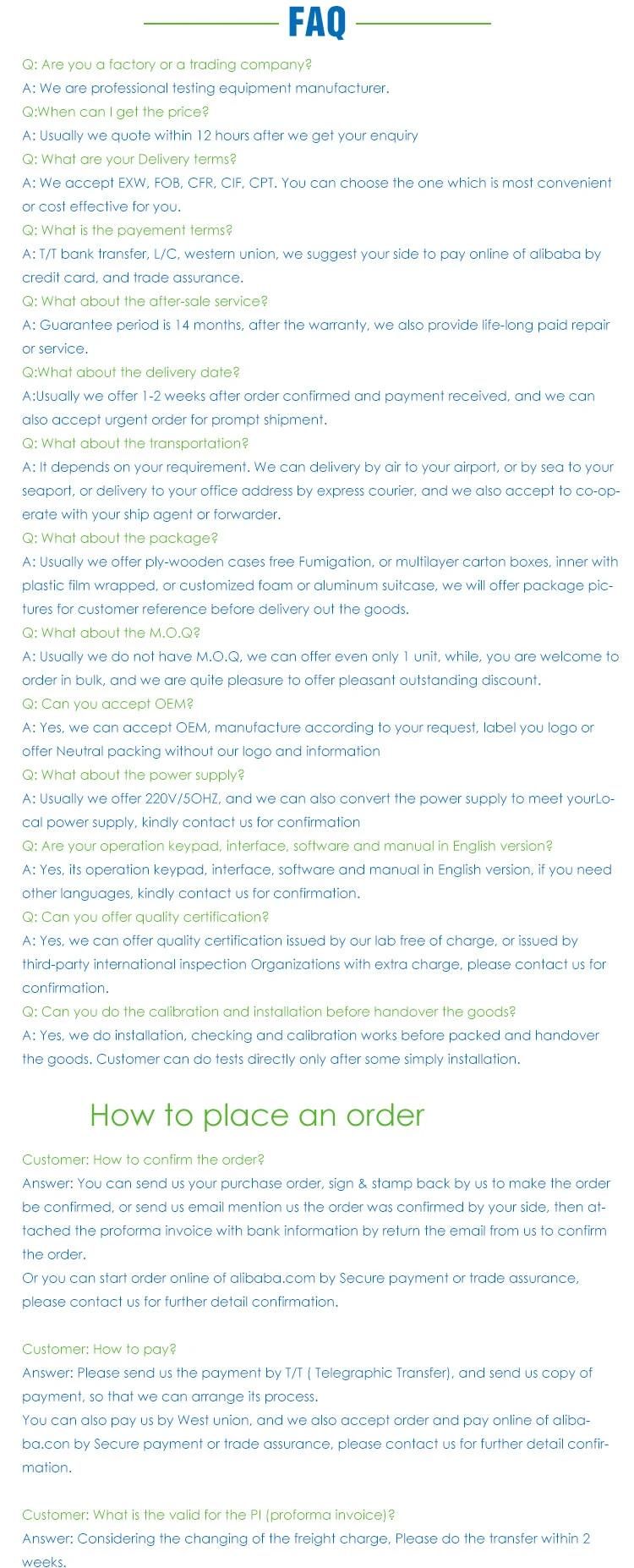

FAQ
Company Information
