• Model NO.：BH-485-PH
• Transport Package：Carton
• Specification：SGS, CE, ISO9001
• Trademark：BOQU
• Origin：Shanghai, China
• HS Code：9027809990
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. BH-485-PH Transport Package Carton Specification SGS, CE, ISO9001 Trademark BOQU Origin Shanghai, China HS Code 9027809990 Production Capacity 50000PCS/Month

Product Description

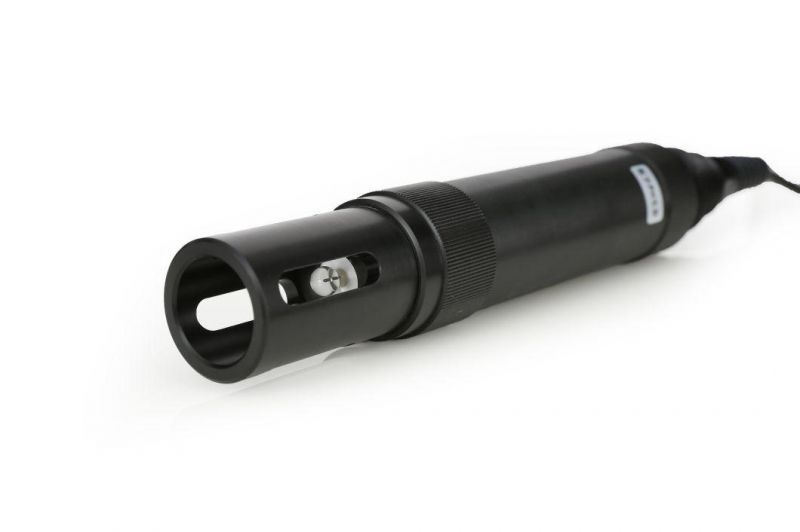

BH-485-pH Digital pH Sensor

• Summary

BH-485 Series of online pH electrode, adopt electrode measuring method, and realizes the automatic temperature compensation in the interior of the electrodes, Automatic identification of standard solution. Electrode adopt imported composite electrode, high precision, good stability,long lifetime, with rapid response, low maintenance cost, real-time online measurement characters etc.. The electrode using standard Modbus RTU (485) communication protocol, 24V DC power supply, four wire mode can very convenient access to sensor networks.


• Characters

·The characteristics of industrial sewage electrode, can work stably for a long time
·Built in temperature sensor, real-time temperature compensation
·RS485 signal output, strong anti-interference ability, the output range of up to 500m
·Using the standard Modbus RTU (485) communication protocol
·The operation is simple, the electrode parameters can be achieved by remote settings, remote calibration of electrode
·24V DC power supply.


• Technical specifications

Model	BH-485-pH
Parameter measurement	pH,Temperature
Measure range	pH:0.0~14.0 Temperature:(0~50.0)ºC
Accuracy	pH:±0.1pH Temperature:±0.5ºC
Resolution	pH:0.01pH Temperature:0.1ºC
Power supply	24V DC
Power dissipation	1W
communication mode	RS485(Modbus RTU)
Cable length	Can be ODM depend on user's requirements
Installation	Sinking type, pipeline, circulation type etc.
Overall size	230mm×Diameter30mm
Housing material	ABS
