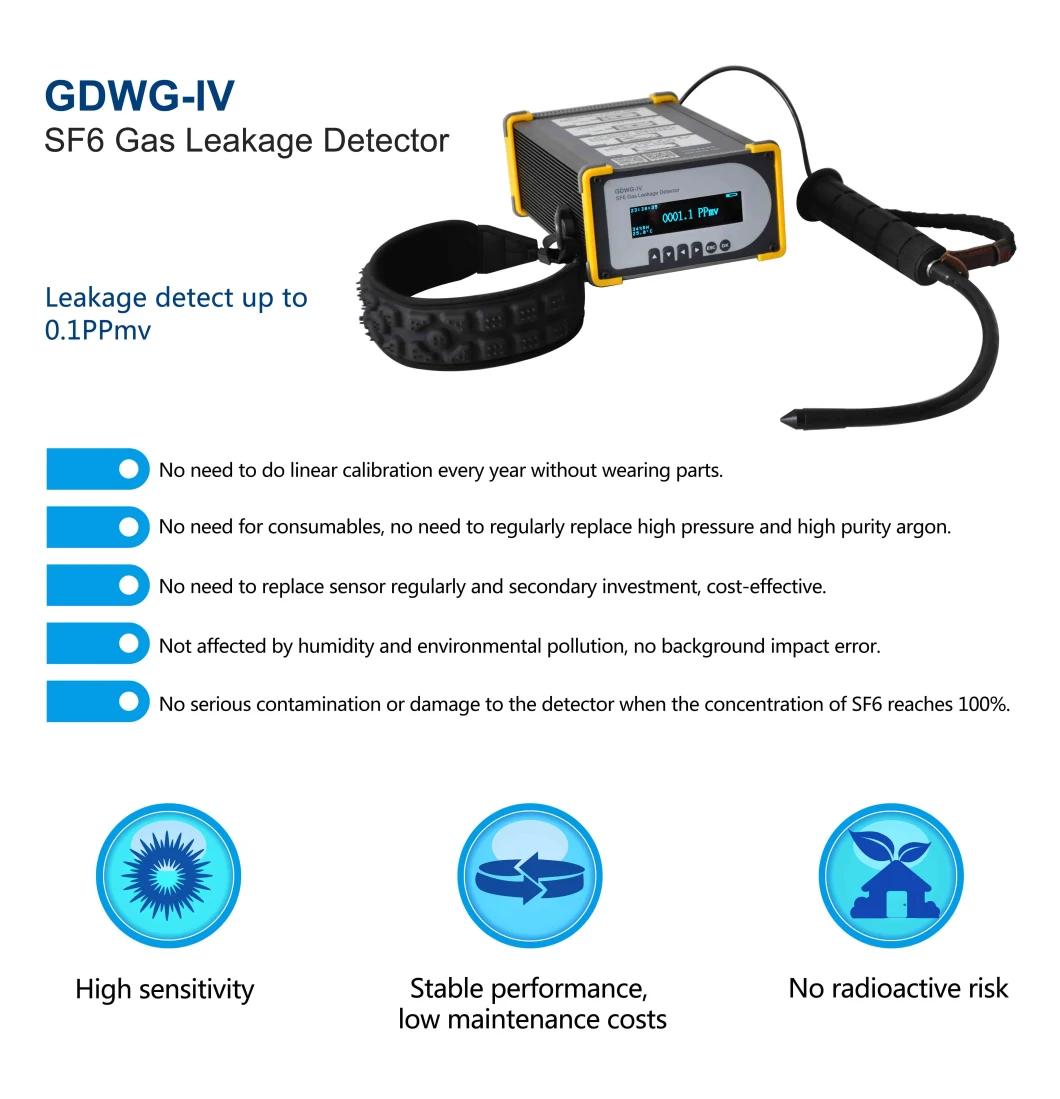

GDWG-IV NDIR Infrared Type SF6 Gas leakage Detector
HV Hipot Electric Co., Ltd.- After-sales Service：yes
- Warranty：1 year
- Measurement Range：0-1000ppmv
- Storage Temperature：--20 to +60ºC
- Operation Temperature：-20 to +50ºC
- Working Voltage：220VAC±10%,50Hz Or Built-in Li-battery
Base Info
- Model NO.：GDWG-IV
- Sampling mode：Built-in electromagnetic diaphragm pump
- Transport Package：Wooden Case
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：Wuhan China
- HS Code：9027100090
- Production Capacity：1500PCS,Year
Description
Measuring principle
Non-dispersive infrared sensor (NDIR)
Resolution
0.1ppmv
Measuring range
0-1000ppmv
Accuracy
±2%FS (0-1000ppm). Even the measuring range is over 5000ppm, the instrument will not be damaged.
Repeat-ability error
≤±1%
Sensitivity
0.1ppmv (can be customized to 0.01ppm, for option)
Response time
≤3s
Recovery time
≤5s
Stability
≤±20ppm, more than 1000hours
Zero shift
≤±1%(F.S/year)
Linear error
≤±1%
Storage temperature
-20~+60ºC
Operation temperature
-20~+50ºC
Environment humidity
0-95%RH
Operation humidity
0-95%(non-condensing)
Sampling mode
Built-in electromagnetic diaphragm pump, automatic slot-in type, flow up to 1L/min.
Working voltage
220VAC±10%,50Hz Or Built-in Li-battery, continuous working 12hours after full charge.
Peak current
<700mA
Average power
<2W.
Operation air pressure
800~1150hPa.
Dimension
140*235*83mm
Weight
About 1.5kg
