DIN Standard Dynamic Cone Penetrometer
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Hammer:10kgs
- Falling Distance:50cms
- Package Dimension:1080X310X150mm
- Weight:22kgs
- Transport Package:Metal Carrying Case
- Specification:Standard: DIN 4094 LRS10 uni env 1997-3
Base Info
- Model NO.:16-T0012,B
- Trademark:C-Tech
- Origin:China
- HS Code:90248000
- Production Capacity:100set,Month
Description
Basic Info.
Model NO. 16-T0012/B Trademark C-Tech Origin China HS Code 90248000 Production Capacity 100set/MonthProduct Description
DIN Standard Dynamic Cone PenetrometerModel 16-T0012/B DIN Standard Dynamic Cone Penetrometer
FEATURES:
? Portable, hand-operated equipment.
? To obtain a direct evaluation of the "in-situ" strength properties of road pavement layers: the DCP has been
correlated with CBR (California Bearing Ratio - Kleyn 1975).
? Field calibration of a portable dynamic cone penetrometer was made to determine a penetration resistance
relationship with the standard penetration resistance.
? The penetrometer has been found useful in the inspection of footing foundations and for light fi eld exploration
where the standard penetration range of limits is generally known
? One year warrantee against any manufacturing defects.

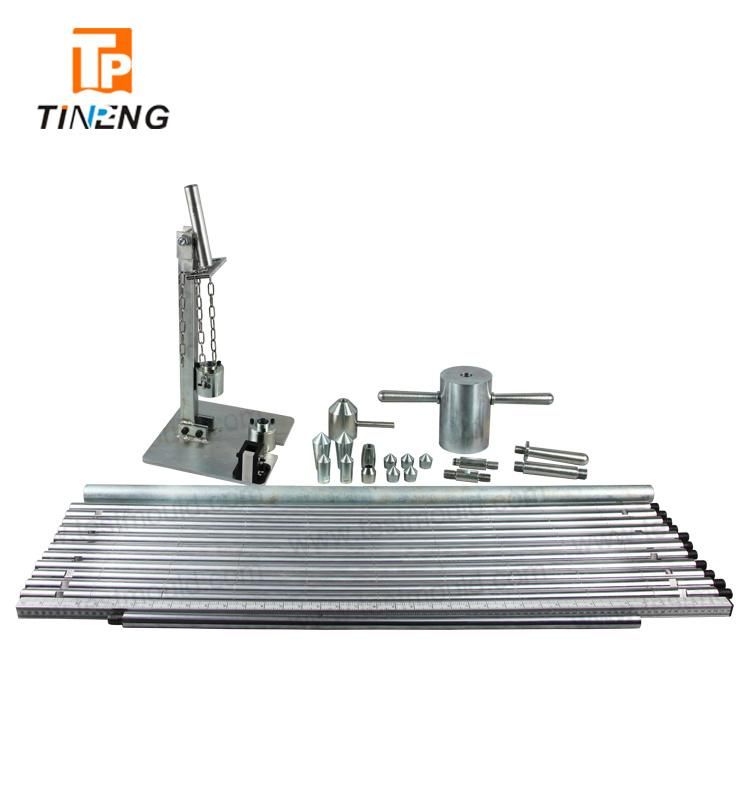

COMPRISES:
16-T0012/B1 Hammer, 10 kg
16-T0012/B2 Anvil with rod and full travel impact plug, 6 kg
16-T0012/B3 11 threaded sounding rods dia. 22 mm x 1000 mm long
16-T0012/B4 Drive conical point, 500 mm2 area, 25.2 mm dia, 90° angle
16-T0012/B5 Drive conical point, 1000 mm2 area, 35.6 mm dia, 90° angle
16-T0012/B6 Base plate with seating for scale
16-T0012/B7 Rule graduated in mm, 1 m long
16-T0012/B8 Lever device for rod extraction

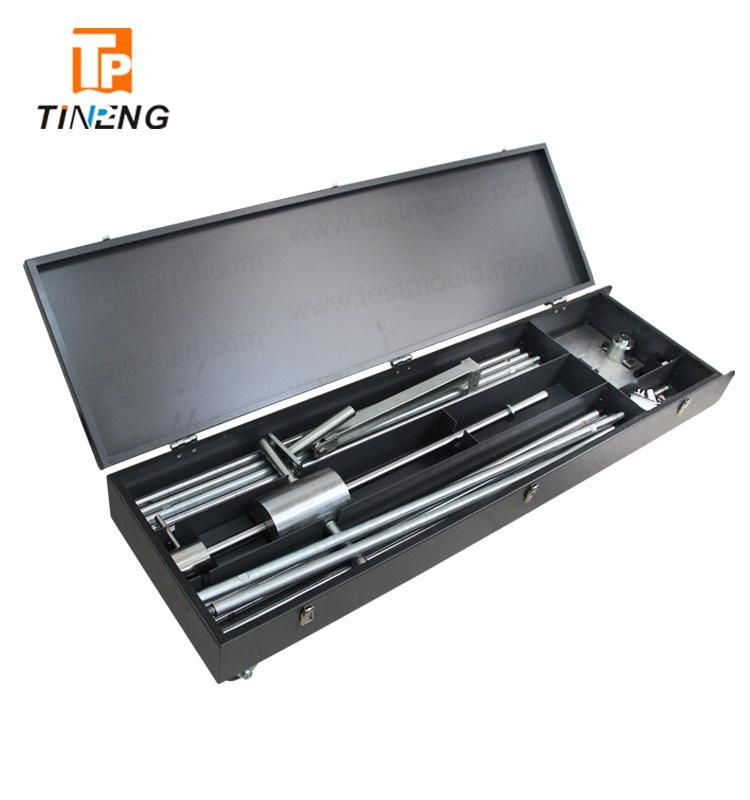

16-T0012/B9 Alloy aluminum carrying case
Dimensions: 1080x310x150mm
Weight: 22kgs
ACCESSORIES AND SPARE PARTS: (need to be ordered seperately)
16-T0012/A7 Extension rods: 400 mm, dia. 16mm
16-T0012/B10 Spare expendable conical point, 1000 mm2 area, 35.6 mm dia, 90° angle
