• Model NO.：SF-TAQU
• Type：Concentration Meter
• Name：Carbon Cup
• Shape：Square and Round
• Application：to Measure Carbon and Silicon Content of Molten IR
• Color：Browinish Yellow
• Transport Package：Cartons and Pallet
• Specification：1.1*1.1*0.12
• Trademark：SEFU
• Origin：China
• HS Code：902790000
• Production Capacity：200000PCS,Month

Basic Info.

Model NO. SF-TAQU Type Concentration Meter Name Carbon Cup Shape Square and Round Application to Measure Carbon and Silicon Content of Molten IR Color Browinish Yellow Transport Package Cartons and Pallet Specification 1.1*1.1*0.12 Trademark SEFU Origin China HS Code 902790000 Production Capacity 200000PCS/Month

Product Description

              The expendable thermal analysis cup

 Description :
The expendable carbon cup (thermal analysis cup) is for determining the Carbon equivalent, % Carbon and % Silicon in molten iron by using the principle of thermal analysis, Well-graded and clean sand, thermoplastic phenol resin and Urotropine (resin hardener) are dry mixed at the temperature of 500 degree Celsius to produce "resin bonded sand". This resin bonded sand is shot into the pre-heated mold with having the K-type thermocouple tube inside. At the temperature of 250 degree Celsius, the cup is formed by the resin bond. This cup is coated inside with silica for being thermal insulation and then filled in the cup with 15 gram of Tellurium. By means of drying this coated cup at the temperature of 80 degree Celsius for 4 hours, the carbon cup is ready for the casting control.


Product Detail

Shape	Square or Round
Color	Browinish Yellow
Mouth inside length	36*36mm
Mouth outside length	52*52mm
Bottom outside length	45*45mm
Thickness	8mm
Application	to measure carbon and silicon content of molten iron
Product Keywords	thermal analysis sampling cup,te cup,sampling thermal cup



Application :

 1. With Tellurium grain, the complete white iron solidification can be met2. Fast thermocouple response3. Precisely measuring the temperature of melting iron sample4. Provide uniform cooling curve5. High accuracy of the content of Carbon and Silicon6. Improve the casting process control

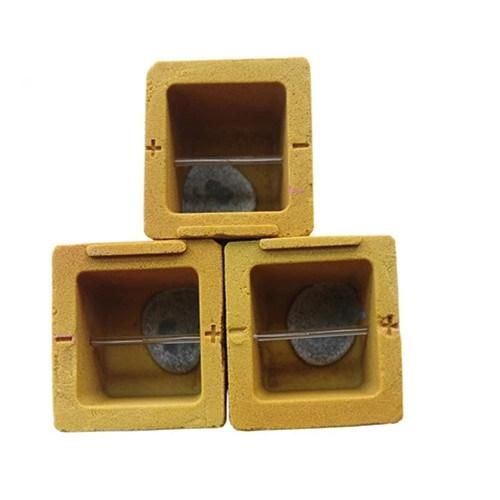

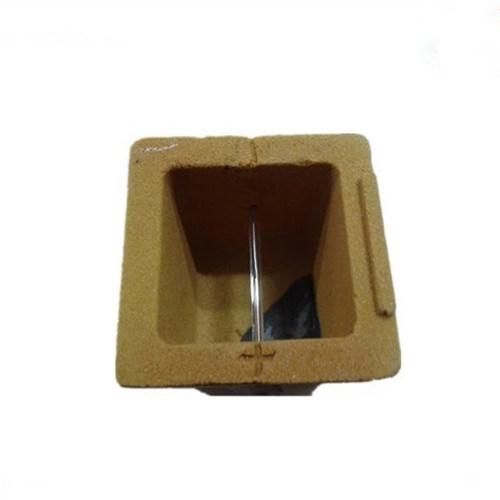

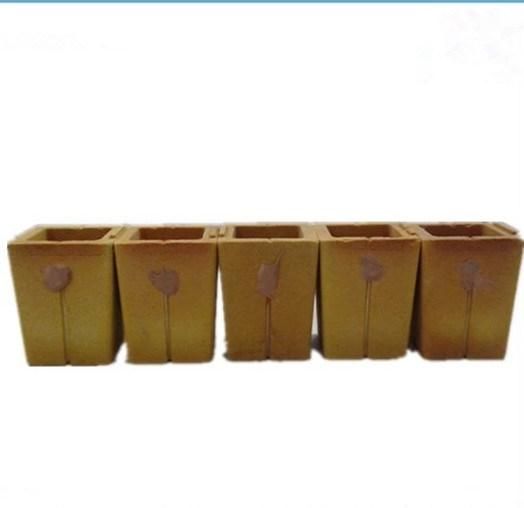

Product Show:





Shipping
Lead time: 10-15days after signed the contract


Packing

1.  Inside packing: Filters are put in small box and Layered packaging. There is cardboard between each layer.
2. Outside packing: Cartons&Pallets. Three layer corrugated cartons and export special pallets .
3. The mark on cartons can be designed according to the customer's request.
